Transformer
Assembly
CPU PC Board
Power
Cord Assembly
Case
Top
Top
Covsr
Shield
Keyboard
Ground Plane Insulator
Case
Bottom

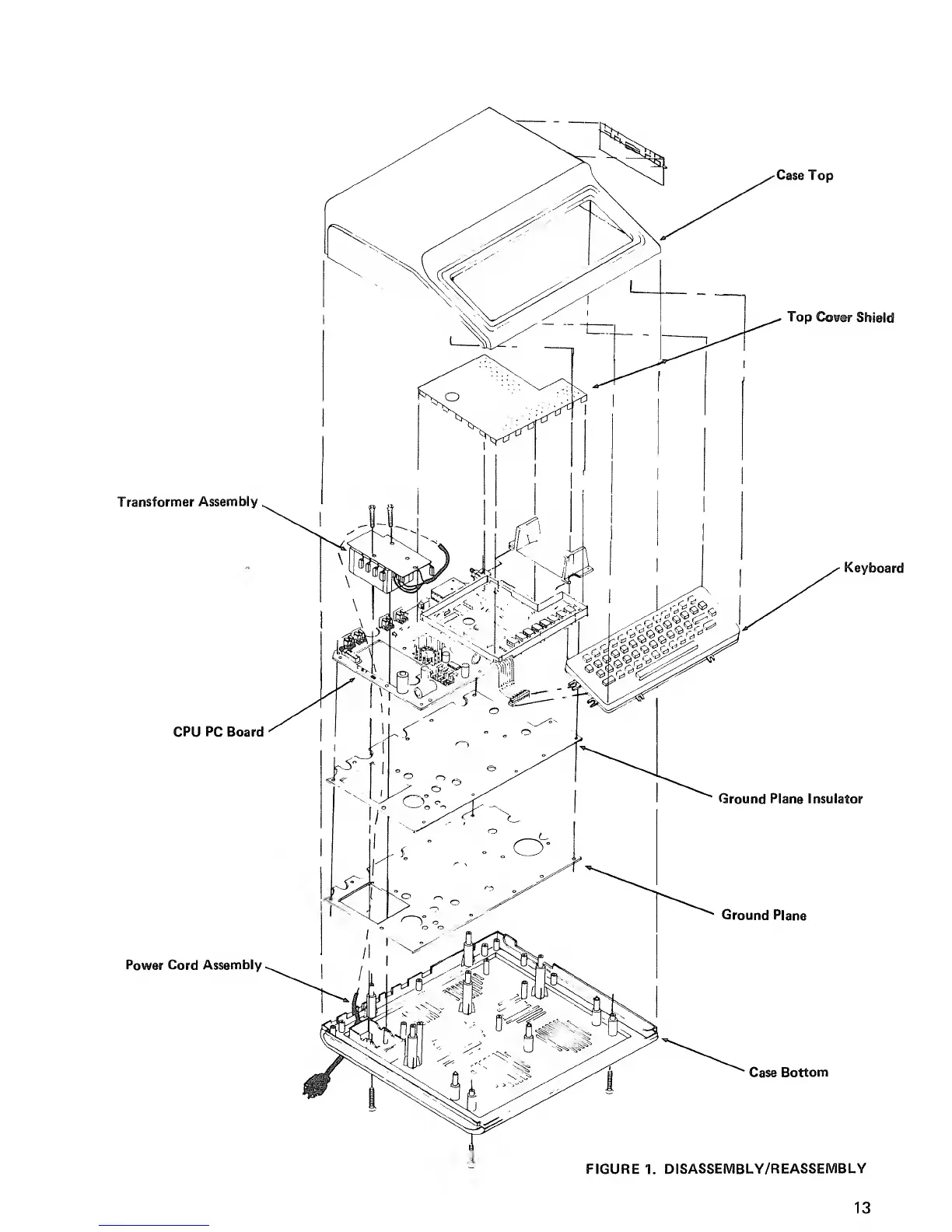

FIGURE
1.
DISASSEMBLY/REASSEMBLY
13
