Radio Shack 21-534 User Manual

5
1. Turn off your radio. Then disconnect the antenna from
the radio and plug it into
ANTENNA
on the back of the
meter.
2. Plug the coaxial cable into the radio’s antenna jack and
into
TRANSMITTER
on the back of the meter.

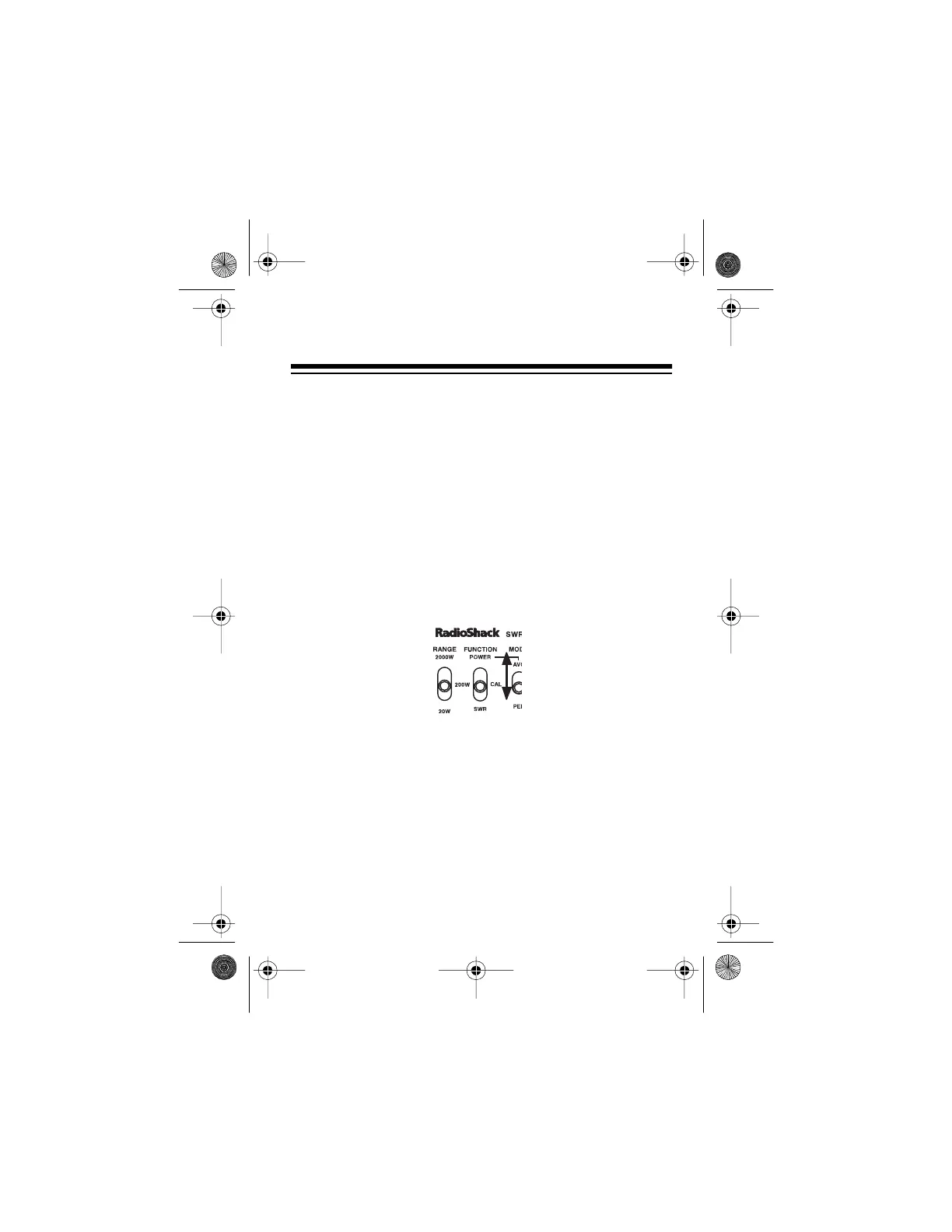

CALIBRATING THE METER/
MEASURING SWR
1. Turn on your radio. Then set
FUNCTION
on the front of the
meter to
CAL
.
2. Select a channel or frequency on your transmitter and
hold down its transmit key. Do
not speak into the micro-
phone.
21-534.fm Page 5 Thursday, August 5, 1999 3:53 PM
