Connecting Inputs

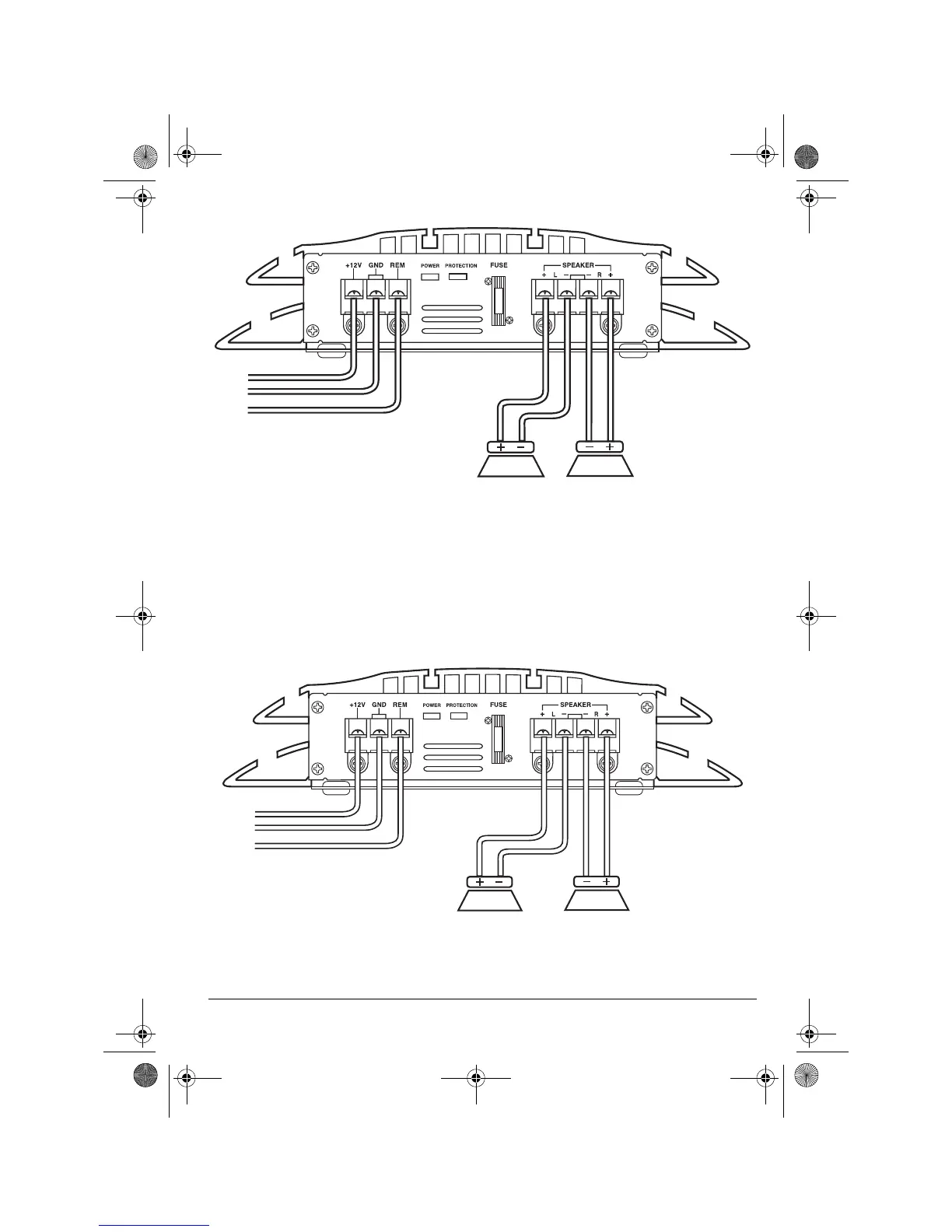

Connecting Two Speakers
1. Use a screwdriver to connect the left speaker’s positive (+) wire to the amplifier’s
SPEAKER L (+
)
terminal.
2. Use a screwdriver to connect the left speaker’s negative (–) wire to the amplifier’s
SPEAKER L (–)
terminal.
3. Repeat Steps 1–2 to connect the right speaker’s positive (+) and negative (–) wires to the
amplifier’s
SPEAKER R (+)
and
SPEAKER R (–)
terminals.
Connecting a Subwoofer
1. Use a screwdriver to connect the subwoofer’s positive (+) wire to the amplifier’s
SPEAKER
L (+)
or
SPEAKER R (+)
terminal.
Right Speaker
Left Speaker
SubwooferSubwoofer
Or
