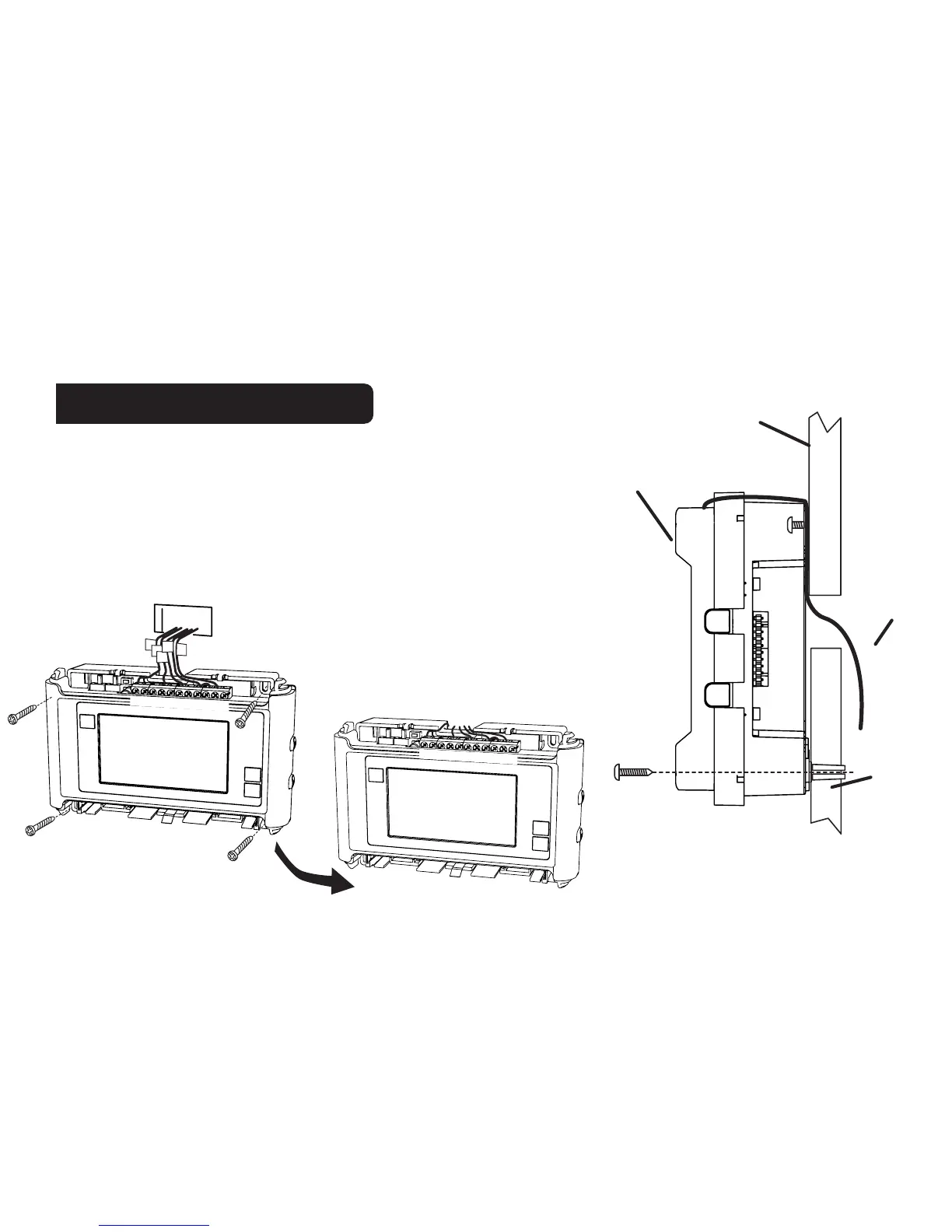

Mount the CT30 to wall
1. Hold the CT30 against the wall, with the wires coming over the
top above terminal block. The CT30 will cover the hole in the wall.
2. Position CT30 for best appearance.
3. Attach the CT30 to the wall with the screws provided.
4. If you are mounting the CT30 to sheet rock or if you are using
the old mounting holes, use the plastic anchors provided.
5. Mark rst and drill a 3/16-in.
(4.8mm) hole for the insert at each
screw location, then mount the unit.
Screw to wall
Place wires like this
Wall
Wires
Wall
anchor
M O D E
FA N
CT30
C
B
O
W
W2
Y
Y2
RH
RC
G
A
F
ro
m
F
urn
ace
C
W
Y
R
H
G
C
B
O
W
W2
Y
Y2
RH
RC
G
A
