Radio Thermostat CT30 Install Guide

PG 6
PG 7

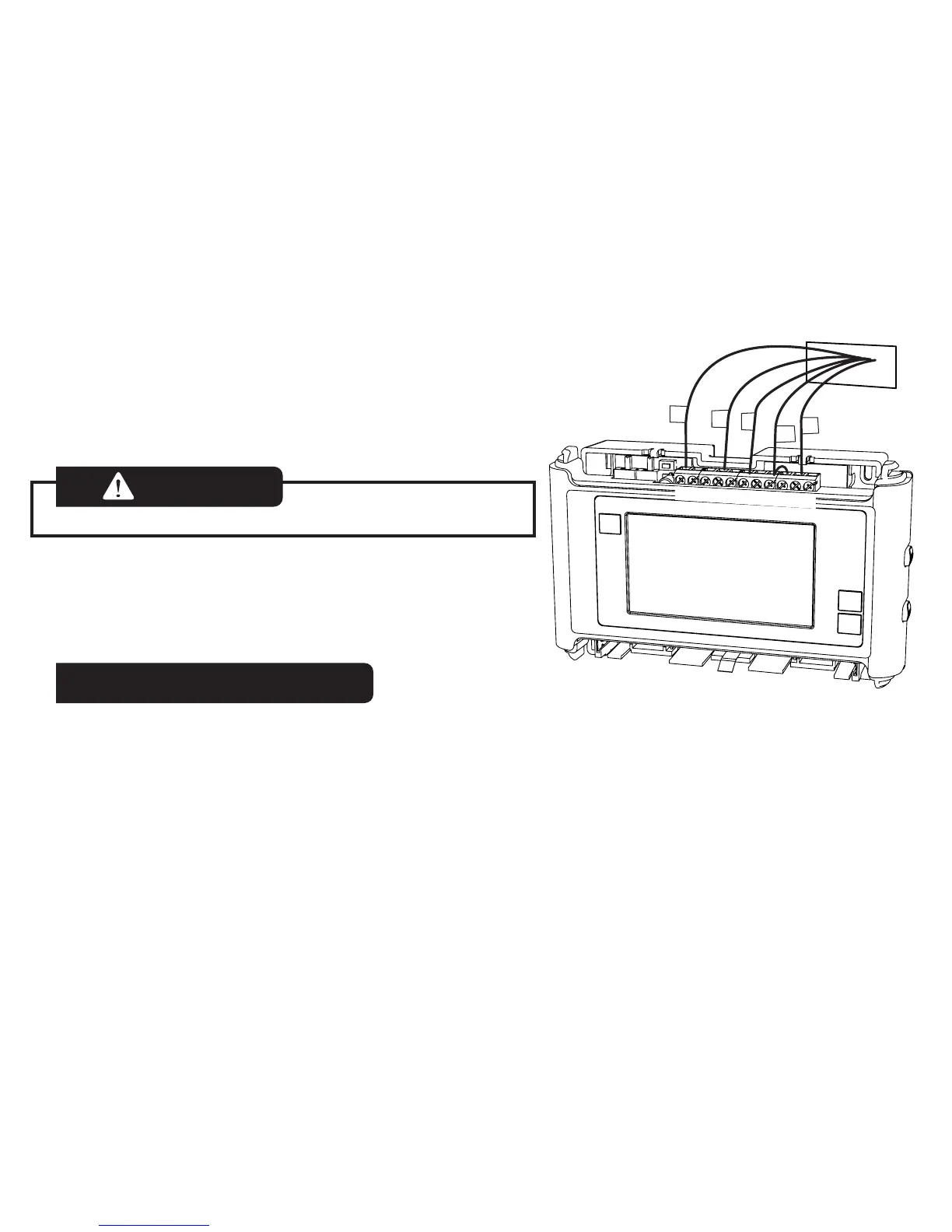

• “Fan out” wires as illustrated with CT30 below the wall
opening. As in the example: fan out the wires so that the
C wire is above the C terminal, the W above the W. This
allows the CT30 to t snug to the wall.
Caution
Do not allow wires to touch each other or parts on thermostat.
• Wires will position behind the CT30 and up over the
terminal area.
• Do not bunch wires behind the CT30. Feed any slack
back into the wall opening.
Connect Your Wires
• Connect labeled wires only to a terminal with the same letter label.
• Insert the wire in the terminal well and tighten the screw securely.
NOTE: If you wish you can mount the CT30 to the wall rst, and then connect the wires.
• The CT30 can be externally powered with a power source rated from 12V to 24V, AC or DC, at
300ma or greater. If used, connect to the C and RH terminals (no polarity).
C
B
O
W
W2
Y
Y2
RH
RC
G
A
F
ro
m
F
urn
ace
RH
Y
G
C
W
