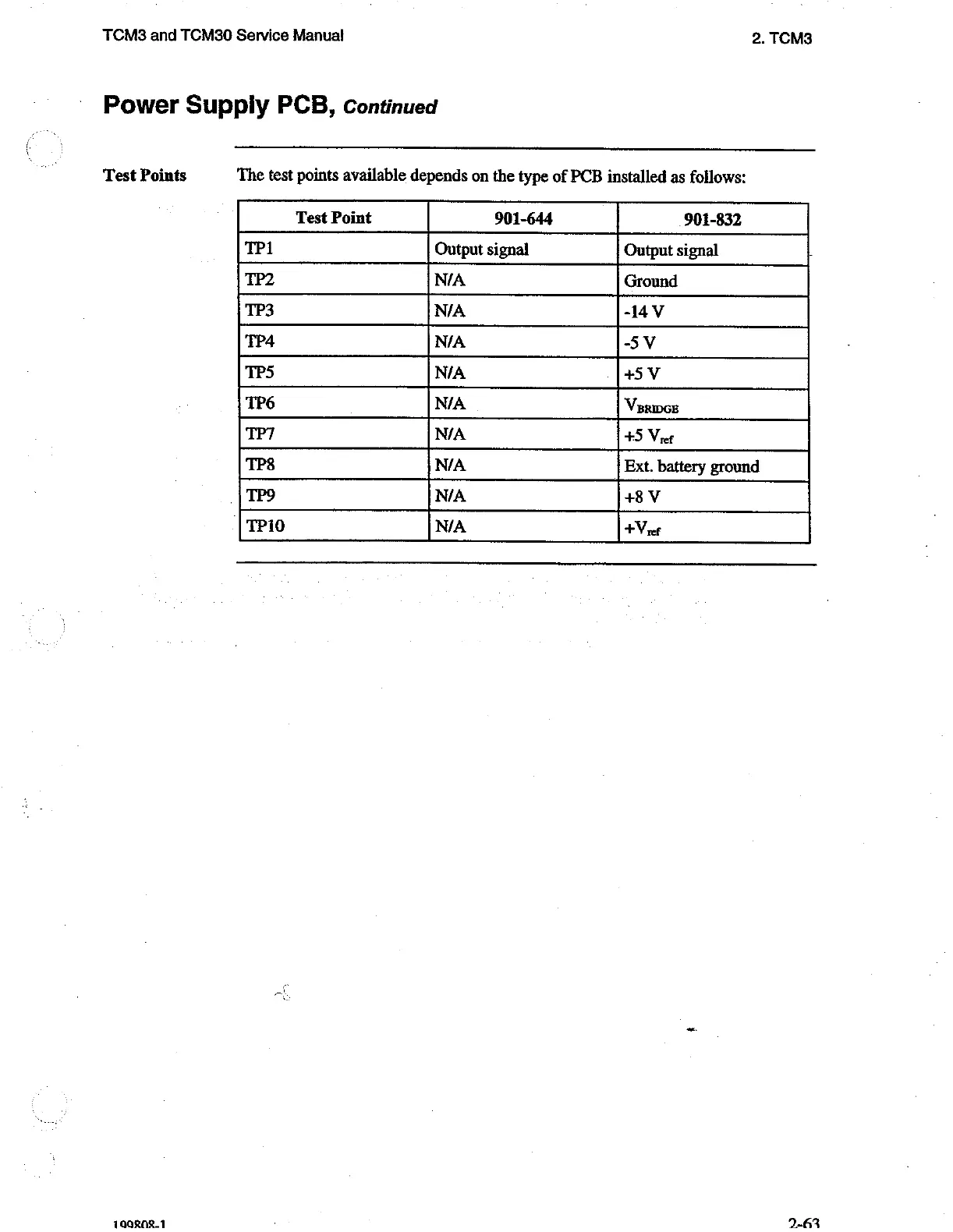

TCM3 and TCM30 Service Manual
Power Supply PCB, Continued
Test Points
109&nR-1
2. TCM3
The test points available depends on the type of PCB installed as follows:
Test Point 901-644 901-832
TP1 Output signal Output signal
TP2 N/A Ground
TP3 N/A -14V
TP4 N/A SV
TPS N/A +5 V
TP6
N/A
VBRIDGE
TP7 N/A +5 Veer
TP8 N/A Ext. battery ground
_| TP9 N/A +8 V
‘| TP10 N/A TVr
2-63
