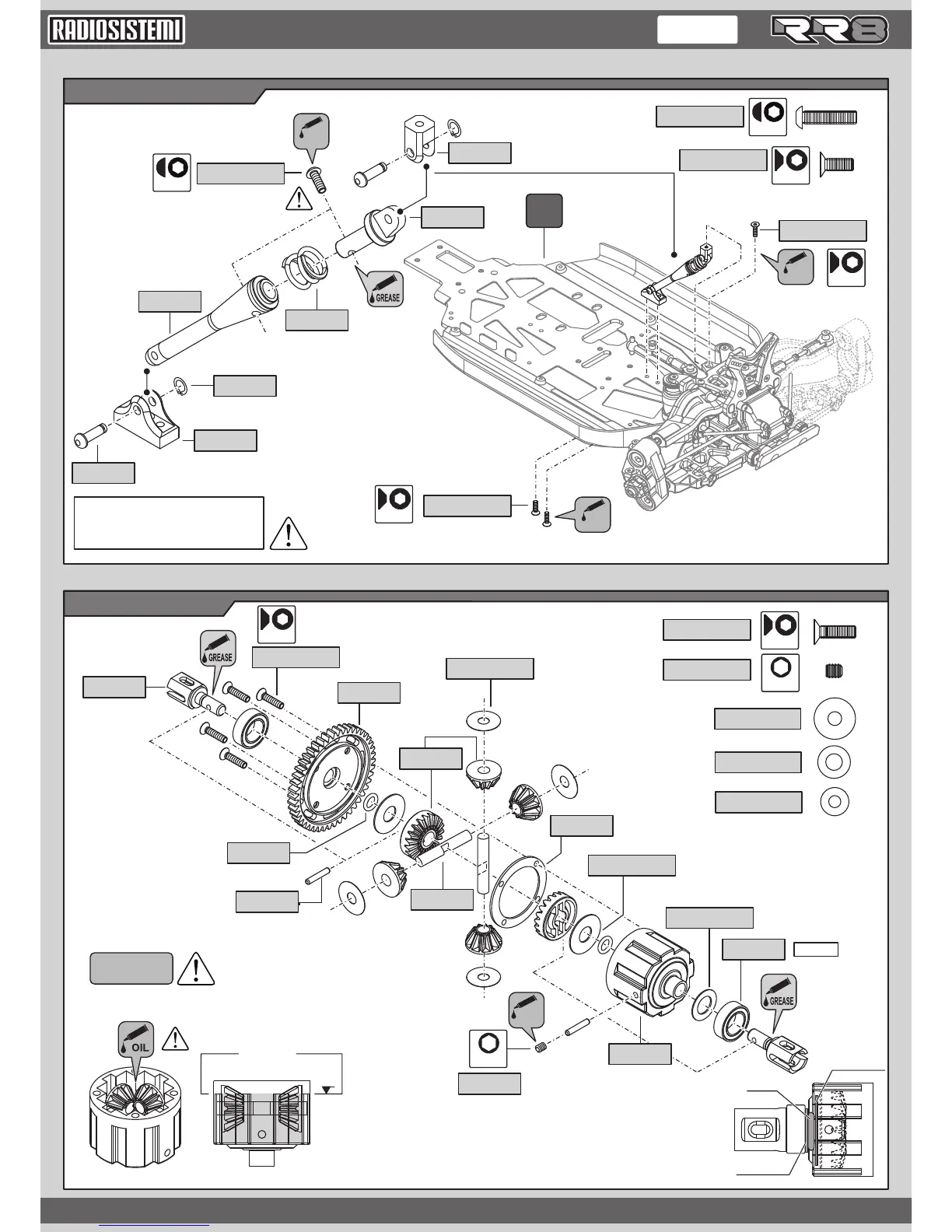

Radiosistemi rr8 - Chassis Structure and Center Drivetrain; Front Chassis Brace Installation; Center Differential Assembly

Front Chassis Brace
Center Differential
Centrale
Central
Oil: 5.000 CPS
Oil Level
x1
TPSCE3X8ZN
M3x8
LOCTITE
X3
TPSCE3X8ZN
M3x8
M3x12
M3x12
X1
X1
TPSCE3X8ZN
M3x8
X2
Note: You can run the brace in flex mode
with the screw turned out, or you can lock
the brace by turning the screw in.
X4
0133064
M3x4
TPSCE3X10ZN
0133071C
ROND4X10X03
0133008C
0133008H
0133008F
ROND6X18X02
0133067
0133008D
STEI3X4
X1
M3x10
TPSCE3X10ZN
X2
X4
X1
M3x4
M3x10
0133003C
LOCTITE
LOCTITE
05
0133003M
TBCE3X12ZN
0133003B
ANE23
0133003
0133003D
0133003A
X1
TBCE3X12ZN
X4
X1
ROND8X10X01
O-Ring
6x18 Shim
8x10 Shim
8X14X4
0.1MM
0.2MM
46T
0133008G
STEI3X4
BAG 06BAG 06
0606
0133008B
ROND6X18X02
ROND8X10X01
ROND4X10X03
GLUE
