Rage Comet & Comet ‘R’ Maintenance Guide
Issue 2.0 October 2014

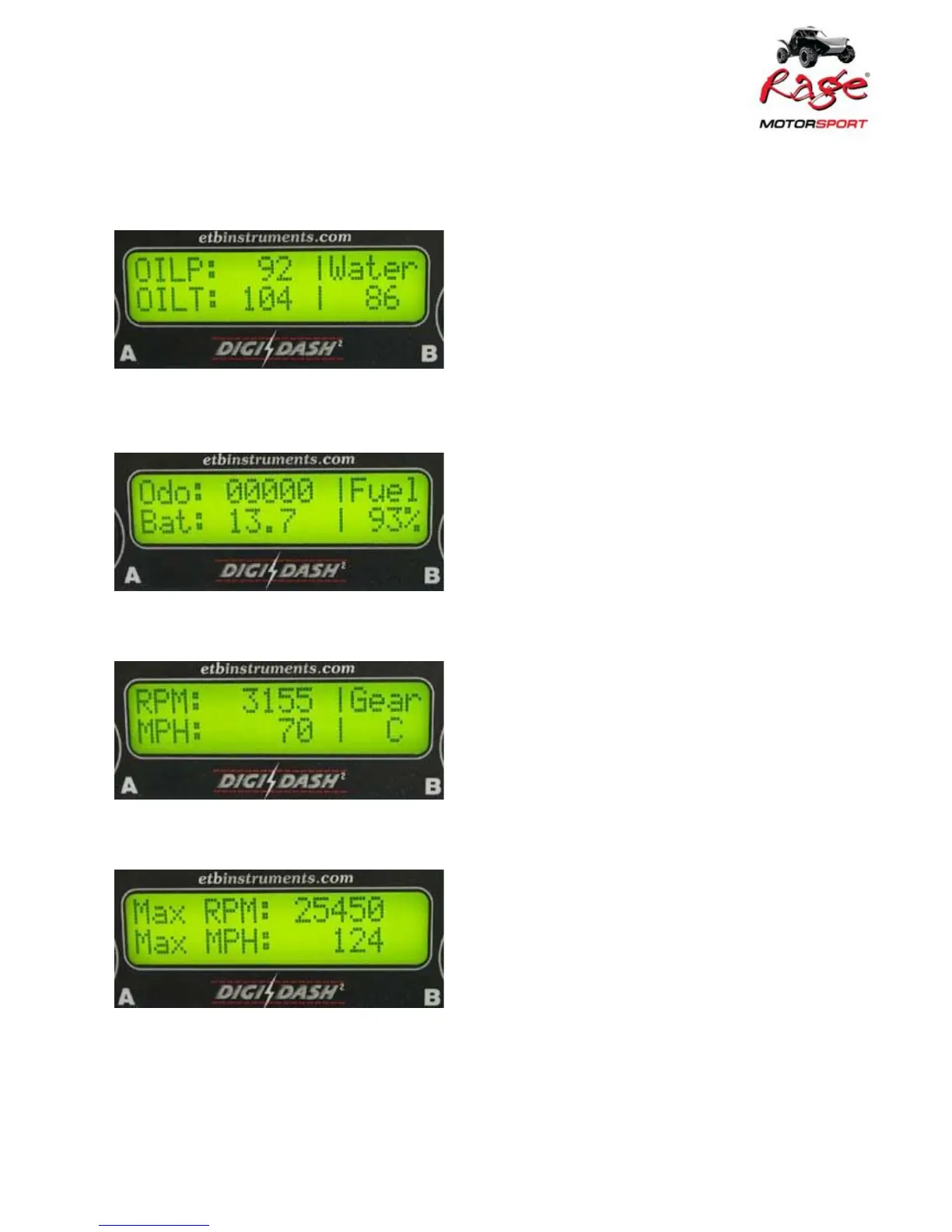

Please note that the screens shown below are a selection and not the
complete number of screens..........
• Water Temperature, Oil Temperature and Oil Pressure are shown on this
screen. You can configure this LCD screen to also display Speed and Engaged
Gear if desired (as shown in the above picture).
• The LITE has an Odometer (user selectable for Miles or kilometers), Battery
Voltage and Fuel Tank Level (indicated as a % remaining in the fuel tank) as
shown on this LCD screen.
• This screen shows RPM, Speed and Engaged Gear. The Gear indicator will show
C for Clutch Down, N for Neutral (Bike engines), and 1st, 2nd ,3rd, 4th, 5th and
6th.
• The DD2-LITE will store maximum recorded values for the following parameters:
water temp; oil temp; oil pressure; speed; rpm and battery volts.
