The splash pad system should be plumbed as shown in the following diagram:
NOTE: The pump should be located a minimum of 10 feet (3m) away from the splash
pad area and no more than 30 (9m) feet from the holding tank.
NOTE: The 3-way valve must be fully open to the bypass side and closed to the splash
pad side when starting up the system. Once the system is running, gradually open the 3-
way valve to the splash pad side until desired pressure is achieved.
*
Rain Deck recommends using a qualified, licensed plumber during this stage of installation.
Your Splash Pad Product and Installation Resource

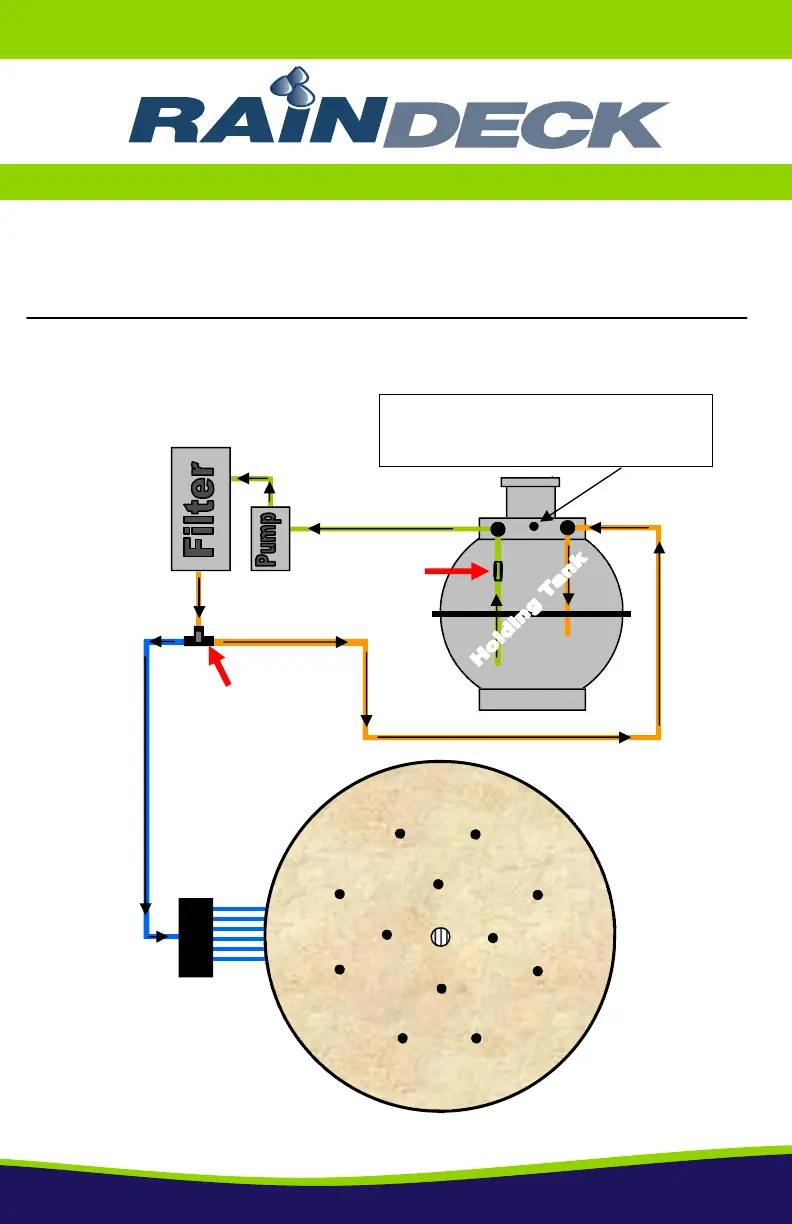

Pump/Filter Plumbing
Dedicated 1/2” water supply for water leveler. A
shut-off valve should be plumbed in an accessible
location for winterizing or emergency shut-off.
SUCTION LINE
TO SPLASH PAD
CHECK VALVE
3-WAY VALVE
MANIFOLD
RETURN TO TANK / BYPASS
To Next Page
