4.2 OTHER LATCHING SOLENOIDS
1. Cut off the quick couplings and strip around 15 mm
of insulation from the ends of each cable.
2. Connect the black wires coming from each solenoid
to the black cables coming from the controller. Secure
all cable couplings with waterproof connectors.
3. Connect the red wires coming from each solenoid
to the corresponding station wire (blue cable) coming
from the controller. Station numbers are identifi ed by
the tag on the cable. Secure all cable couplings with
waterproof connectors.

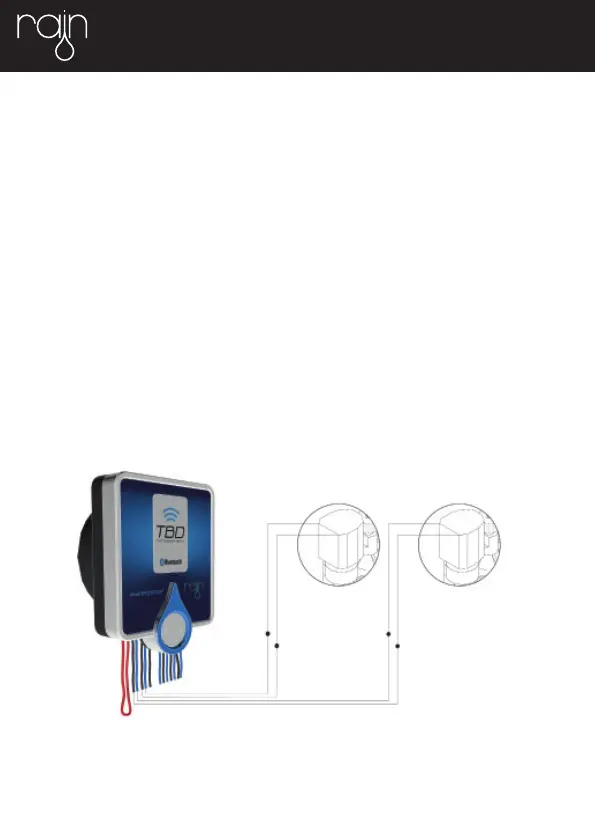

Cavo blu
Cavo blu
Cavo rosso
Cavo rosso
Cavo nero
Cavo nero
Cavo neroCavo nero
