Rainbow Carnival Clubhouse User Manual

3180
3175
4147
H32
H164
H32
H164
3175
H154
4147
H1
H9
H146
H1
H9
H146
H164
H164
N33
N33
H154
*NOTE: If installing wood roof, skip to next Step.

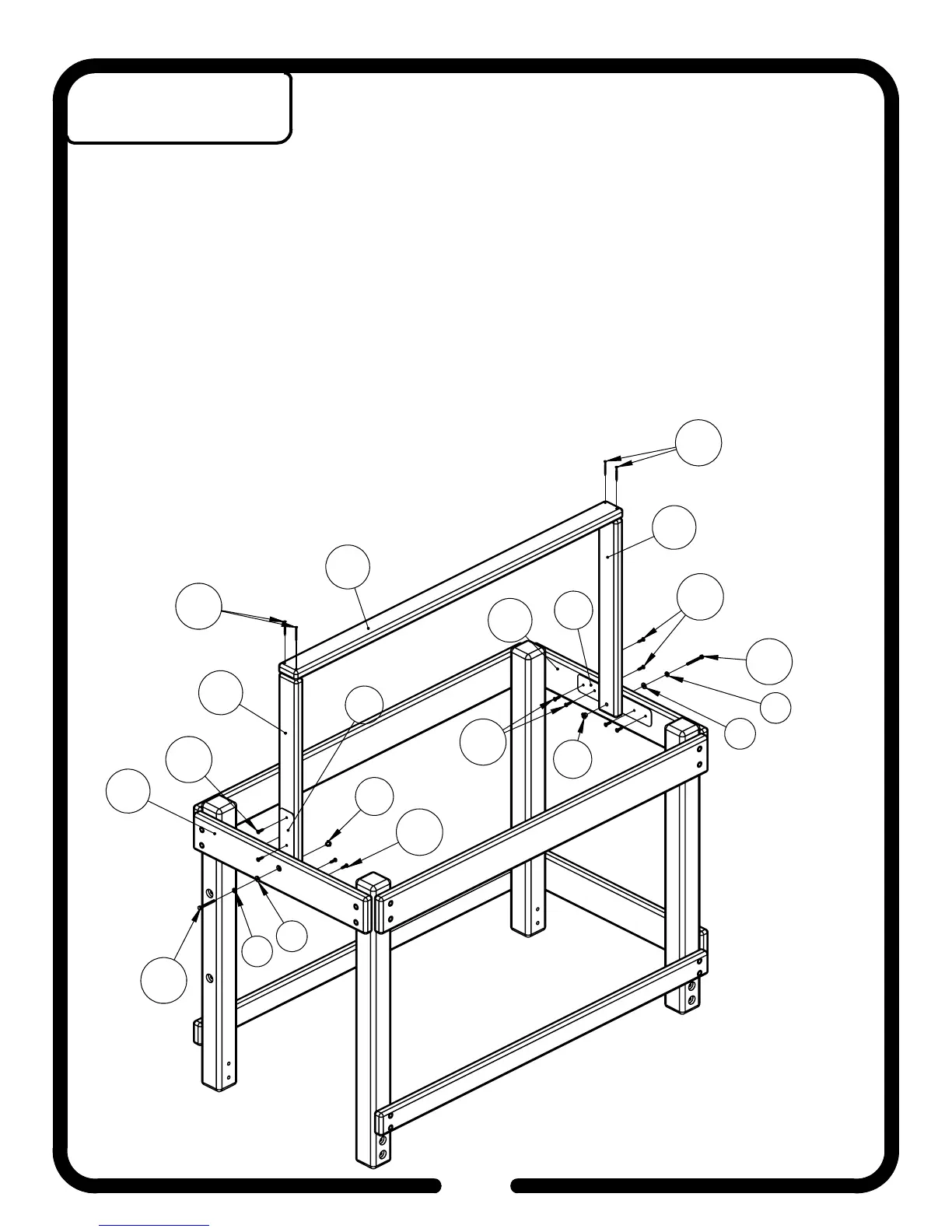

1. Using a small hammer, pound 1/4" Hardware (H32) into holes in Short Penthouse Center Posts
(3175) .
2. Attach T-Brackets (N33) and Short Penthouse Center Posts (3175) through center holes in Tarp
Facias (4147) using 1/4" Hardware (H1) (H9) (H32) (H146) .
3. Ensure Short Penthouse Center Posts (3175) are plumb and finish securing T-Brackets (N33) using
#14 Hardware (H164) .
4. Flush Tarp Board (3180) with outside faces of Short Penthouse Center Posts (3175) and attach
using #8 Hardware (H154) .
98
Step 57
Penthouse Tarp Board
Installation
