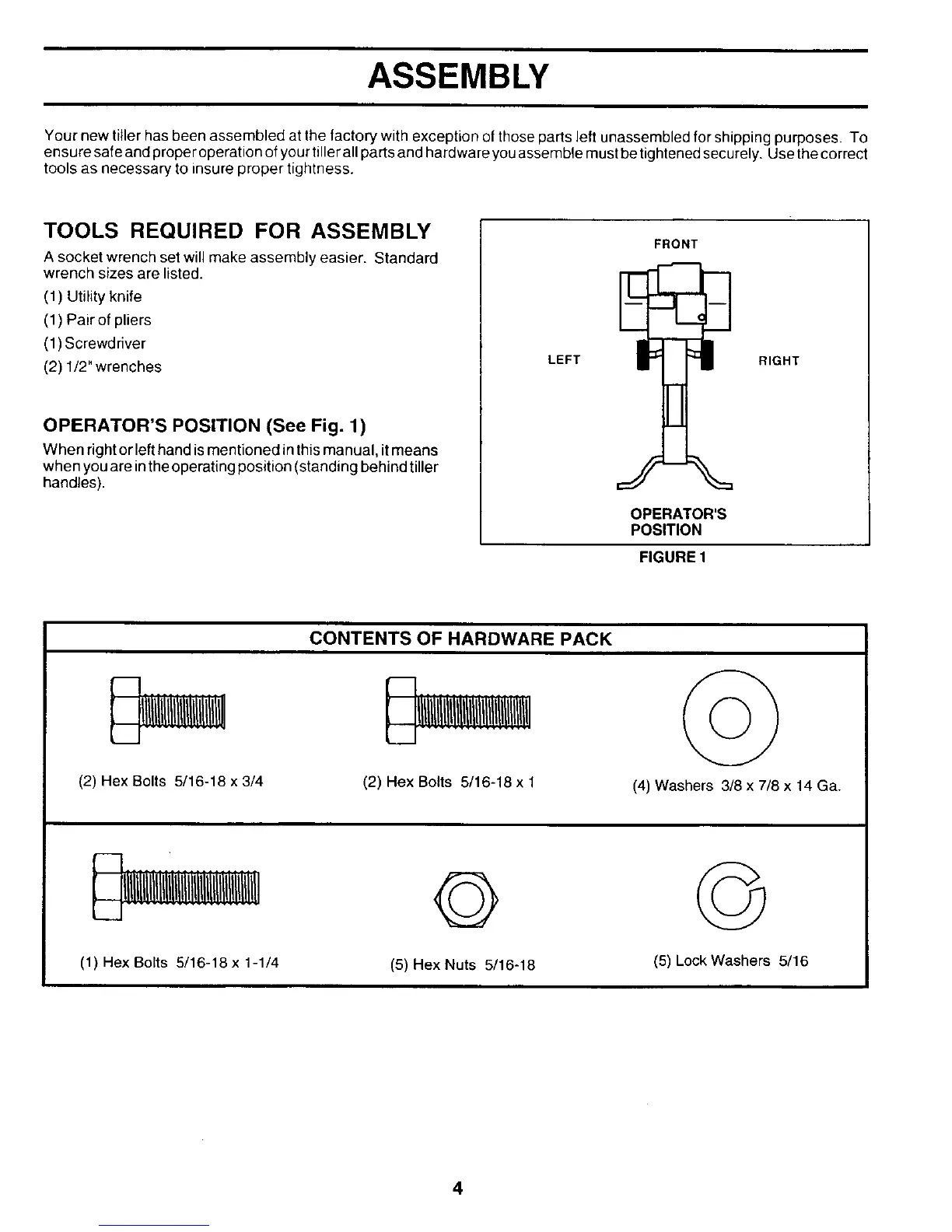

ASSEMBLY
Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To
ensure safe and prope roperation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct
tools as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set willmake assembly easier. Standard
wrench sizes are listed.
(1) Utility knife
(1) Pair of pliers
(1) Screwdriver
(2) 1/2" wrenches
OPERATOR'S POSITION (See Fig. 1)
When right or lefthand is mentioned in this manual, itmeans
when youare inthe operatingposition (standing behind tiller
handles).
FRONT
LEFT RIGHT
OPERATOR'S
POSITION
FIGURE 1
(2) Hex Bolts 5/16-18 x 3/4
CONTENTS OF HARDWARE PACK
U!ll!l!!l!l!tl!l!l!131!l!131!l!l!l!!
(2) Hex Bolts 5116-16 x 1
(4) Washers 3/8 x 7/8 x 14 Ga.
©
(1) Hex Bolts 5/16-18 x 1-1/4
(5) Hex Nuts 5/16-18
(5) Lock Washers 5/16
4
