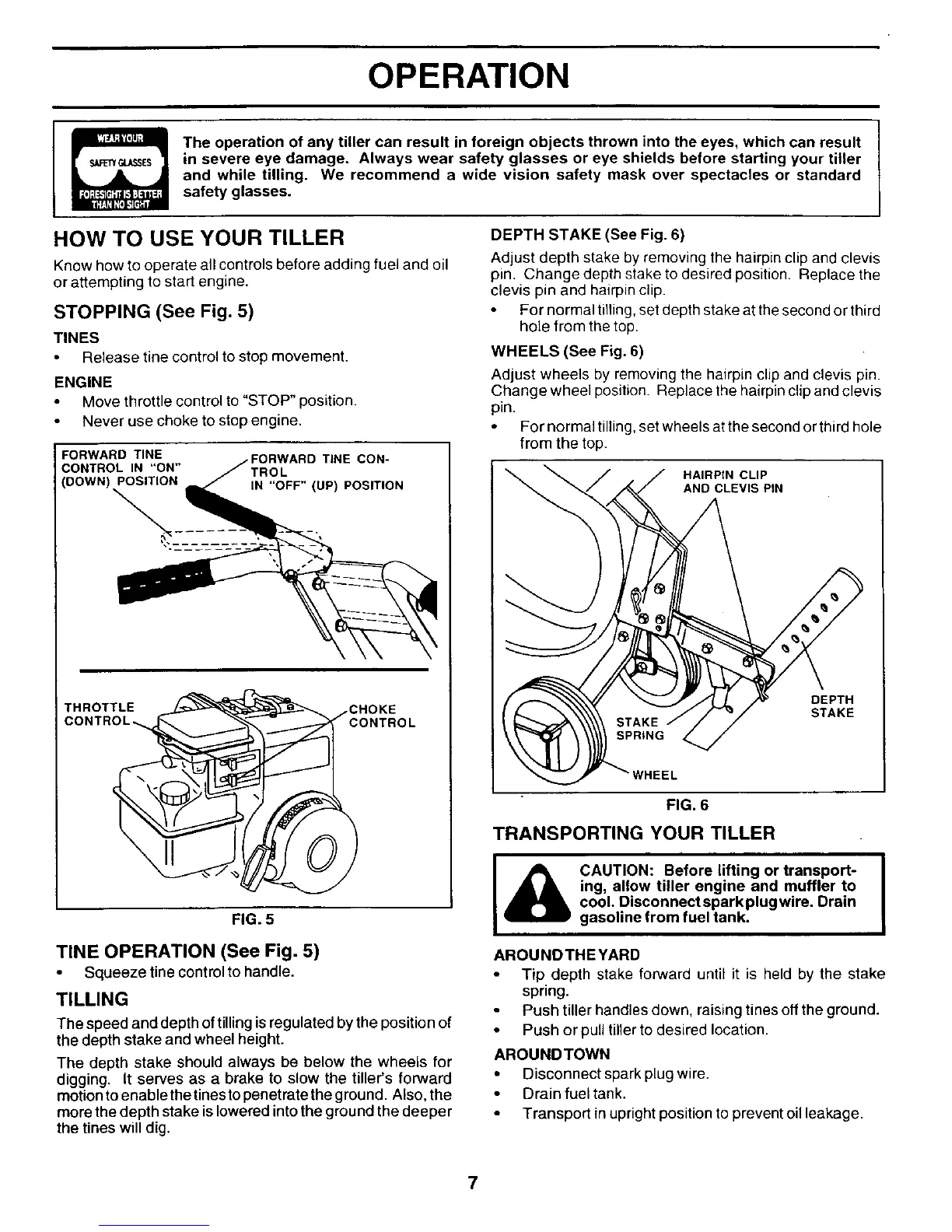

Rally FN620J - HOW TO USE YOUR TILLER

OPERATION
The operation of any tiller can result in foreign objects thrown into the eyes, which can result
in severe eye damage. Always wear safety glasses or eye shields before starting your tiller
and while tilling. We recommend a wide vision safety mask over spectacles or standard
safety glasses.
DEPTH STAKE (See Fig. 6)
HOW TO USE YOUR TILLER
Know how to operate all controls before adding fuel and oil
or attempting to start engine.
STOPPING (See Fig. 5)
TINES
Release tine control to stop movement.
ENGINE
Move throttle control to "STOP" position.
Never use choke to stop engine.
FORWARD TINE
CONTROL IN "ON"
(DOWN) POSITION
%
TINE CON-
TROL
IN "OFF" (UP) POSITION
"HROTTLE CHOKE
3L
FIG. 5
TINE OPERATION (See Fig. 5)
• Squeeze tine control to handle.
TILLING
The speed and depth of tillingis regulated bythe position of
the depth stake and wheel height.
The depth stake should always be below the wheels for
digging. It serves as a brake to slow the tiller's forward
motion to enablethe tinesto penetrate the ground. Also, the
more the depth stake is lowered into the ground the deeper
the tines will dig.
Adjust depth stake by removing the hairpin clip and clevis
pin. Change depth stake to desired position. Replace the
clevis pin and hairpin clip.
For normal tilling, set depth stake at the second or third
hole from the top.
WHEELS (See Fig. 6)
Adjust wheels by removing the hairpin clip and clevis pin.
Change wheel position. Replace the hairpin clip and clevis
pin.
• For normal tilling, set wheels atthe second or third hole
from the top.
HAIRPIN CLIP
AND CLEVIS PIN
DEPTH
STAKE
FIG. 6
TRANSPORTING YOUR TILLER
I
I
CAUTION: Before lifting or transport- |
ing, allow tiller engine and muffler to
[
cool. Disconnectsparkplugwire. Drain
gasoline from fuel tank.
AROUNDTHEYARD
Tip depth stake forward until it is held by the stake
spring.
Push tiller handles down, raising tines off the ground.
• Push or pull tiller to desired location.
AROUNDTOWN
• Disconnect spark plug wire.
• Drain fuel tank.
• Transport in upright position to prevent oil leakage.
