406 SERVICING AND MAINTENANCE

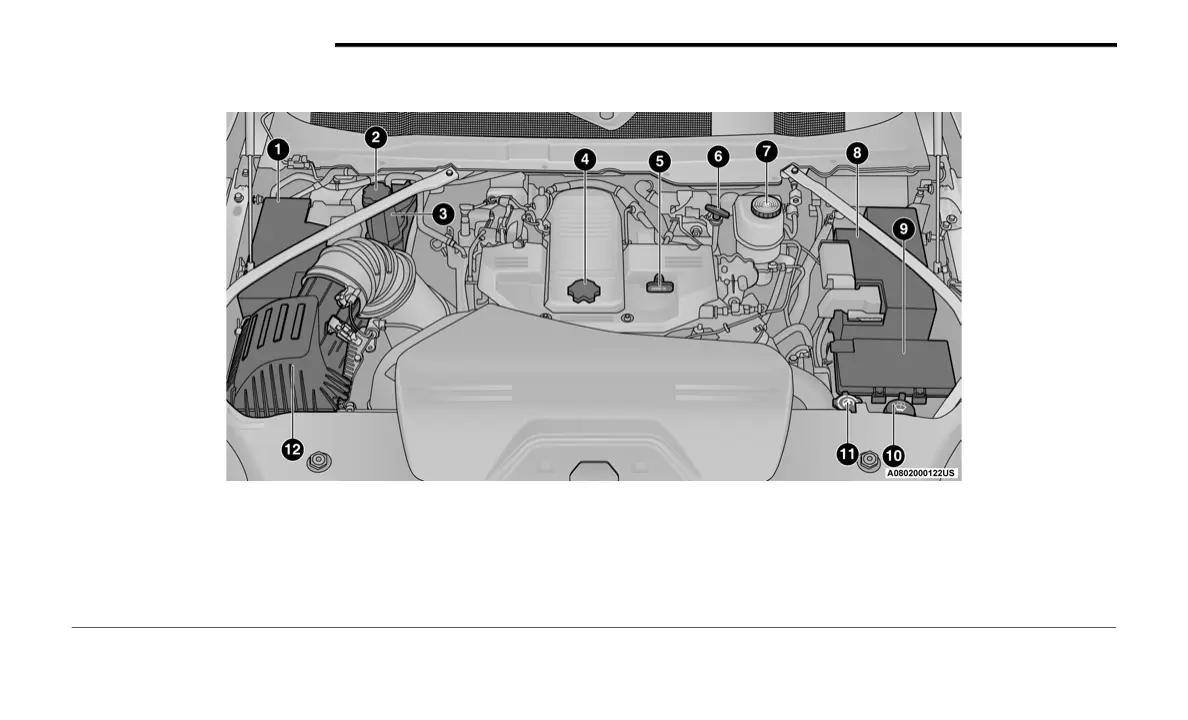

6.7L DIESEL ENGINE — SIX-SPEED AS69RC HD

1 — Battery 7 — Brake Fluid Reservoir Cap

2 — Engine Coolant Pressure Cap 8 — Battery

3 — Engine Coolant Pressure Reservoir 9 — Power Distribution Center (Fuses)

4 — Engine Oil Fill 10 — Washer Fluid Reservoir Cap

5 — Engine Oil Dipstick 11 — Power Steering Reservoir Cap

6 — Automatic Transmission Dipstick 12 — Engine Air Cleaner Filter
