RAM R7 Series User Manual

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
125
SURFACE
FINISH:
SURFACE FEATURES: MACHINED PARTS ONLY
T.I.R
 .005 PERPENDICULAR  .015
FLATNESS .010 PARALLEL
 .015
671
X.X ±0.03
X.XX ±0.015
X.XXX ±0.005
FRACTION ± 1/16
ON ALL
MACHINED
SURFACES
DIMENSIONS:
BREAK ALL SHARP EDGES
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES
AND ALL TOLERANCES ARE AS STATED
3rd ANGLE PROJECTION
DO NOT SCALE
R7
RS1123
LBS.
410622
EST. FINISHED
WEIGHT
ORIGINAL JOB NO.
MODEL NUMBERNEXT ASSEMBLY
ANGLES: ±
0.5°
APVD:
M.WEHMEYER
M.TROYER
M.TROYER
2/20/2019
2/19/2019
CKD:
M.TROYER
DWN:
ENG:
2/20/2019
TITLE:
2/20/2019

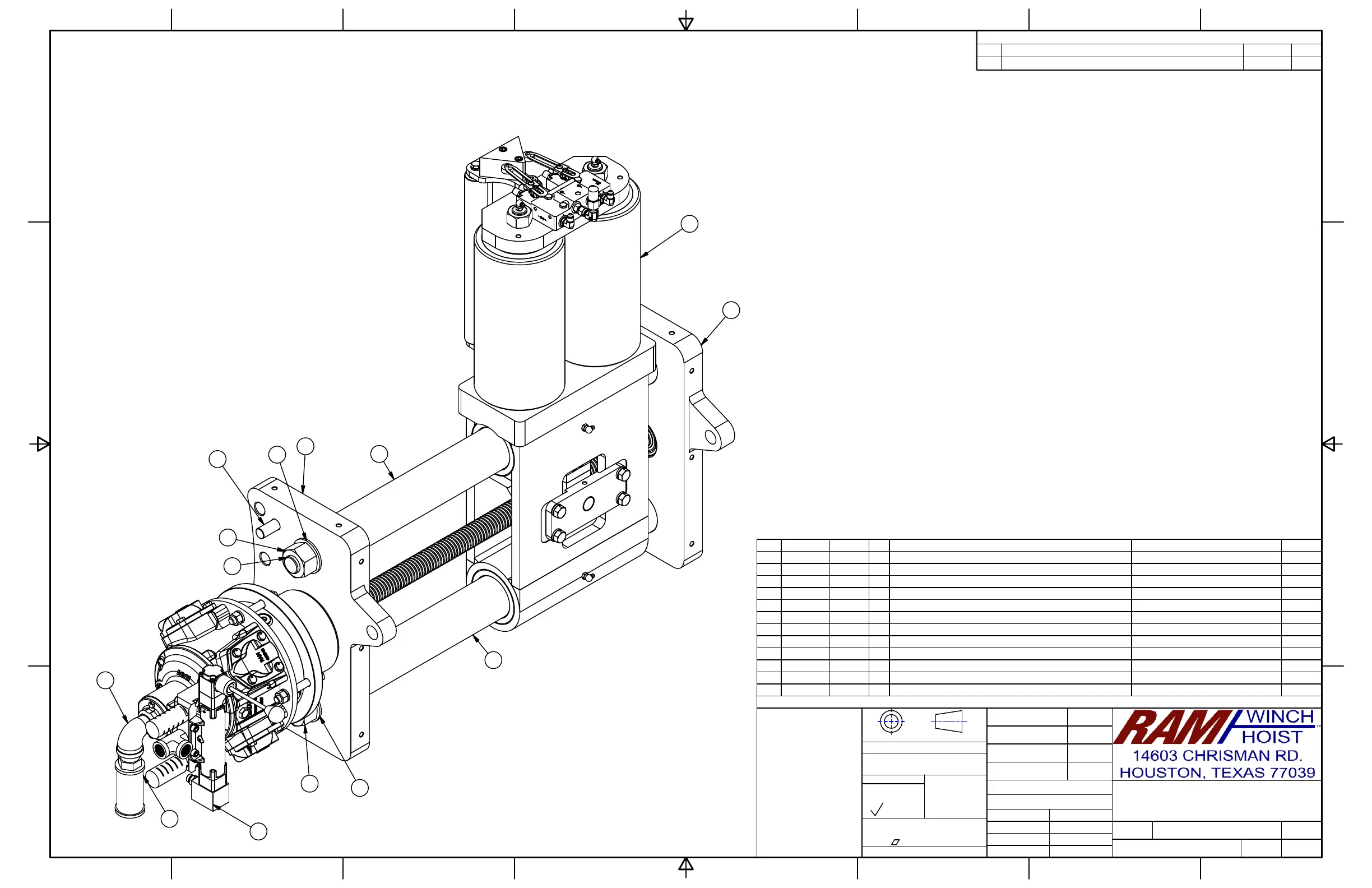

ASSEMBLY, R7 LEVELWIND
SIZE:
AR10580
410580
SHT:SCALE:
DWG NUMBER: REV:
PART NUMBER:
N/A
OF
1
0
1
B
THIS DRAWING IS THE PROPERTY
OF RAM ITC. THE DESIGN AND DATA
SHOWN INCLUDES PROPRIETARY
INFORMATION THAT DESCRIBES
RAM ITC. PRODUCTS. THE
BORROWER BY RECEIPT AND
RETENTION OF THE DRAWING
AGREES, THAT EXCEPT AS
EXPRESSLY AUTHORIZED IN
WRITING BY RAM ITC., IT WILL (1)
ONLY USE THE DRAWING OR THE
DESIGN AND DATA SHOWN FOR THE
PURPOSE INTENDED BY RAM ITC; (2)
NOT LOAN, REPRODUCE, EXHIBIT OR
DISTRIBUTE THE DRAWING OR ANY
COPY OF THE DESIGN OR DATA
SHOWN FOR USE BY ANY OTHER
THAN RAM ITC., AND (3) UPON
DEMAND RETURN THE DRAWING,
ALL COPIES AND ALL MATERIAL
COPIES THEREFROM.
.5
1" NPT SILENCER
1LB00001
-
13
.6
STREET ELBOW, 1" NPT, PLT
1FP50046
-
12
1.4
3_4 DIAMETER X 2-3_4 LONG DOWEL PIN, STEEL
4
AG80120
-
10
3.3
1-1/4-12 HEX NUT HEAVY
4
FQ06303
-
9
.6
1-1/4 FLAT WASHER
4FQ06312
-
8
293.1 ASSEMBLY, LEVELWIND CARRIAGE1AR105444105447
120.0 ASSEMBLY, R7 LEVELWIND DRIVE
1
AR105684105686
7.1
ASSEMBLY, LEVELWIND CONTROL VALVE
1
AR10684410684
5
25.1 TIE ROD, R7 LEVELWIND2AR105714105714
69.9 GUIDE ROD, R7 LEVELWIND2AR105704105703
79.3 BEARING END PLATE, R7 LEVELWIND
1
AR105674105672
75.3
DRIVE END PLATE, R7 LEVELWIND1
AR10566410566
1
Parts List
WT (LBS)
EXPANDED DESCRIPTIONDESCRIPTIONQTYPART NO.DRAW NO.ITEM
REVISION HISTORY
REV DESCRIPTION DATE ECN
0INITIAL RELEASE
2/19/2019
NA
NOTES:
TORQUE ALL FASTENERS ACCORDING TO RAM PROCESS SPECIFICATION PS-100013
WHERE APPLICABLE.
1.
APPLY LOCTITE 277 TO FASTENERS AS REQUIRED PER MANUFACTURERS INSTRUCTIONS.
2.
THOROUGHLY COAT FRAME TIE BAR TO FRAME CONNECTIONS AND ASSOCIATED
FASTENERS WITH MARINE GRADE NEVER-SEIZE.
3.
6
1
10
8
9
4
5
7
2
3
3
12
13
8
9

RAM R7 Series Specifications

General

Gear Train	3-Stage Planetary
Series	R7
Line Pull	7000 lbs
Remote Control	Wireless Remote
Battery Leads	2 gauge
Rope	3/8" Synthetic Rope
