14 GETTING TO KNOW YOUR INSTRUMENT PANEL
When “Standard” mode is selected, the
HUD image is split into thirds with the speed
limit indicator shown to the left, vehicle
speed in the center, and turn-by-turn navi-
gation to the right.
Advanced: Speed, Speed Limit, Navigation,
Driver Assist (ACC/Cruise, LaneSense,
Highway Assist/Highway Assist+), Gear
Advanced Mode
When “Advanced” mode is selected, the HUD
displays the vehicle speed, turn-by-turn naviga-
tion, speed limit, driver assist function(s), and
current gear.
Custom 1: Speed, Speed Limit
Custom 2: Speed, Speed Limit, Navigation
Custom 3: Speed, Speed Limit, Navigation,
Driver Assist (ACC/Cruise, LaneSense,
Highway Assist/Highway Assist+)
Custom 4: Speed, Speed Limit, Navigation,
Driver Assist (ACC/Cruise, LaneSense,
Highway Assist/Highway Assist+), Gear
Display Height
Brightness

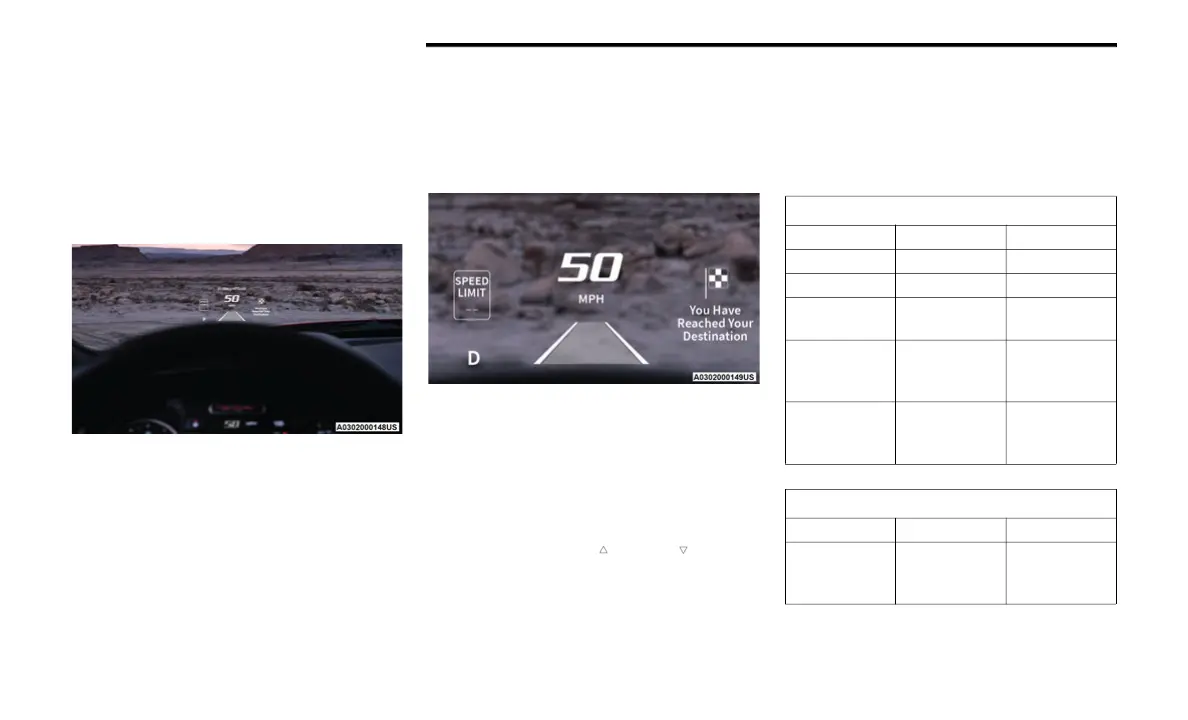

Expanded Example of HUD Display
NOTE:
The HUD basic settings (Brightness, Display Height
and Non Custom layouts), are controlled through
the Settings Screen in the Instrument Cluster
Ú page 10.
Screen Setup Driver Selectable Items
Push and release the up or down arrow
button until the Settings Menu Icon/Title is
highlighted in the instrument cluster display. Push
and release the OK button to enter the submenus
and follow the prompts on the screen as needed.
The Settings feature allows you to change what
information is displayed in the instrument cluster
as well as the location that information is
displayed.
NOTE:
The Settings feature is only available when the
vehicle speed is less than 5 mph (8 km/h).
Upper Left or Right
None Compass Outside Temp
Time Range Average Econ
Current Econ Trip A Distance Trip B Distance
Trailer Trip – If
Equipped
Trailer Brake –
If Equipped
Oil Pressure –
If Equipped
Coolant
Temp – If
Equipped
Battery
Voltage – If
Equipped
Oil Life – If
Equipped
Oil
Temperature –
If Equipped
Transmission
Temperature –
If Equipped
Favorite Menus
Speedometer Vehicle Info Performance
Off Road
Driver Assist
(show/hide) –
If Equipped
Fuel Economy
(show/hide)
22_DT_TRX_SU_EN_USC_t.book Page 14
