SERVICING AND MAINTENANCE 79
ENGINE COMPARTMENT

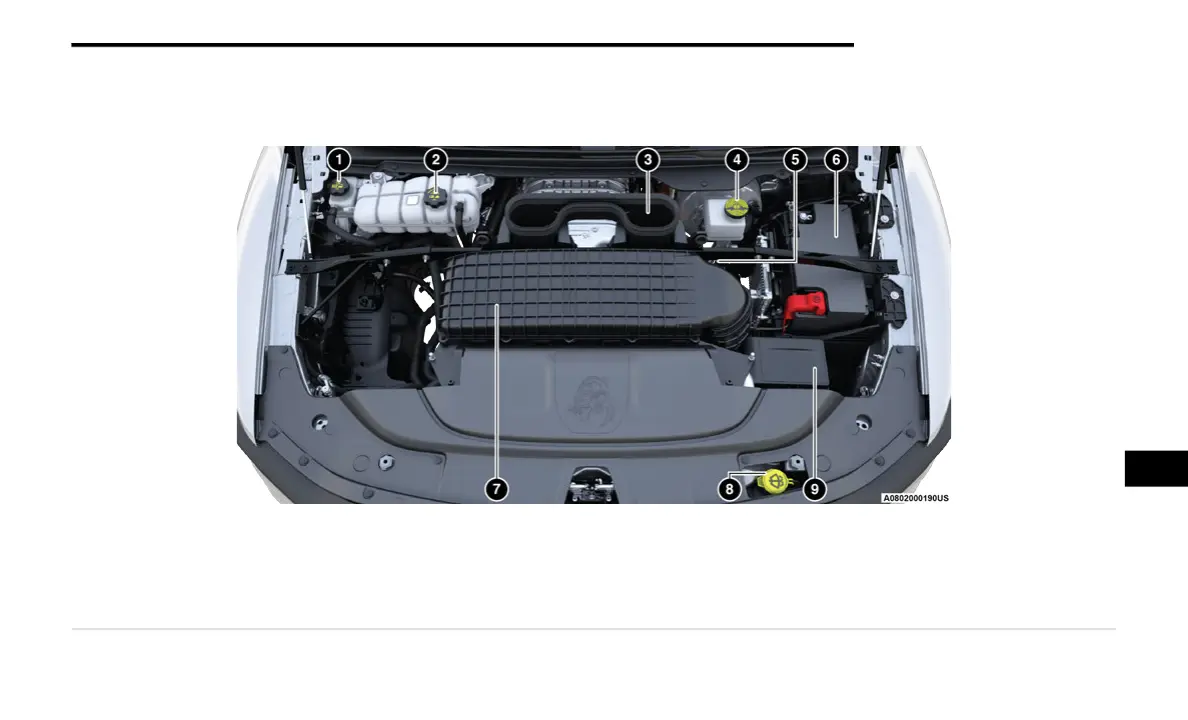

6.2L SUPERCHARGED ENGINE (BEAUTY COVER REMOVED )
1 — Intercooler Coolant Reservoir Cap 6 — Battery
2 — Engine Coolant Reservoir Pressure Cap 7 — Engine Air Cleaner Filter
3 — Engine Oil Fill (behind air intake)
1
1. See following image for further description of location.
8 — Washer Fluid Reservoir Cap
4 — Brake Fluid Reservoir Cap 9 — Power Distribution Center (Fuses)
5 — Engine Oil Dipstick
1
8
22_DT_TRX_SU_EN_USC_t.book Page 79
