SERVICING AND MAINTENANCE 85
Fuse And Wire Color Chart
NOTE:
Fuses for the auxiliary switches can be found in the auxiliary Power Distribution Center (PDC), located in the engine compartment toward the front of the vehicle,
in front of the main PDC. Remove upper shield to access. If equipped, additional auxiliary switch fuses will be located in the main PDC.

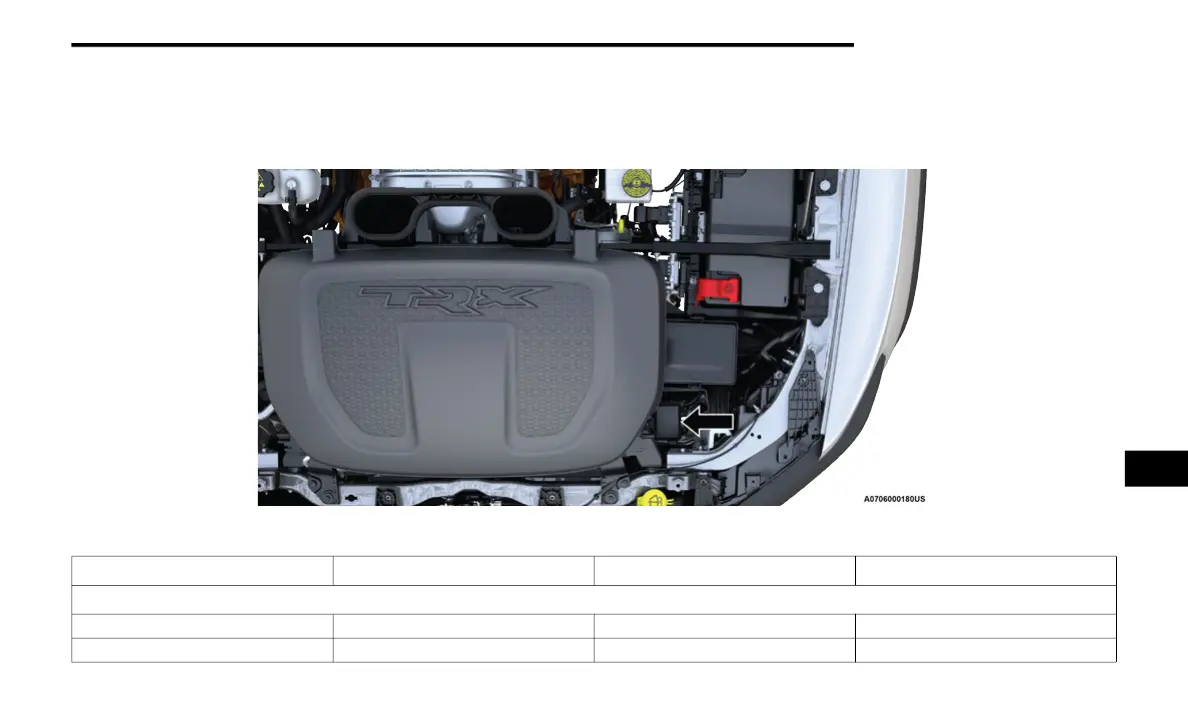

Auxiliary PDC Location
Circuit Function Fuse Wire Color Location
* If Equipped
Aux Switch 1 F001A – 50 Amp Pink/Dark Blue Auxiliary PDC
Aux Switch 2 F002A – 20 Amp Pink/Dark Green Auxiliary PDC
8
