RAMMER 1655 - Page 12

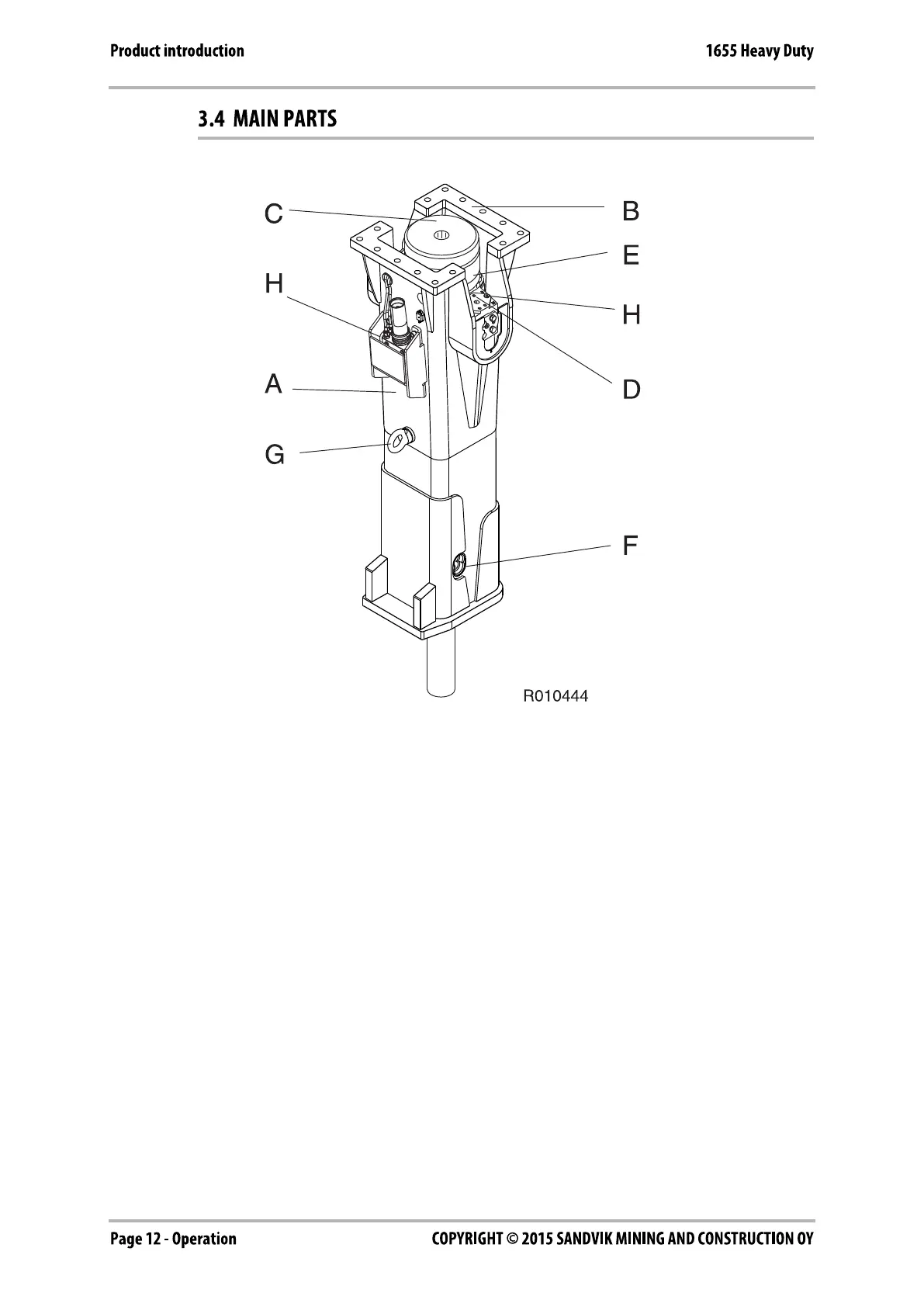

The main parts of the hammer are shown below.
A. Housing
B. Mounting flange
C. Vibration dampening elements
D. Hose connections (pressure and return lines, automatic lubrication and
pressurized air)
E. Pressure accumulator
F. Tool retaining mechanism
G. Lifting eye
H. Greasing device/Grease nipples
