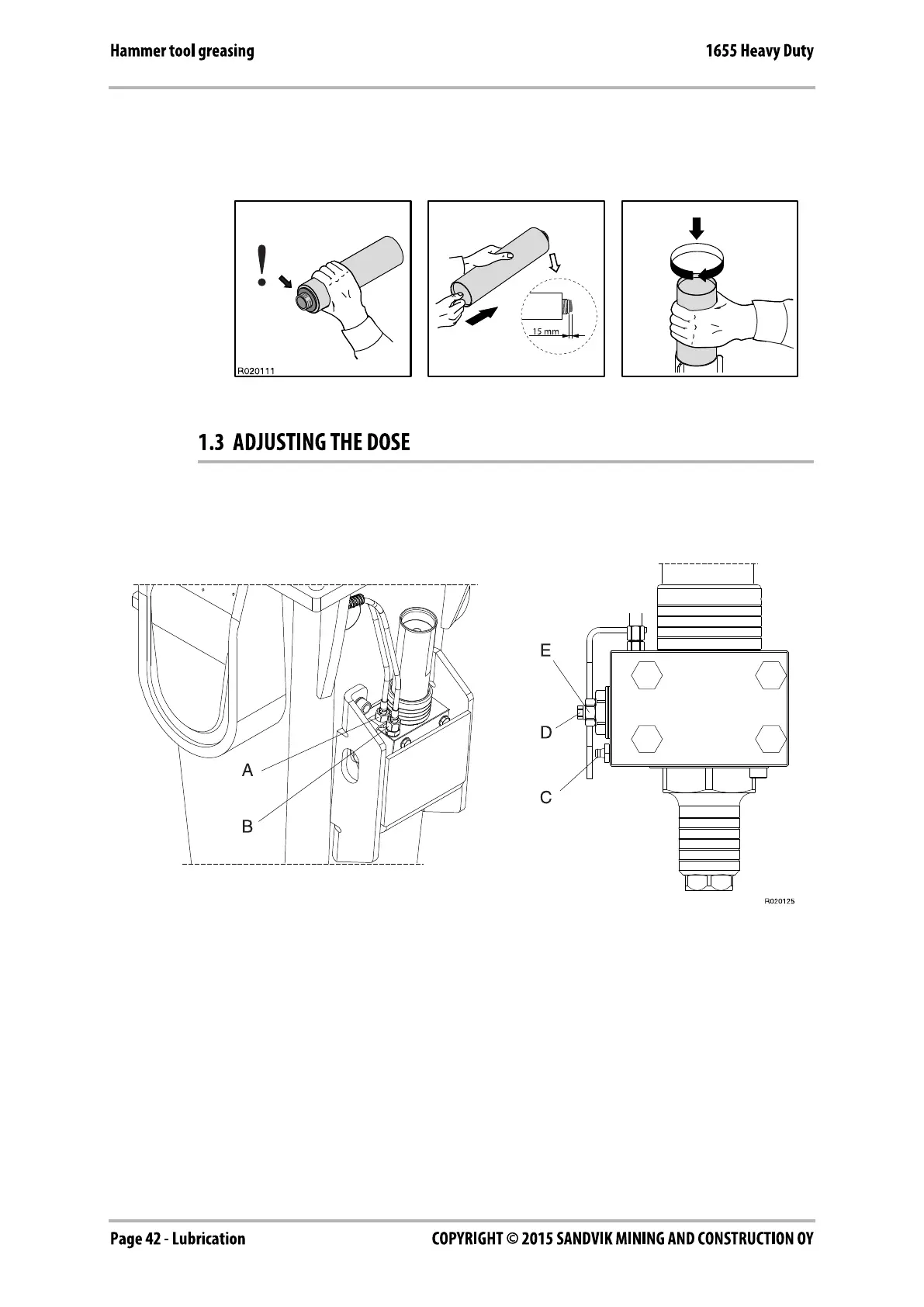

6. Push the cartridge piston with fingers until approximately 15 mm of grease
comes out.
7. Insert the cartridge and tighten it.
Note: Some hammer models are equipped with an adapter kit for manual greasing
and do not include an automatic greasing device.
A. Grease hose
B. Pressure hose
C. Grease nipple for manual greasing
D. Adjusting screw for grease dosage
E. Locking nut for the adjusting screw
