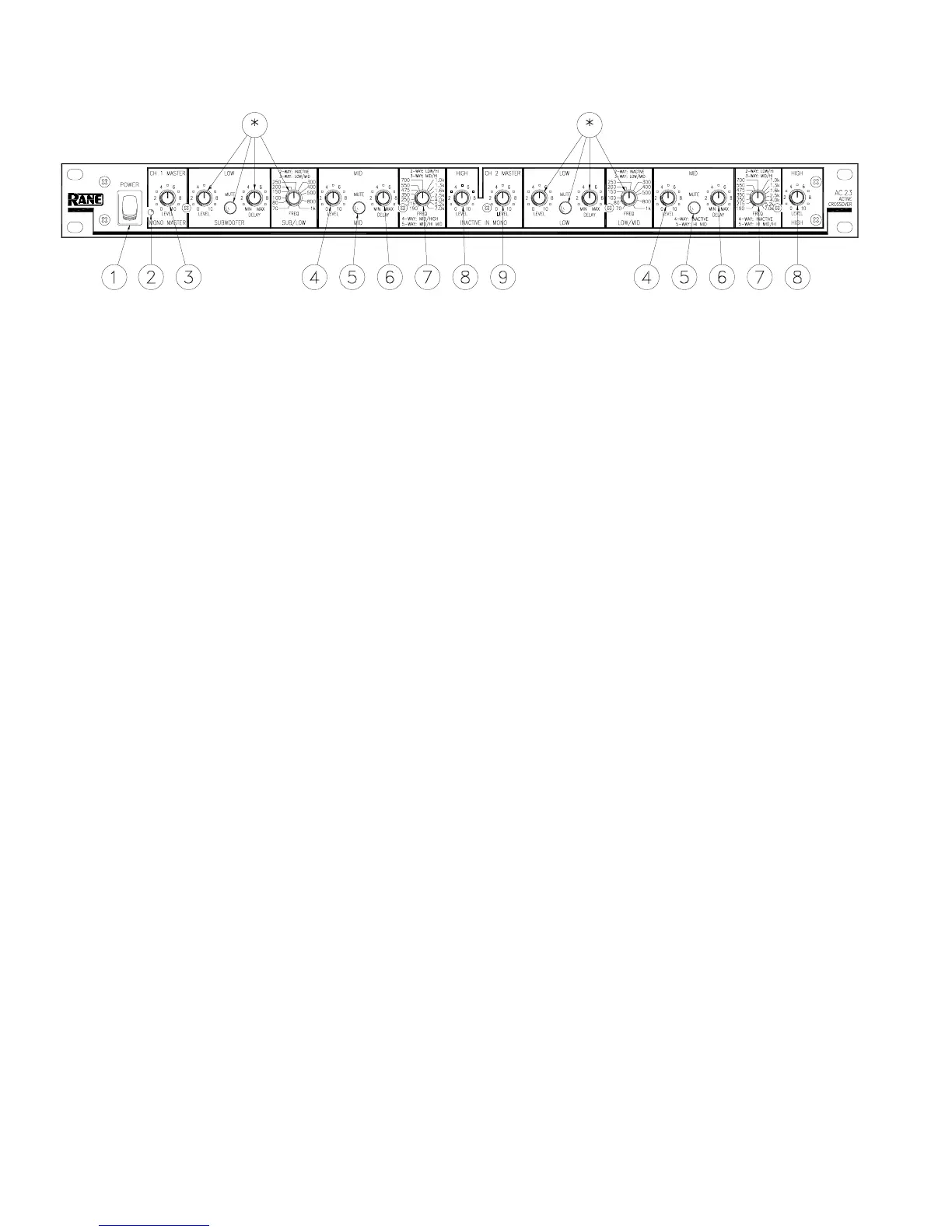

FRONT PANEL: STEREO 2-WAY CONFIGURATION
Observe the labels screened above the controls for stereo operation.
NOTE: In the 2-Way mode, the AC 23 crossover range is from 190 Hz to 7 kHz. The model AC 22 crossover in
stereo 2-Way mode is recommended when the crossover point needs to be outside of this range.
* Not used in 2-Channel 2-Way Mode
햲 POWER switch: Two guesses.
햳 POWER indicator: When this yellow LED is lit the unit is ready to operate.
햴 CHANNEL 1 MASTER LEVEL control: Sets the overall Level of Channel 1 without altering the relative settings of the
Low and High frequency Outputs. Unity gain for all level controls is at “7”.
햵 LOW LEVEL control: Sets the Level of signal going to the Low Frequency output in this channel. Refer to ‘Setting the
Output Level Controls’ on page Manual-15.
햶 LOW MUTE switch: When pressed to the in position, all signal is removed from the Low Frequency Output. This eases
tune-up procedures as described on pages Manual-11-16.
햷 LOW DELAY control: Adds from 0 to 2 ms of time Delay to the Low Frequency Output only. This allows a low fre-
quency driver to be electronically phase-aligned with a mid frequency driver whose diaphragm is situated behind the low
frequency diaphragm. Refer to ‘Time Delay Adjustment Procedure’ on page Manual-10.
햸 LOW/HIGH crossover frequency selector: This 41-detent selector sets the crossover frequency between the Low and
High frequency Outputs. Refer to ‘Selecting Crossover Frequencies’ on page Manual-10.
햹 HIGH LEVEL control: Sets the Level of signal going to the High frequency Output only.
햺 CHANNEL 2 MASTER LEVEL control: Sets the overall Level of Channel 2 without altering the relative settings of the
Low and High Outputs.
