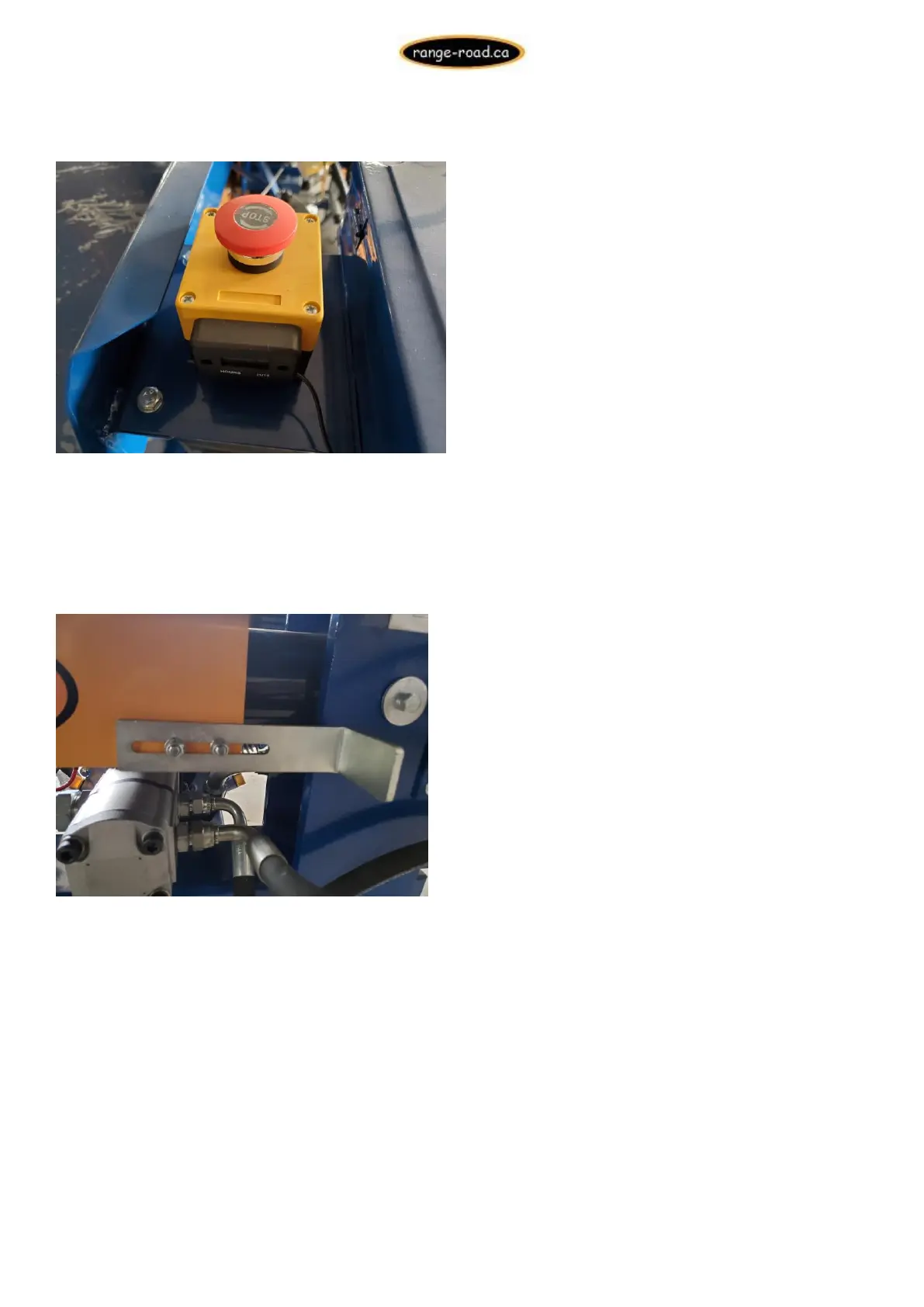

Fig. 5
If the emergency stop switch is depressed, turn the red button slowly until it pops up into the run
position.
Fig. 6
This silver bent bar is used to stop the ram at the end of it’s stroke, if the ram doesn’t return to the
home position and stays extended, loosen the 2-13mm nuts and slide the bar to the left so it hits the
manual ram engagement handle sooner.
