Rangemaster ELTHDC110SG - Page 4

EN
4
4

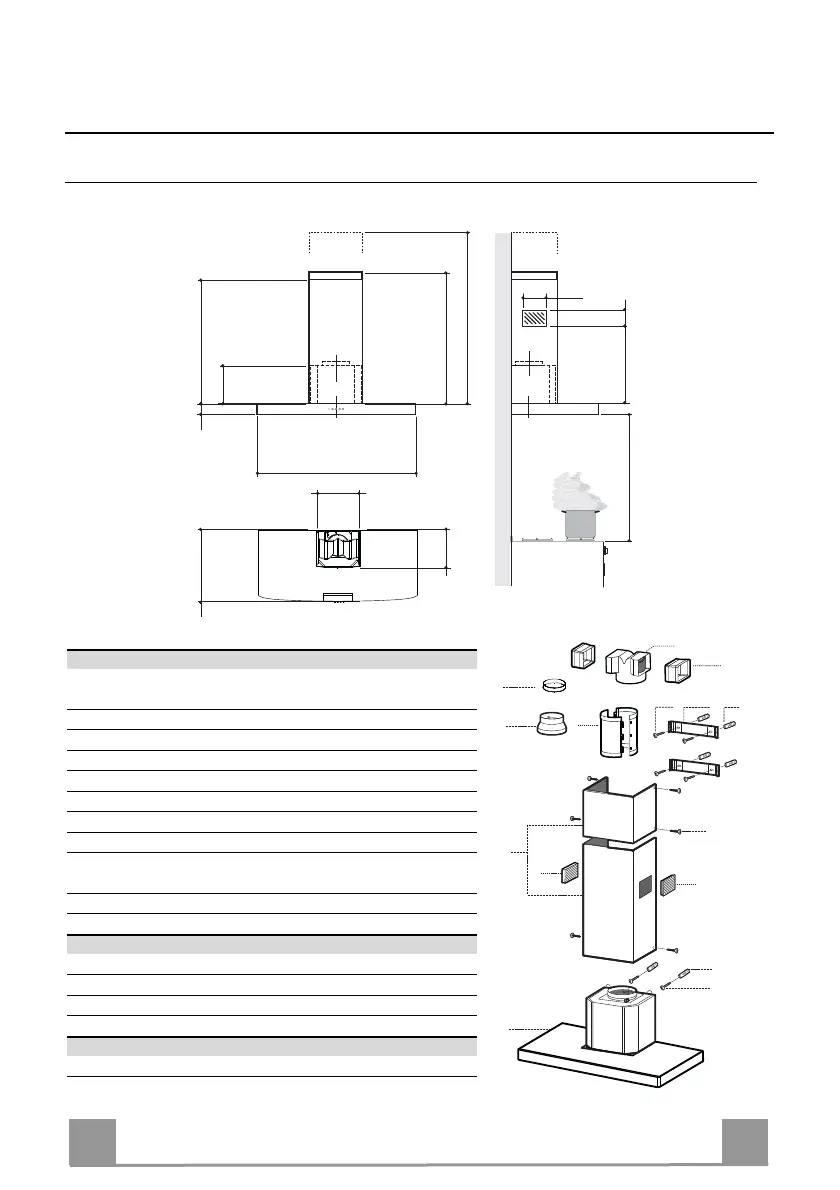

CHARACTERISTICS
Dimensions
650 min.
500
70
259
min. 740
740
260
300
90
132
427
max. 940
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,
Filters
2 1 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
8a 1 Right Air Outlet Grill
8b 1 Left Air Outlet Grill
9 1 Reducer Flange ø 150-120 mm
10 1 Adapting ring ø 120-125 mm
14 1 Hood Body Air Outlet Extension Piece consisting of two
Half Shells
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
11 6 Wall Plugs
12a 6 Screws 4,2 x 44,4
12c 6 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
11
12a
1
2.1
2.2
2
12c
12a
7.2.1 11
14.1
15
8a
14
9
10
8b
