Rangemaster RDW459FI/SF - 7 Circuit Diagram

21

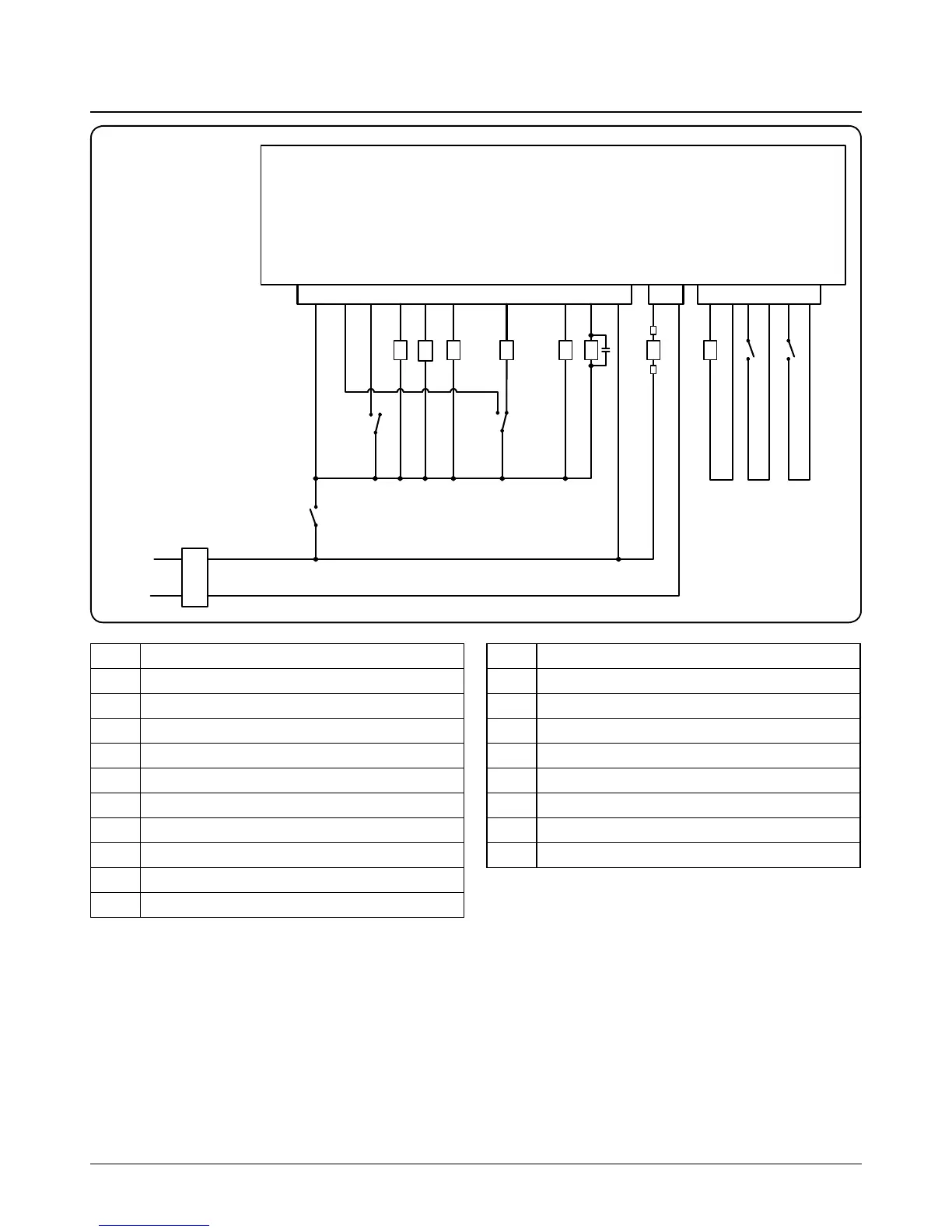

7. Circuit Diagram
CNF
1 2 3 4 5 6 7 8 9 10 11 12
N
L
Relay
N L
CN2
1 2 3 4 5 6
220-240 Vac
50 Hz
BC
S
DE F
R
JMOP
A
Q
I
K
T
H
G
Code Description
A PCB
B Half load valve
C Dispenser
D Softer valve
E Inlet valve
F Drain pump
G Washing motor
H Capacitor for washing motor
I Temperature limiter
J Heater
Code Description
K Thermal cut-out
M Thermostat sensor
O Low salt switch
P Low rinse aid switch
Q Pressure switch
R Overow switch
S Door switch
T EMI lter
• DocNo.800-0705 - Circuit diagram - RDW459SF dishwasher
