Rangemaster RDW6012FI - Circuit Diagram; Dishwasher Electrical Schematic

21

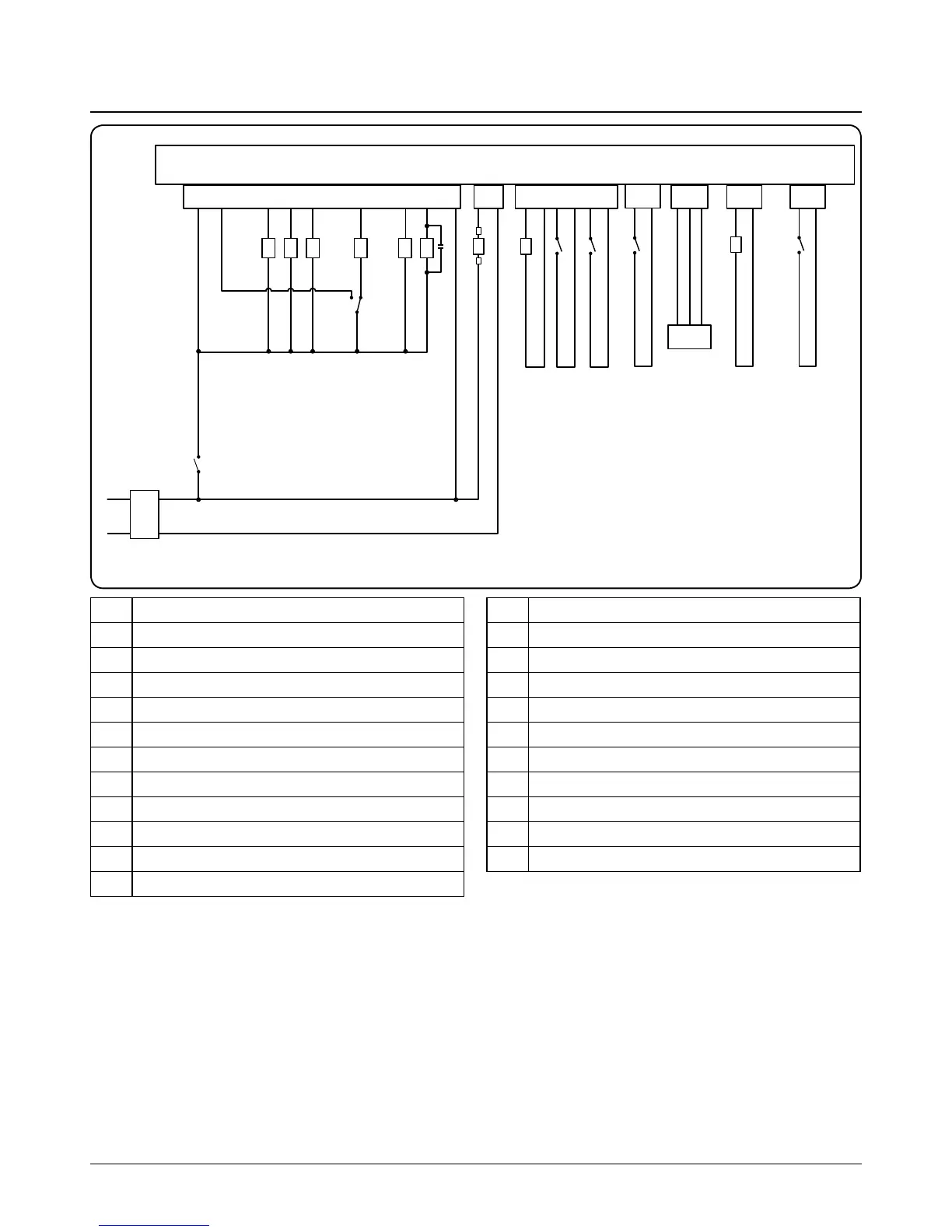

7. Circuit Diagram
220V-240 Vac
50 Hz
CN6CN5CN4CN3CN2
Relay
L
N
CNF
123456 8 10111297
1 23 4 5 6
13 12123 12NL
ST
K
I
A
R
QP
O
MJ
U
FE
V
B
C D G
H
W
Code Description
A PCB
B Diverter motor
C Dispenser
D Softer valve
E Inlet valve
F Drain pump
G Washing motor
H Capacitor for washing motor
I Temperature limiter
J Heater
K Thermal cut-out
Code Description
M Thermostat sensor
O Low salt switch
P Low rinse aid switch
Q Flow meter
R Turbidity sensor
S Pressure sensor
T Diverter switch
U Overow switch
V Door switch
W EMI lter
DocNo.800-0701 - Circuit diagram - RDW6012 dishwasher
