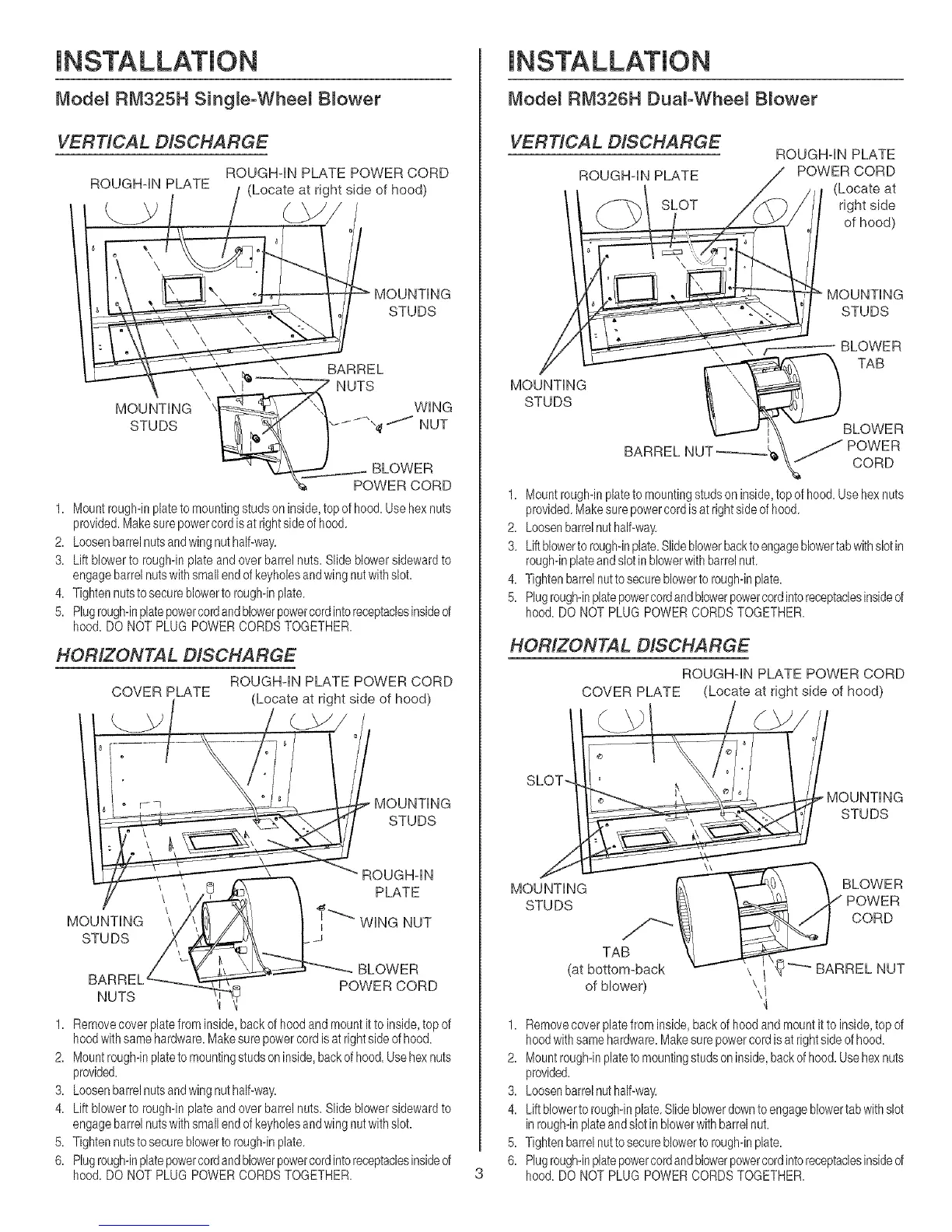

Mode_ RM325H Sing_e°Whee_ B_ower
VERTICAL DISCHARGE
ROUGH-IN PLATE POWER CORD
RO_H_N PLATE / (Loca_g_ side of hood)
STUDS
/ .__'_, _ \ BARREL
'_ POWER CORD
1. Mountrough-inplatetomountingstudsoninside,topof hood.Usehexnuts
provided.Makesurepowercordisat rightsideofhood.
2. Loosenbarrelnutsandwingnuthalf-way.
3. Lift blowerto rough-inplateandover barrelnuts.Slideblowersidewardto
engagebarrelnutswithsmallendofkeyholesandwingnutwithslot.
4. Tightennutstosecureblowerto roughdnplate.
5. Plugroughdnplatepowercordandblowerpowercordintoreceptaclesinsideof
hood.DO NOTPLUGPOWEROORDSTOGETHER.
HORIZONTAL DISCHARGE
COVER PLATE
ROUGH-IN PLATE POWER CORD
(Locate at right side of hood)
MOUNTING
STUDS
' ROUGH-IN
\ \ PLATE
\
T_'_ WiNG NUT
MOUNTING \
STUDS J
BLOWER
POWER CORD
NUTS
1. Removecoverplatefrominside,backofhoodandmountit toinside,top of
hoodwithsamehardware.Makesurepowercordis atrightsideof hood.
2. Mountrough-inplatetomountingstudsoninside,backofhood.Usehexnuts
provided.
3. Loosenbarrelnutsandwingnuthalf-way.
4. Lift blowerto rough-inplateandover barrelnuts.Slideblowersidewardto
engagebarrelnutswithsmallendofkeyholesandwingnutwithslot.
5. Tightennutst°securebl°wert° r°ughdnplate
6. Plugroughdnplatepowercordandblowerpowercordintoreceptaclesinsided
hood.DO NOTPLUGPOWEROORDSTOGETHER.
Mode_ RM326H Dua_-Whee_ B_ower
VERTICAL DISCHARGE
ROUGH-IN PLATE
1 SLOT
ROUGH-IN PLATE
POWER CORD
(Locate at
right side
of hood)
MOUNTING
STUDS
MOUNTING
STUDS
TAB
BLOWER
J POWER
CORD
1. Mountrough-inplatetomountingstudsoninside,topof hood.Usehexnuts
provided.Makesurepowercordisat rightsideofhood.
2. Loosenbarrelnuthalf-way.
3. Liftblowerto roughdnplate.Slideblowerbacktoengageblowertabwithslotin
rough-inplateandslotinblowerwithbarrelnut.
4. Tightenbarrelnutto secureblowertoroughdnplate.
5. Plugroughdnplatepowercordandblowerpowercordintoreceptaclesinsideof
hood.DO NOTPLUGPOWEROORDSTOGETHER.
HORIZONTAL DISCHARGE
ROUGH-IN PLATE POWER CORD
COVER PLATE (Locate at right side of hood)
SLOT,
MOUNTING
STUDS
MOUNTING
STUDS
1.
2.
3.
4.
5.
6.
BLOWER
POWER
j_._ CORD
TAB
(at bottom-back \ / _'''_ BARREL NUT
of blower) \\1
,1
Removecoverplatefrominside,backof hoodandmountit to inside,top of
hoodwithsamehardware.Makesurepowercordis atrightsideof hood.
Mountrough-inplatetomountingstudsoninside,backofhood.Usehexnuts
provided.
Loosenbarrelnuthalf-way.
Liftblowerto rough-inplate.Slideblowerdowntoengageblowertabwithslot
inrough-inplateandslotinblowerwithbarrelnut.
Tightenbarrelnuttosecureblowertorough-inplate.
Plugrough-inplatepowercordandblowerpowercordintoreceptaclesinsided
hood.DO NOTPLUGPOWEROORDSTOGETHER.
