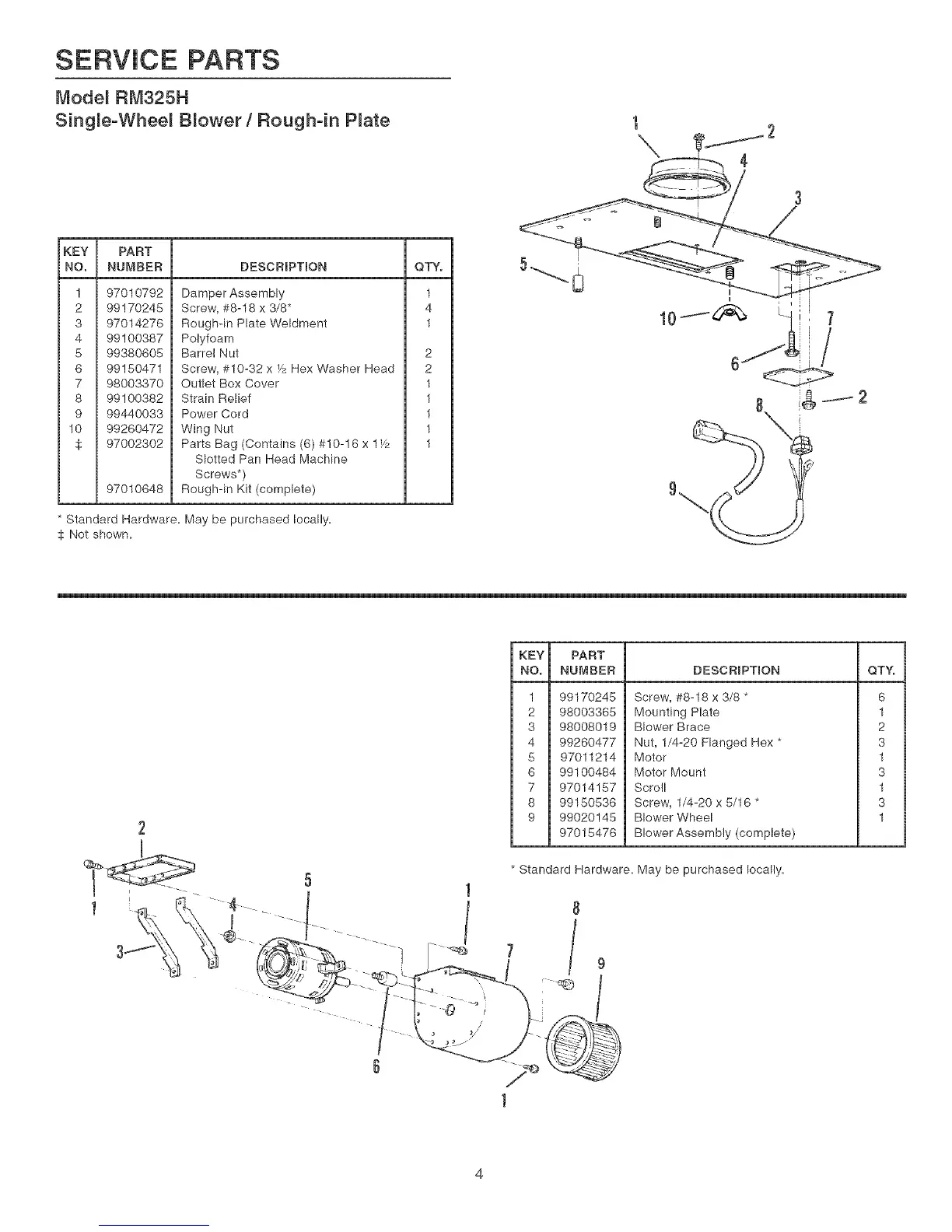

SERVICE PARTS
Mode_ RM325H
Sing_e°Whee_ B_ower/Rough-in P_ate
KEY PART
NO. NUMBER DESCRIPTmON QTY.
1 97010792
2 99170248
3 97014276
4 99100387
6 99380605
6 99150471
7 98003370
8 99100382
9 99440033
10 99260472
97002302
97010648
Damper Assembly 1
Screw, #8-18 x 3/8" 4
Roughdn Plate Weldment 1
Polyfoam
Barrel Nut 2
Screw, #10-32 x _JzRex Washer Head 2
Outlet Box Cover 1
Strain Relief 1
Power Cord 1
Wing Nut 1
Parts Bag (Contains (6) #10-! 6 x 11/2 1
Slotted Pan Head Machine
Screws*)
Rough-in Kit (complete)
* Standard Hardware, May be purchased locally,
_: Not shown,
2
KEY PART
NO. NUMBER DESCRIPTION QTY.
1
2
3
4
5
6
7
8
9
99170245
98003365
98008019
99260477
97011214
99100484
97014157
99150536
99020145
97015476
Screw, #8-18 x 3/8 *
Mounting Plate
Blower Brace
Nut, 1/4-20 Flanged Hex *
Motor
Motor Mount
Scro!l
Screw, 1/4-20 x 5/16 *
Blower Wheel
Blower Assembly (complete)
* Standard Hardware, May be purchased locally,
8
6
1
2
3
1
3
1
3
1
