SAFETY
17

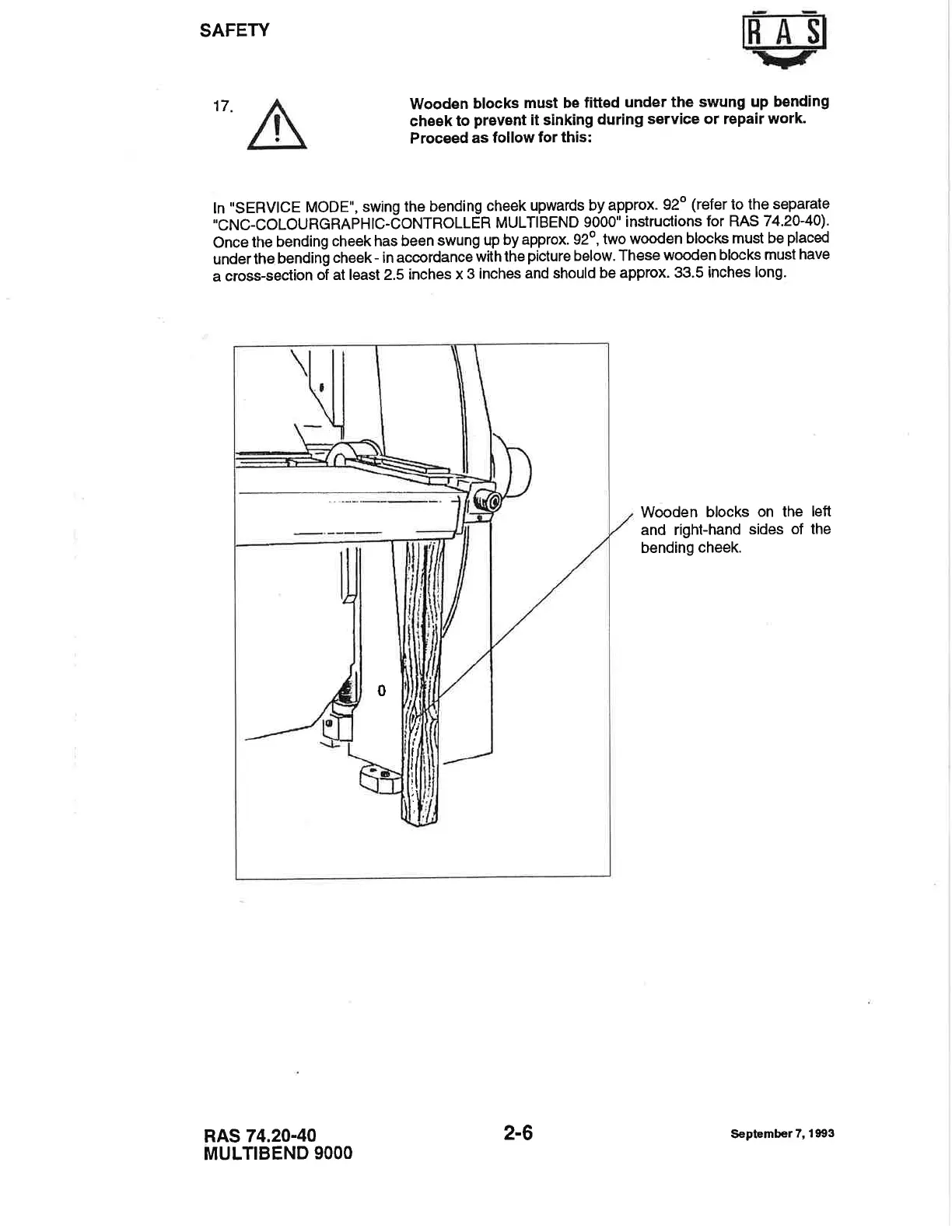

Wooden
blocks
must
be
fitted under
the swung up
bending
cheek
to
prevent
it sinking
during
service or repair
work.
Proceed as follow
for
this:
ln
,,SERVICE
MODE",
swing
the bending
cheek
upwards
by
approx.
92o
(refer
to the
separate
"cNc-colouRGRAPHtc-eOrurnou-ER
MULTIBEND
9000"
instruc'tions
for RAS
74.20-40).
Once
the
bending
cheek
has been
swung
up
by approx.
92o,
two wooden
blocks must be
placed
under
the
bending
cheek
-
in accordance
with the
below. These
wooden blocks must
have
a cross-section
of
at least 2.5
inches
x
3 inches
and should
be approx.
33.5 inches
long.
Wooden
blocks
on the
left
and right-hand
sides of the
bending
cheek.
RAS
74.20-40
MULTIBEND
9OOO
)l
i/
it
t,l
0
2-6
Septembel
7, 1
993
