CLEANING,
INSTALLATION AND
COMMISSIONING

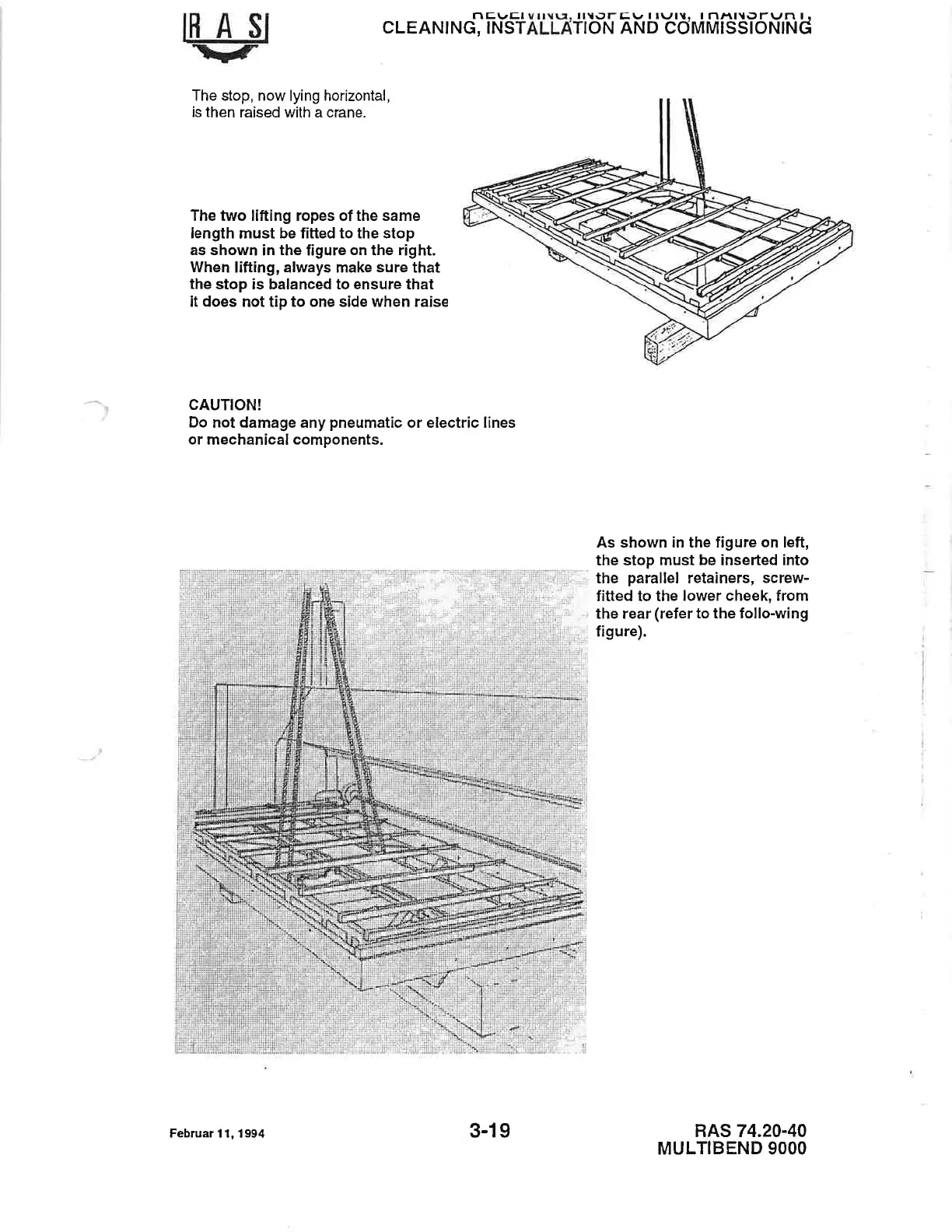

The stop, now
lying
horizontal,
is then raised with a crane.
The two lifting ropes of the same
length
must be
fitted
to
the stop
as shown
in the figure on the
right.
When
lifting, always make
sure
that
the stop is balanced to ensure that
it does
not tip to
one side when raise
CAUTION!
Do
not damage any
pneumatic
or electric lines
or
mechanical components.
As shown in the figure
on
left,
the
stop must be insefted into
the
parallel
retainers,
screw-
fitted to the
lower cheek, from
the rear
(refer
to
the follo-wing
figure).
