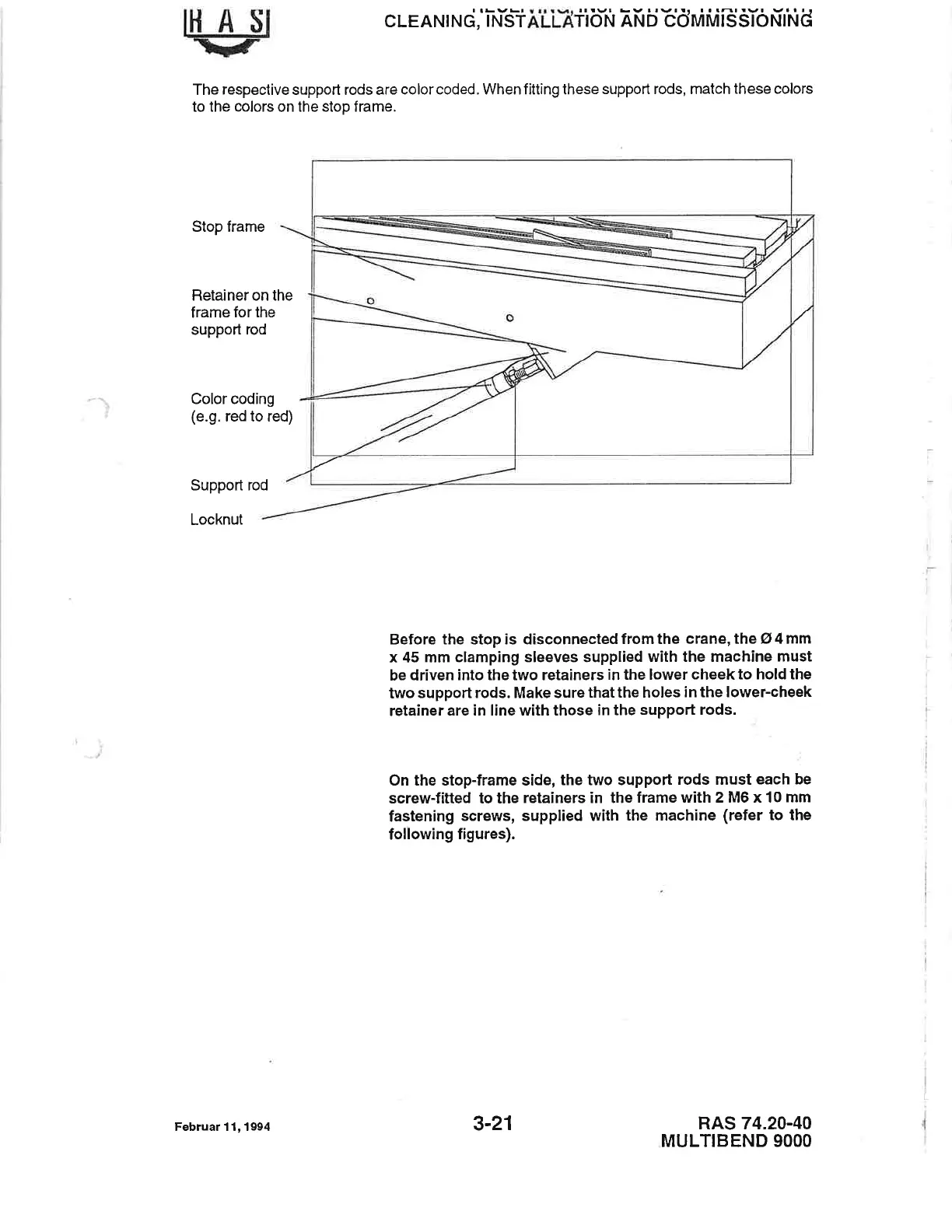

The respective support rods are
color coded. When f itting these
support rods, match these
colors
to the
colors
on the stop frame.
Stop frame
Retainer on the
frame
for
lhe
support rod
Color coding
(e.9.
red to red)
Support rod
Locknut
Before the stop is disconnectedfromthe
crane,the
O4mm
x 45 mm
clamping
sleeves
supplied
with the machine
must
be driven
into
the
two retainers
in the lower
cheek
to hold
the
two support
rods. Make sure that
the holes
in the lower-cheek
retainer
are in line with those
in the support rods.
On
the stop-frame side, the
two suppott
rods must each
be
screw-fitted to the retainers
in the frame
with 2 MG x 10
mm
fastening
screws,
supplied with
the machine
(refer
to
the
following
figures).
RAS 74.20-40
MULTIBEND 9OOO
I
L
Februar11,1994
3-21
