The
stop may be released from the
crane
once these measures have been carried
out.
As the
length of
the
suppoft rods has been fixed by means
of
locknuts, the
stop's horizontal
position
has been restored.

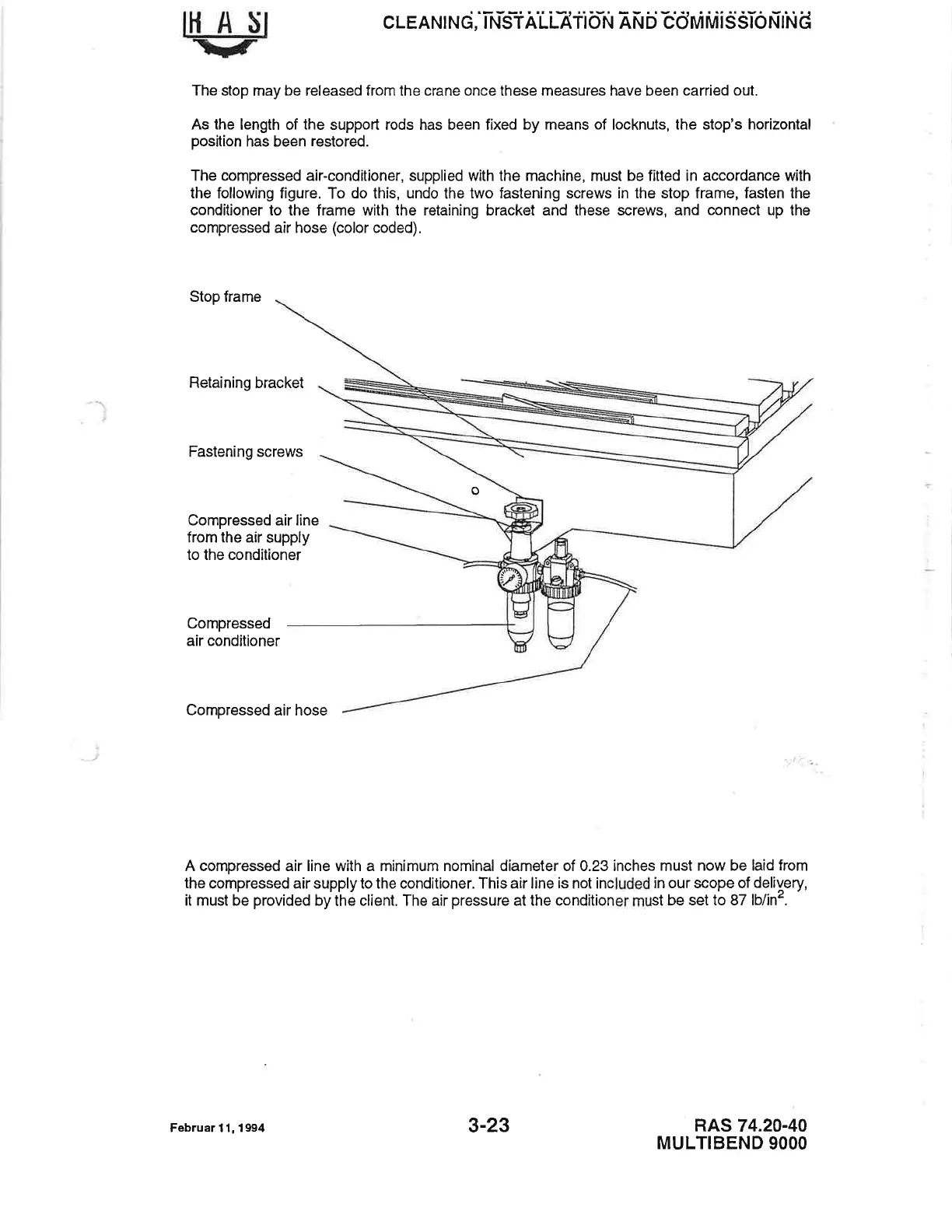

The
compressed
air-conditioner, supplied with the machine, must be fitted in
accordance
with
the following
figure. To do this, undo the lwo fastening
screws in the stop frame, fasten the
conditioner to the
frame
with the retaining bracket and these screws, and connect up the
compressed
air hose
(color
coded).
Stop
frame
Retaining
bracket
Fastening screws
o
Compressed
air line
from the
air supply
to the conditioner
Compressed
air conditioner
Compressed
air hose
.,.i:
a.
A compressed
air
line with a minimum nominal diameter of 0.23 inches must
now be laid from
the compressed air supply to the conditioner. This air line
is
not included
in our scope of delivery,
it must be
provided
by
the
client. The
air
pressure
at the conditioner must
be set to 87 lb/in".
RAS 74.20-40
MULTIBEND
9OOO
Februar11,1994 3-23
