To do this,
first
place
the table
panels
on the lower-cheek
side
of the stop,
then,
using
the clips
in the table
panels,
fit them into
the stop frame,
from top to bottom,
at the end of the stop
frame.
lf the
machine
is used to bend
parts
which require
a free area
between the
lower
cheek
and
the
stop, the
table
panels
can
be otfset
(1)
to
the
rear
(2)
by
approx.
8.6
inches
by simply lifting
the
panels
(refer
to the
following
figure).

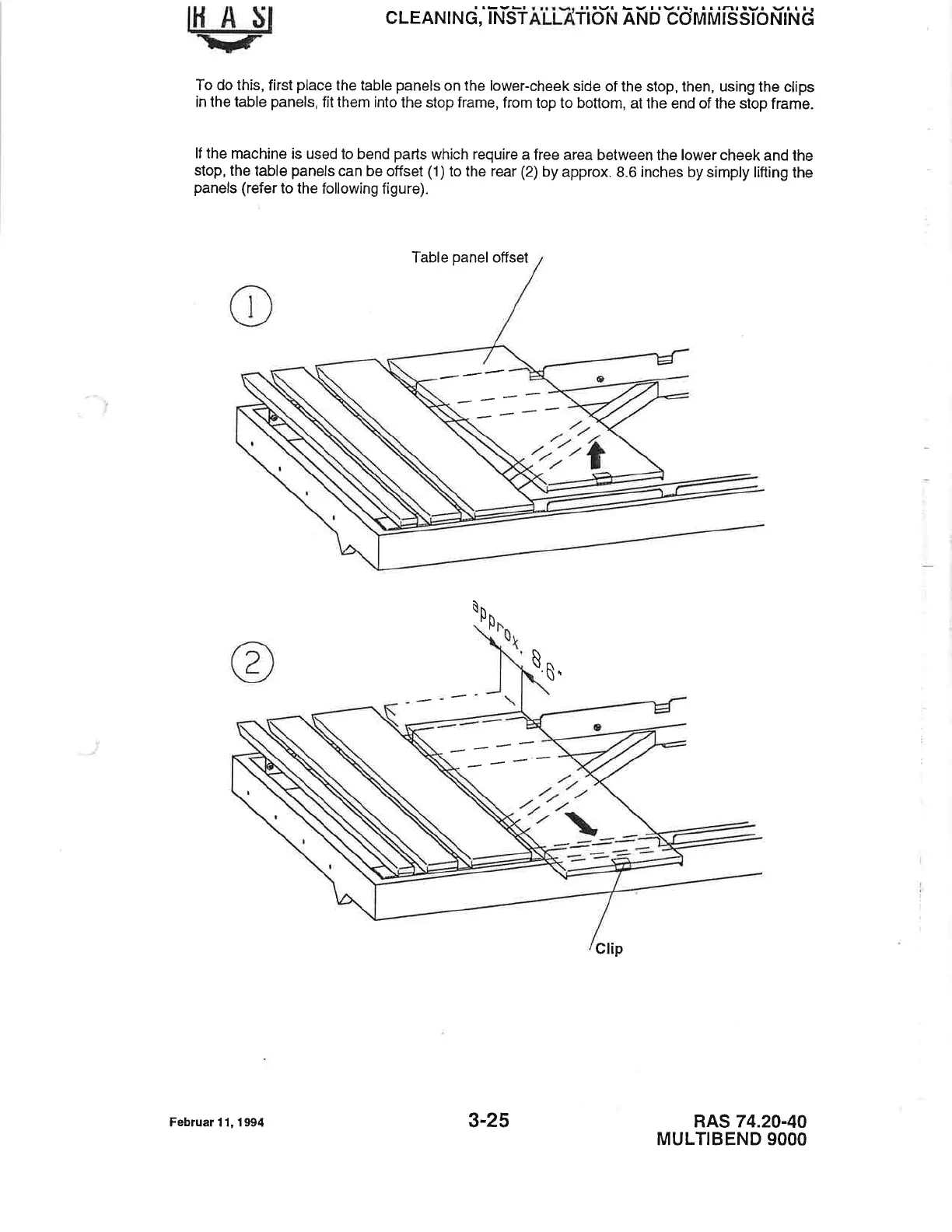

Table
paneloffset
p
\
p
\
$.
Clip
RAS 74.20-40
MULTIBEND
9OOO
