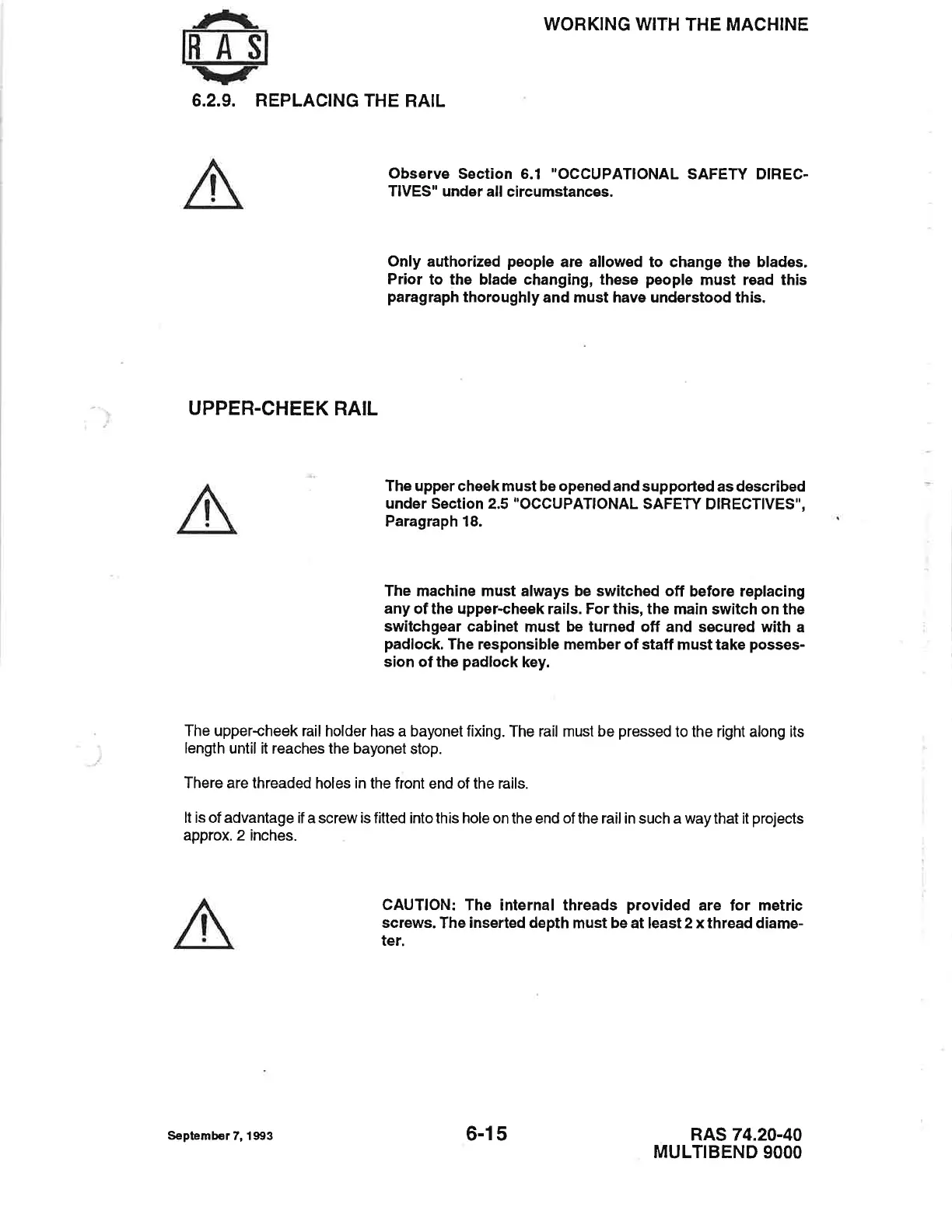

WORKING WITH
THE MACHINE
6.2.9. REPLACING THE
RAIL
Observe
Section 6.1 "OCCUPATIONAL
SAFETY DIREC-
TIVES' under
all circumstances.
Only
authorized
people
are allowed to change the blades.
Prior
to the blade
changing, these
people
must read this
paragraph
thoroughly and must have understood
this.
UPPER-CHEEK RAIL
The upper cheek must be opened
and supported as described
under
Section 2.5 "OCCUPATIONAL SAFEW
DIRECTIVES",
Paragraph 18.
The machine must
always
be
switched off before replacing
any
of the upper-cheek rails. For this, the
main switch on the
switchgear cabinet
must be turned off and secured
with a
padlock.
The responsible member of
staff must take
posses-
sion of
the
padlock
key.
The uppercheek rail
holder has a bayonet fixing.
The rail must be
pressed
to the
right along its
len$h
until it reaches
the
bayonet
stop.
There are threaded
holes
in
the front end of the rails.
It is of advantage
if a screw is litted into this hole on
the end of the rail in such a way that it
projects
approx.2 inches.
CAUTION:
The internal threads
provided
are
for
metric
screws.
The inserted depth must be at least2 xthread diame-
ter.
RAS 74.20-40
MULTIBEND
9OOO
Septemb€r
7, 1 993
6-1s
