WORKING
WITH THE MACHINE

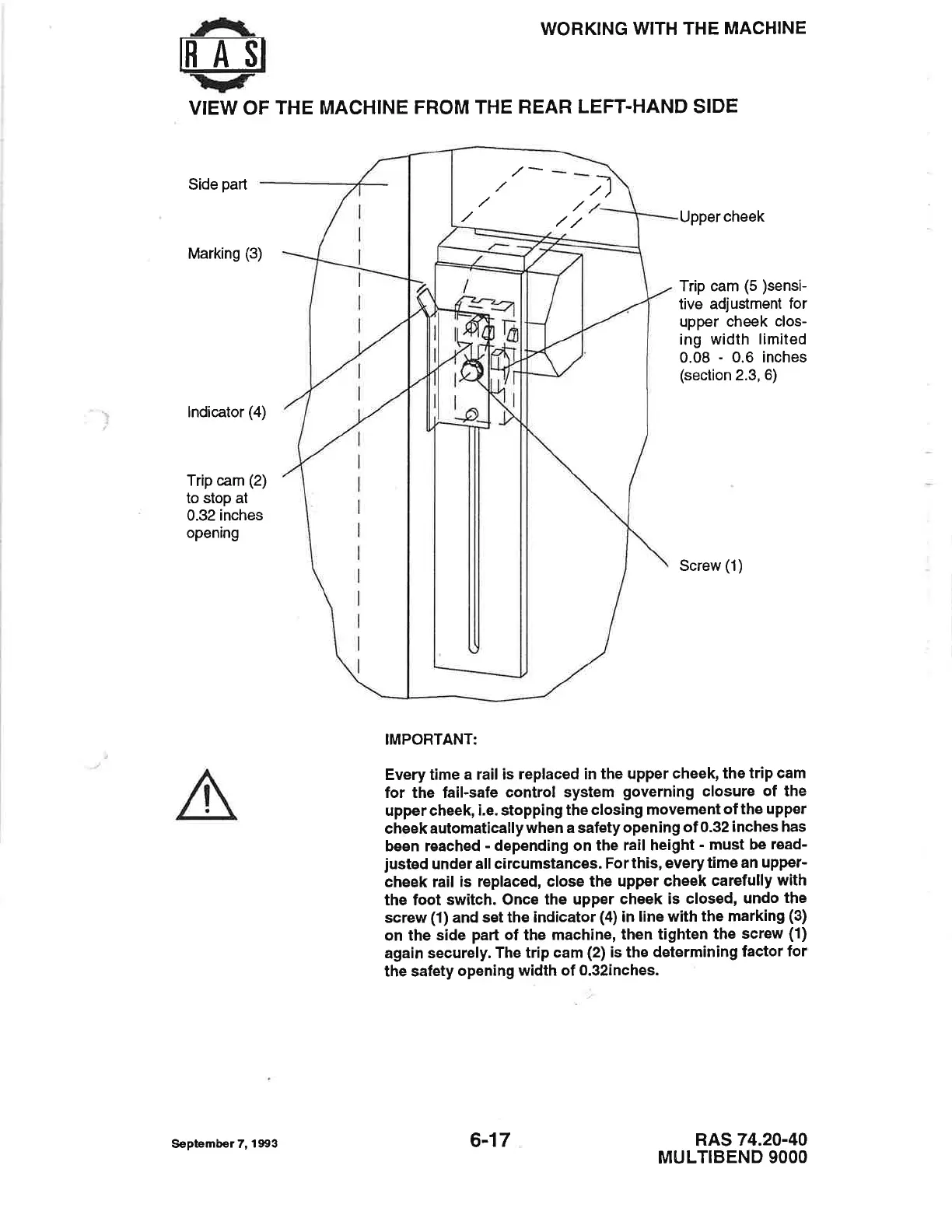

VIEW OF THE MACHINE
FROM THE
REAR LEFT.HAND
SIDE
Side
part
Upper
cheek
Marking
(3)
Trip cam
(5
)sensi-
tive adjustment
for
upper
cheek
clos-
ing width
limited
0.08
-
0.6 inches
(seclion
2.3,
6)
lndicator
(4)
Trip
cam
(2)
to stop
at
0.32 inches
opening
Screw
(1)
IMPORTANT:
Every time
a rail is
replaced in the
upper cheek,
the trip
cam
for the fail-safe
control system
governing
closure
of the
upper cheek,
i.e. stopping the
closing movement
of the
upper
cheekautomaticallywhen
a safetyopening
of 0.32 inches
has
been
reached
-
depending on
the rail height
-
must
be
read-
justed
under
all circumstances.
For this,
every time
an
upp€r-
cheek rail is
replaced,
close the upper
cheek
carefully
with
the foot
switch. Once the
upper
cheek is
closed,
undo the
screw
(1)
and
set the indicator
(4)
in
line with
the marking
(3)
on the side
part
of the
machine,
then tighten
the
screw
(1)
again
securely. The
trip cam
(2)
is the determining
factor
for
the safety
opening width
of 0.32inches.
RAS
74.20-40
MULTIBEND 9OOO
,
September 7,
1 993
6-17
