Page 3

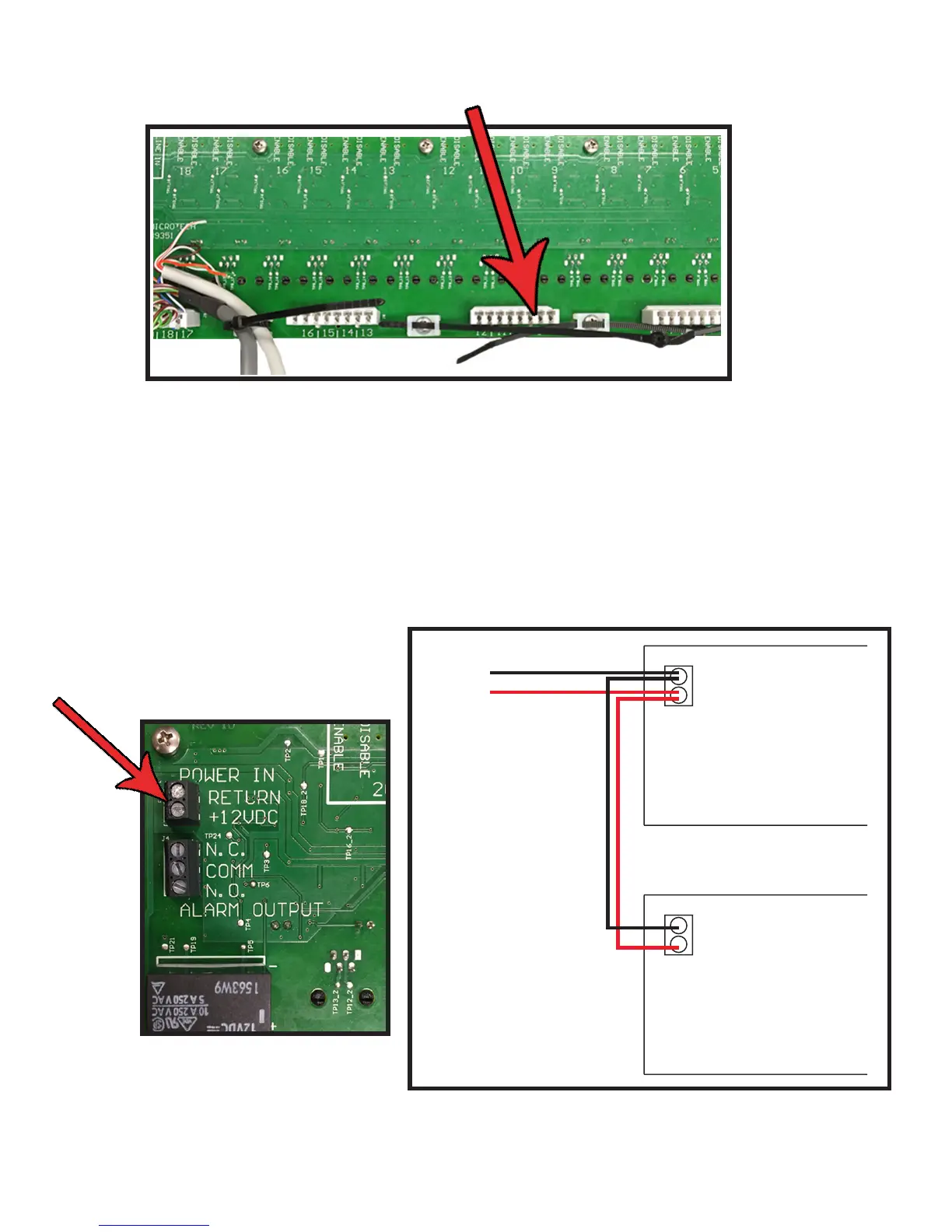

5. Attach supplied +12vdc Power Supply to appropriate terminals on 2500 Supervisor Board. Insert the
+ wire into the + connector and - wire into the RETURN connector on board and secure by screwing
down the capture clip. For systems larger than 16 zones, connect subsequent 2500 Supervisor
Boards in series by connecting an additional wire to the + and RETURN terminals for feeding power
to next board in system. Repeat as necessary to provide power to all boards.
POWER IN
RETURN
+ 12VDC
POWER IN
RETURN
+ 12VDC
12 VDC
POWER
SUPPLY
SUPERVISORY BOARD 1
SUPERVISORY BOARD 2
4. Secure the cables using provided cable ties.
To Next Page
