Rath 2500-12SPRVSR User Manual

Page 5
9. Mount swing-mount bracket to wall using appropriate fasteners (skip this step if mounting
2500 Supervisor Board in 19” rack).

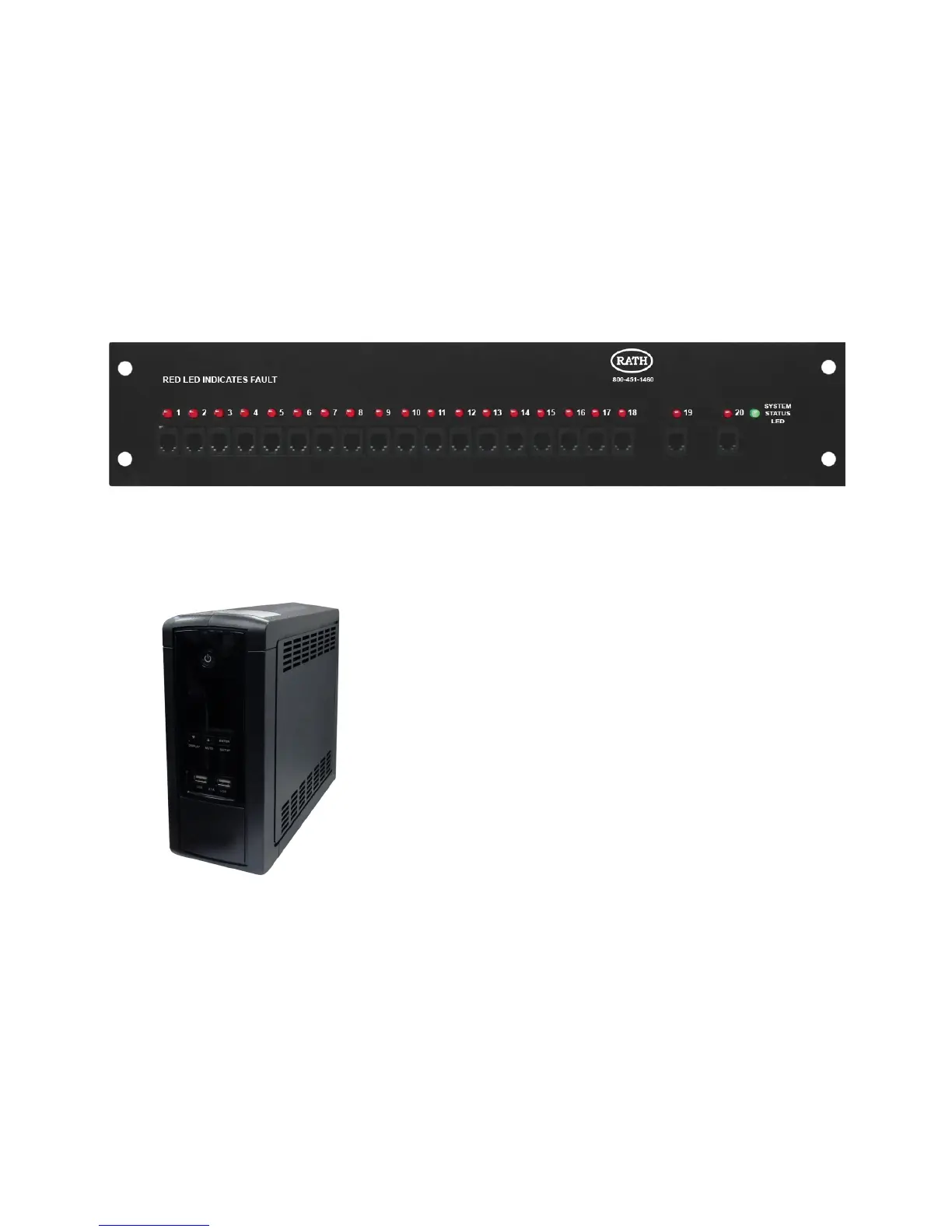

10. Attach 2500 Supervisor Board to mount using screws removed in step 2.
11. Plug feeder cables into Distribution Module.
12. Plug Base Station phone, phones, and telephone lines into appropriate RJ11 ports 1-20 on front
of 2500 Supervisor Board.
Note: Maximum distance from Supervisor Board to stations are 1000’ to Command Center
and 4000’ to endpoints.
13. Plug power transformer into UPS.
14. Ensure LEDs associated with Supervisor Ports 1-20 are out and green status light is lit.
