Rath 2500-28RC - 2100-956 SSRC2, 2400-805 SSPC2 Mounting

2100-956SSRC2, 2400-805SSPC2
Page 8
SWITCH
1 2 3
4 5 6
7 8 9
0 #
*
LED
Enter
Record
Play/Pause
Stop
www.rathmicrotech.com
Rath Microtech 800-451-1460
RJ11C
PHONE JACK
24V AC/DC
J3
BATTERY
BACKUP
24V
AC/DC
SPADE PHONE
CONNECTION

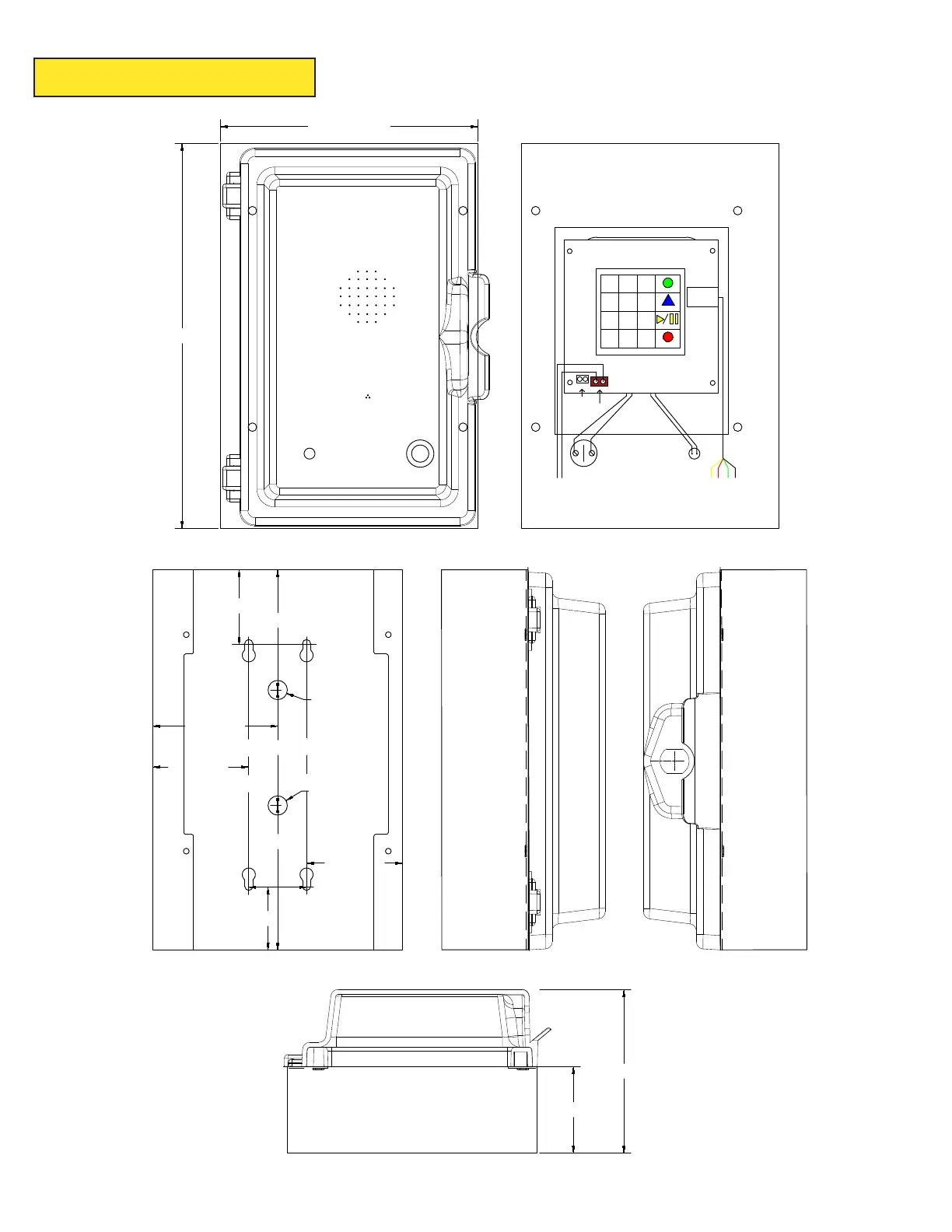

4.25” [107.95]
3.00” [76.2]
CLEAR PROTECTIVE COVER
BACK BOX BOTTOM
BACK BOX RIGHT SIDEBACK BOX LEFT SIDEBACK BOX FRONT
BACKCOVER FRONT
6.67” [169.42]
10.045” [255.14]
1.94” [49.21]
3.13” [79.38]
3.25” [82.55]
2.50” [63.50]
3.00” [76.20]
3.75” [95.25]
1.63” [41.28]
1.50” [38.10]
2.50” [63.50]
ø0.50” [ø12.70]
ø0.50” [ø12.70]
