Call Box Mounting
Call Boxes should be mounted so that the push button is 48” from the oor.
Flush Mount Call Boxes:
2100-958NSR, 2400-808NSP, 2100-958NMBR, 2400-808NMP, SUBPNBX (back box only)
Page 3
A AA
1.00” [25.40]
1.00” [25.40]
ø0.19” [ø4.85]
5.25” [133.35]
7.50” [190.50]
9.50” [241.30]
6.00” [152.40]
3.00” [76.20]
5.50” [139.70]
2.25” [57.15]
8.00” [203.20]
1.50” [38.10]
5.50” [139.70]
1.20” [30.48]
0.59” [14.91]
0.89” [22.65]
R0.44” [R11.11]
1/8” HEX

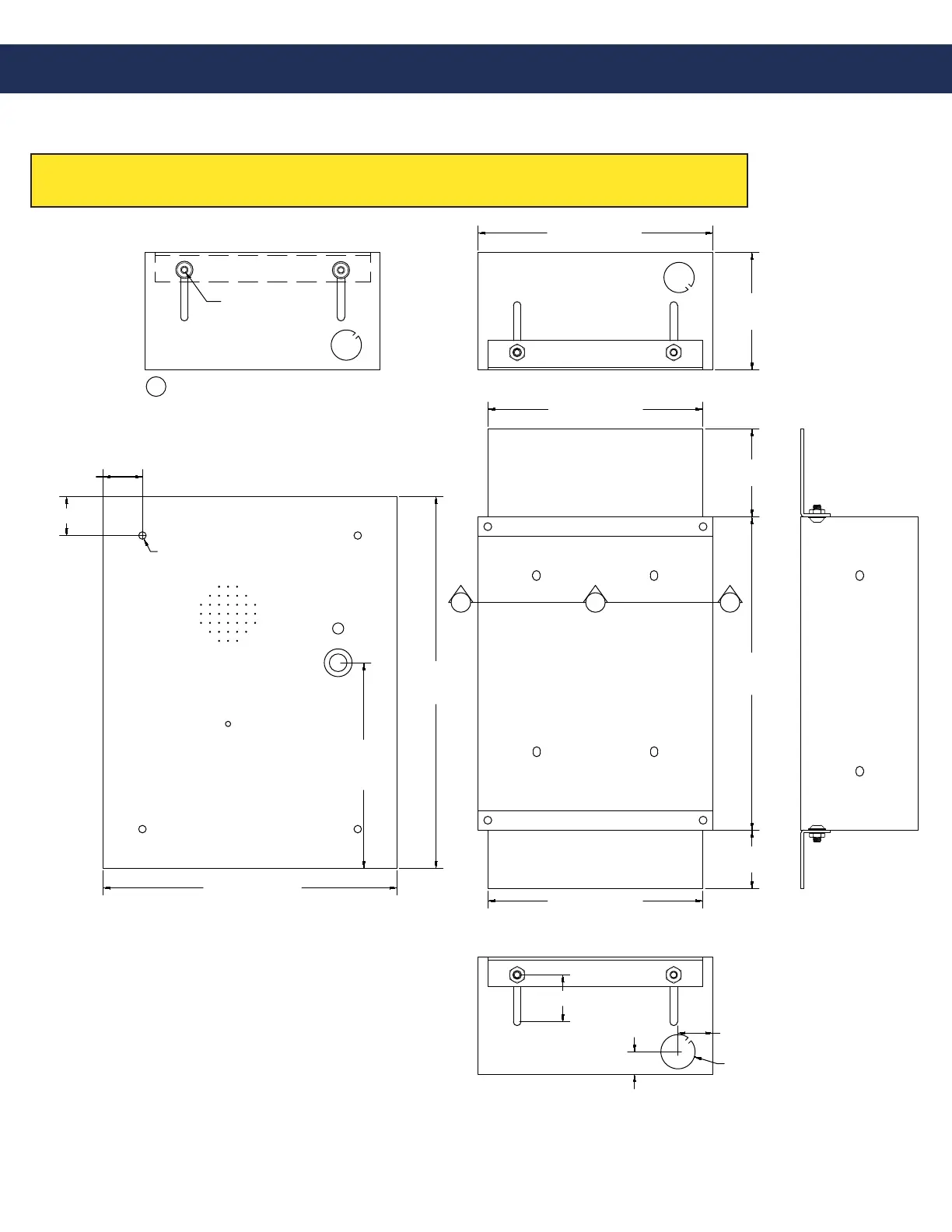

INTERIOR ELEVATION
A BACK BOX TOP
BACK BOX FRONT
COVER FRONT
BACK BOX BOTTOM
BACK BOX SIDE
