2.2 Fitting the control cable
- On the rear of the UltraVent® there is a power
box; open it by loosing the screws. pic. 9
- For connection run cables through correspon-
ding cable glands into power box.

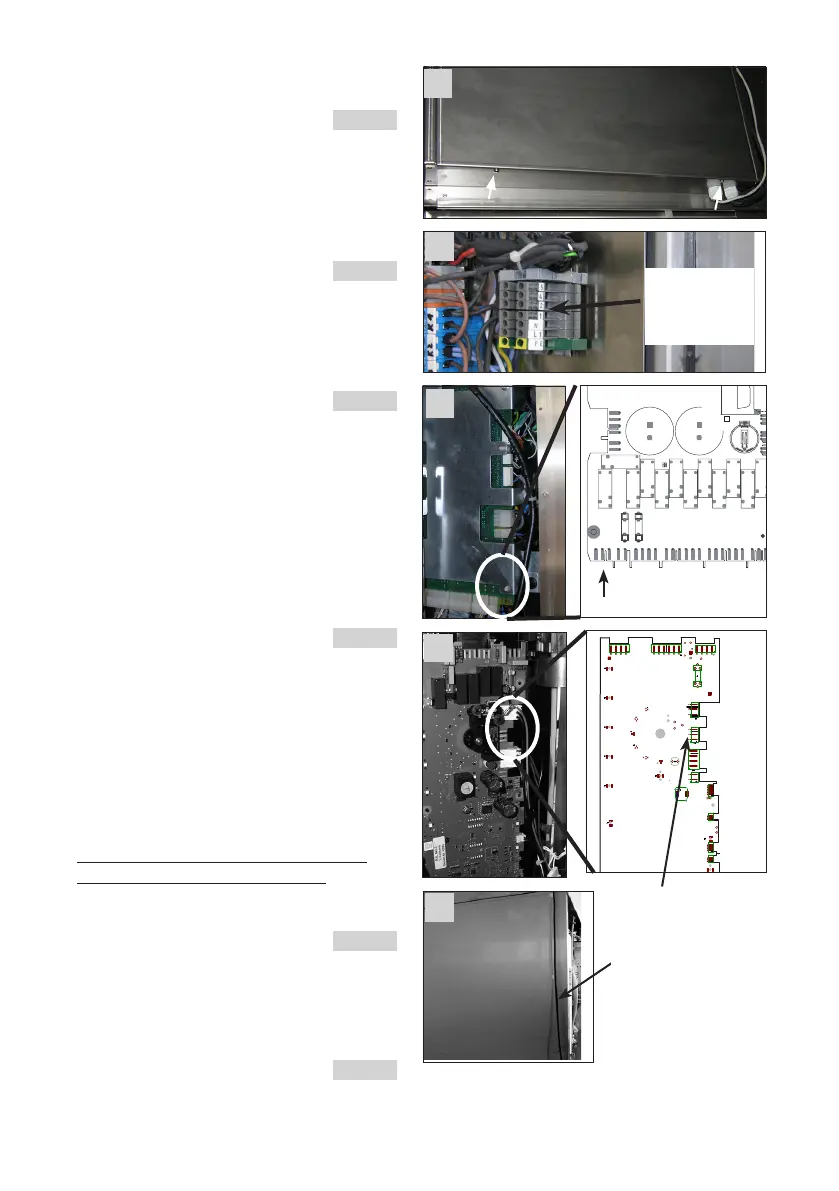

- The control cable W26 (pic. 1 item 3) is included
in the Ultravent kit. Connect this cable as
follows: pic. 10
- on SCC_WE-units: pic. 11
Connect control cable W26 to terminal X23 of the
cpu pcb
- on CM_P-units: pic. 12
Connect the control cable W 26 to X23 of the
operator pcb
- Run the cable back out through the cable gland
and up the back of the Combi-Steamer to the
power box of the Ultravent®.
- The control cable has a green, a white and
brown wire.
- For the connection of the Ultravent only the
green and the white wire are needed.
Connect the green wire to terminal 1 and the
white wire to terminal 2 of the power box
Ultravent pic 9
Insulate the brown wire
- The cable can be affixed to the back of the appli-
ance with the self-adhesive cable clips supplied
(pic1 item 4) pic. 13
