UV-USA_CAN SCC_WE, CM_P V06, 11/2016
9

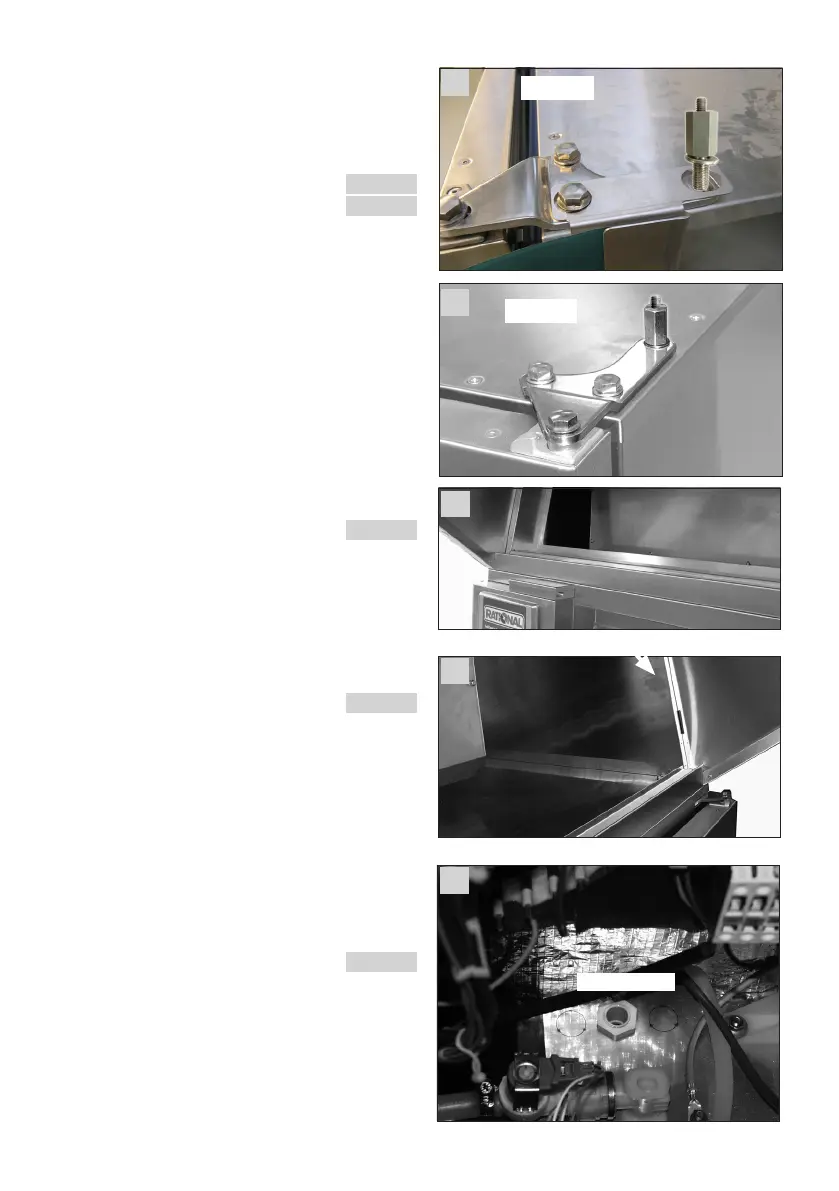

For all units:
put stud (item 10) and washer. pic. 5
pic. 5a
- Carefully place Ultravent onto unit pic. 6
- Remove fat and fiber media filter
- Fasten UV/EH with nut and washer (pic1 item11)
to previous installed stud. pic. 7
- Open left side panel
- There are knock outs in the bottom panel of the
electric compartment. Break one of these out and
fix the cable gland (pic. 1 Item 2) into it
pic. 8
8
Cable gland
7
6
5a
61 / 101
5
62 / 102
