UV-USA_CAN SCC_WE, CM_P V06, 03/2016
8

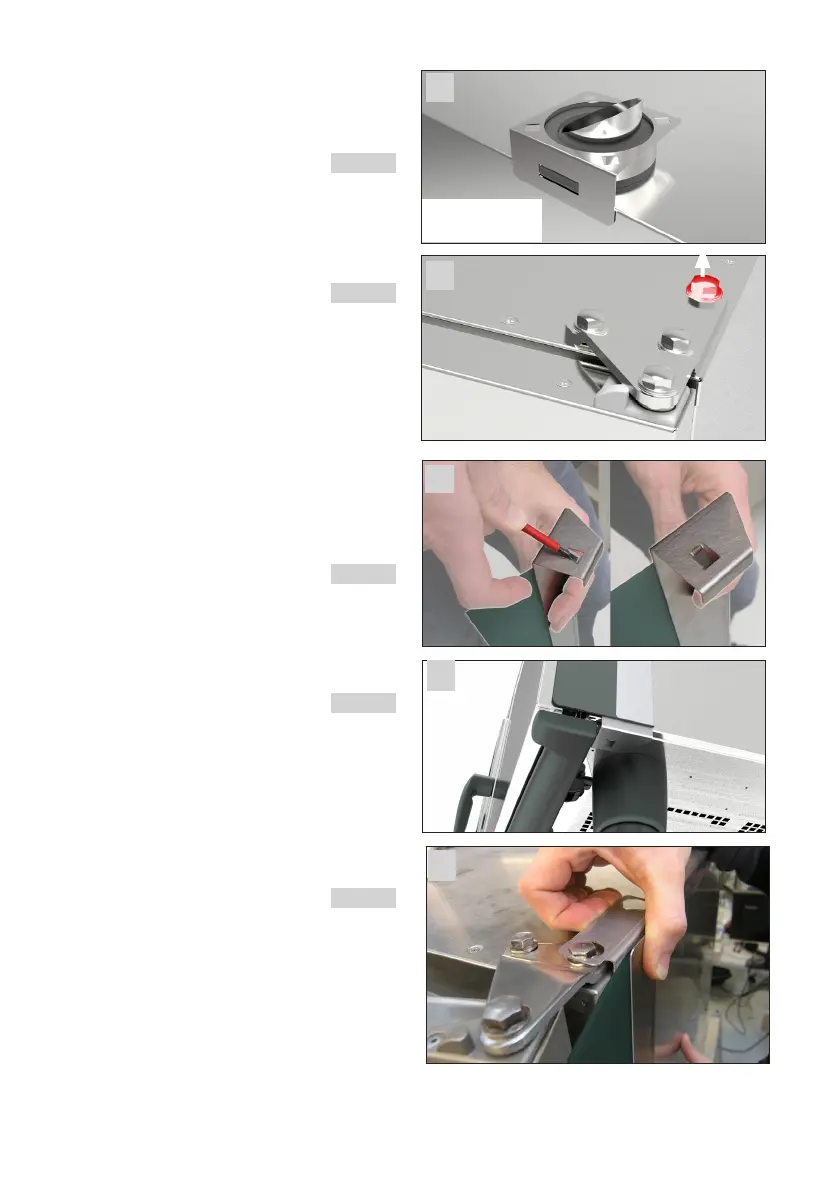

2. Installation of the extractor hood
2.1 Fitting the hood on the combi-steamer:
- Disconnect combi steamer from mains
- Put the gasket (pic 1. item 1) over the unit’s vent
pipe (observe installation direction) pic. 3
- Check door of the unit for correct adjustment
- Remove rear screw of the top door holding
plate pic. 3a
The following steps must only be followed in case
of a 62 or 102 unit:
Press the flap in the lower part of metal strip (pic 2a
item 15 or 16) back pic. 4
put lower part of metal strip to bottom door holding
plate pic. 4a
put upper part of metal strip over top door holding
plate pic. 4b
4
4b
4a
3
Gasket adapter
vent pipe (item 1)
3a
