11
1. Material&Dimension
1) Material
Caser and Cover and Press button: ABS,
LCD window: PMMA

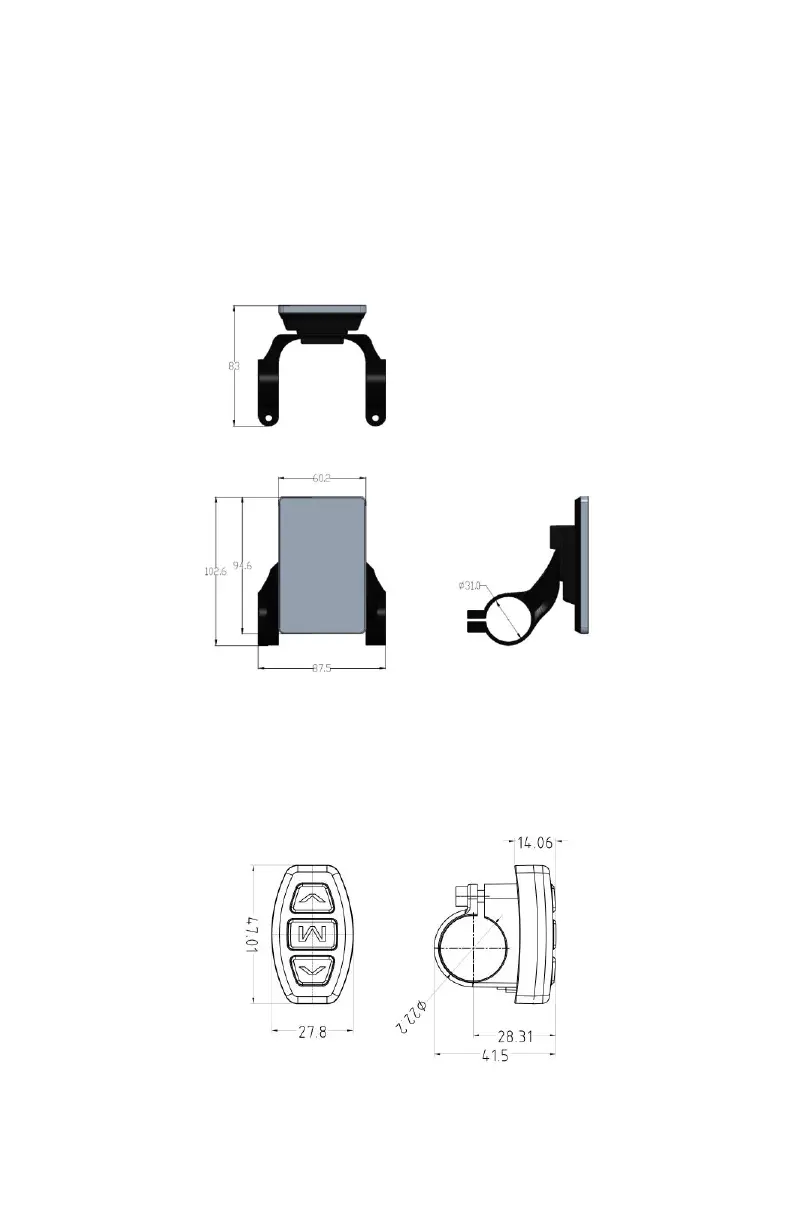

2) Outside and mounting dimensions(mm)
3) Press button outside and mounting dimensions(mm)
4)Installation
●Install the display in the middle of handlebar, then adjust
to suitable angle, install the press button to left side of
handlebar.
