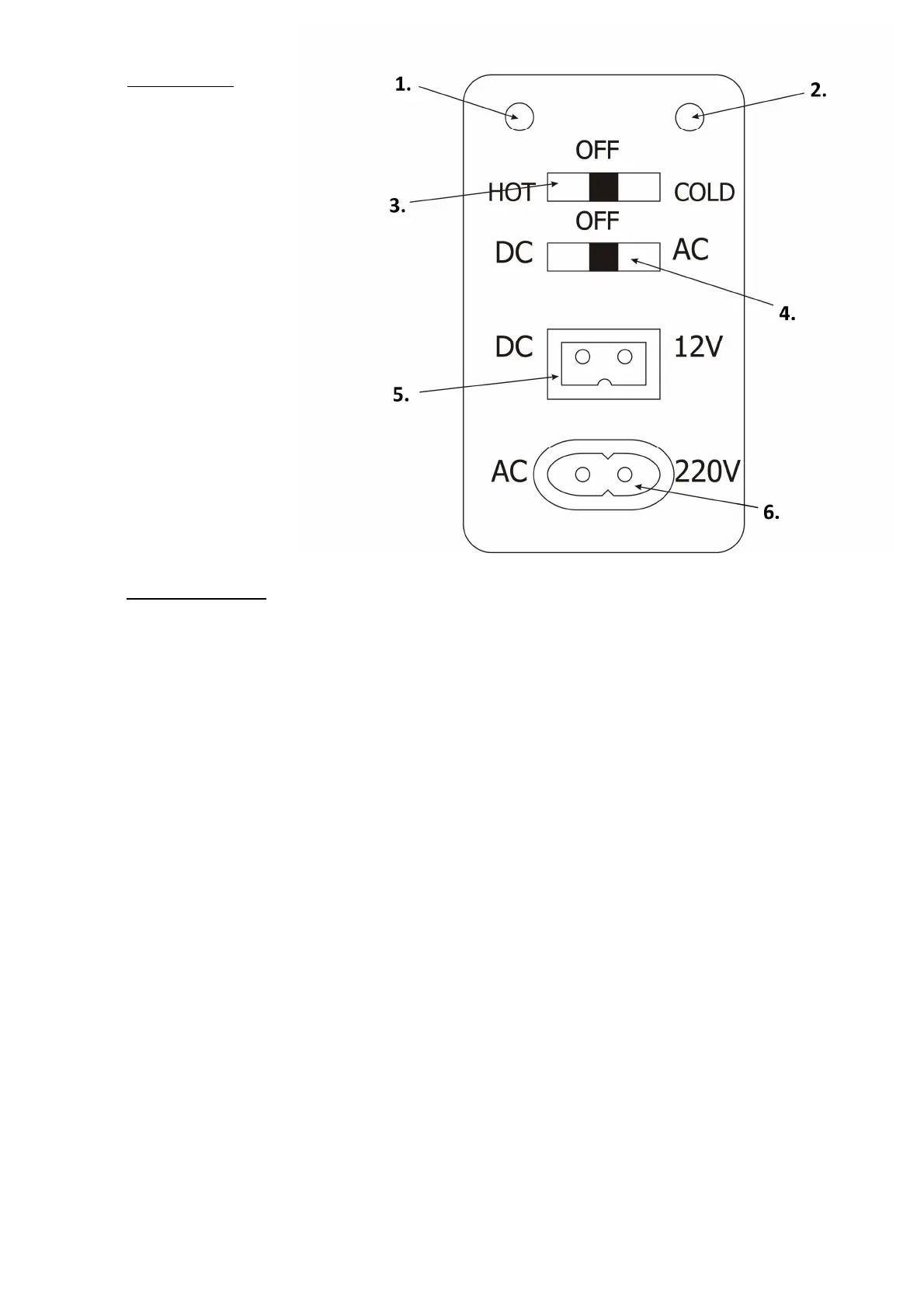

A. CONTROL PANEL
1. Cooling indicator
2. Heating indicator
3. Function switch
4. Power switch
5. Power port 12V (DC)
6. Power port 220-240V, 50Hz (AC)
NOTICE!
Depending on the fridge model, the control panels can differ.
B. POWER CONNECTION
ATTENTION!
CS-20S; CS-24S model can be powered ONLY from the vehicle lighter port (12V - DC)!
BEFORE CONNECTING:
1. Check if the FUNCTION SWITCH is in the "OFF" position
2. Check if the POWER SWITCH is in the "OFF" position
3. Connect the appropriate power cord, depending on the power source:
a. From the vehicle lighter port 12V to the fridge port marked as "DC 12V"
b. From the mains 220-240V to the fridge port marked as "AC 220V"
4. Put the POWER SWITCH in the position corresponding to the power source:
a. DC - power supply from the vehicle lighter port 12V
b. AC - from the mains 220-240V
5. Insert the plug to the power port
6. Using the FUNCTION SWITCH switch to the selected work mode ("COLD" for cooling and "HOT" for
heating). The selected work position is indicated by a red LED for heating or by a green LED for cooling
The device can be switched off any time by putting the POWER SWITCH or FUNCTION SWITCH in the "OFF"
position.
ATTENTION!
• Do not connect two power cables at the same time!
• Changing the power supply type with a switch during the device operation may damage the device
and render the guarantee void.
