CALIBRATE ISO RAVEN STEERING CONTROLLER | CR7 AUTOSTEERING | RAVEN EUROPE GENERIC
PAGE 12/24 | Calibration manual | 016-8000-015EN | Rev. A

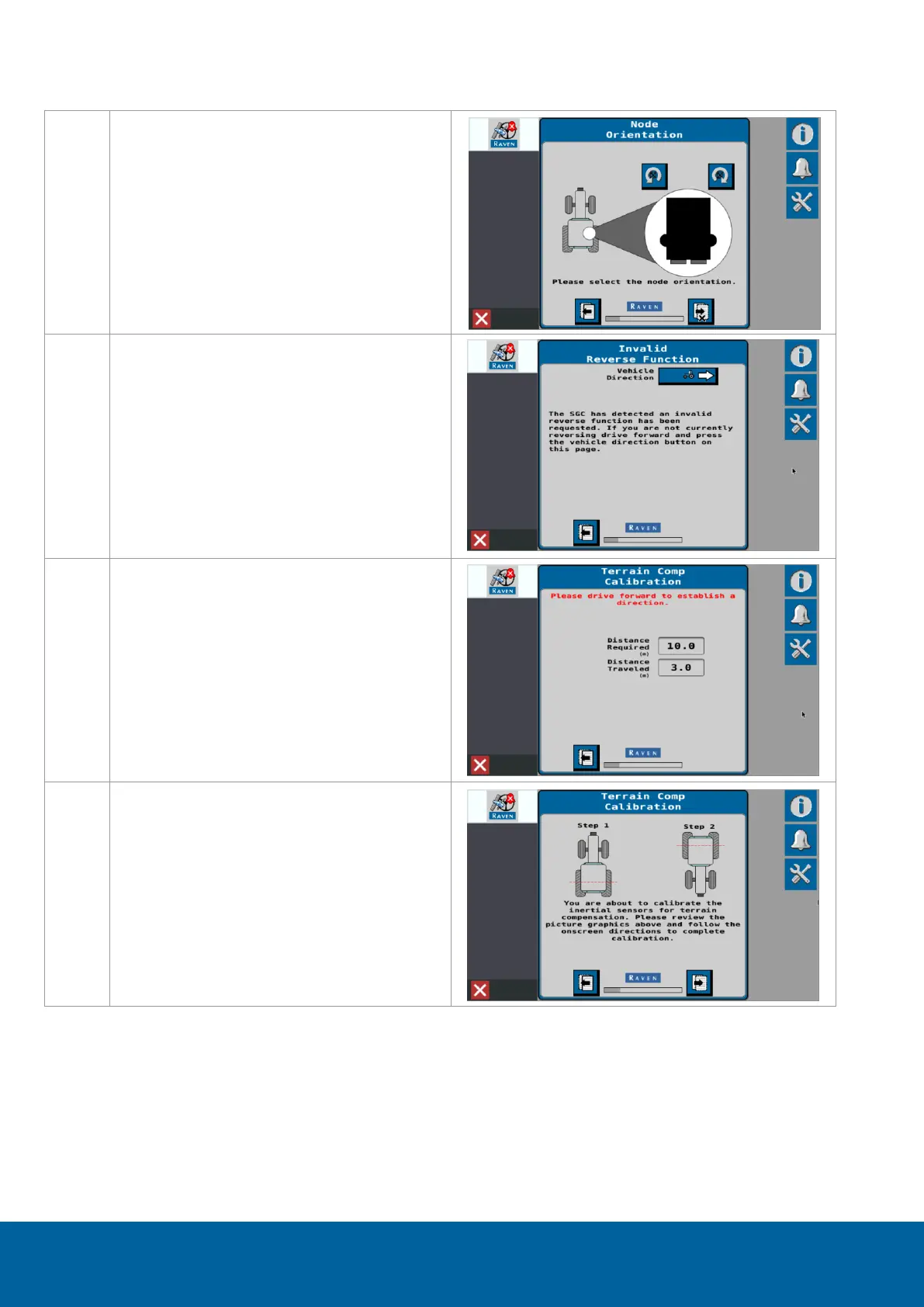

The ISO Raven Steering Controller (module
next to the seat) is now being calibrated.
First step is to tell the system how the
module is mounted. It needs to be flat (see
installation manual), with the sticker to the
upside. In this calibration, tell which way the
connectors are pointed (in this figure, they
are pointing to the backside of the tractor, as
preferred). Press next step.
Drive forward. The calibration goes
automatically to the next step. If it stays in
this screen, press on the button next to
Vehicle Direction. Now the calibration goes
to the next step automatically.
Drive 10m forward. After the Distance
traveled is up to 10m, the calibration
continues automatically to the next step.
After 10m is traveled, the system continues
to the Terrain Compensation Calibration.
Nothing happens until next step is pressed.
Press next step.
