Manual No. 016-0159-925 Rev
. F
25
Installation

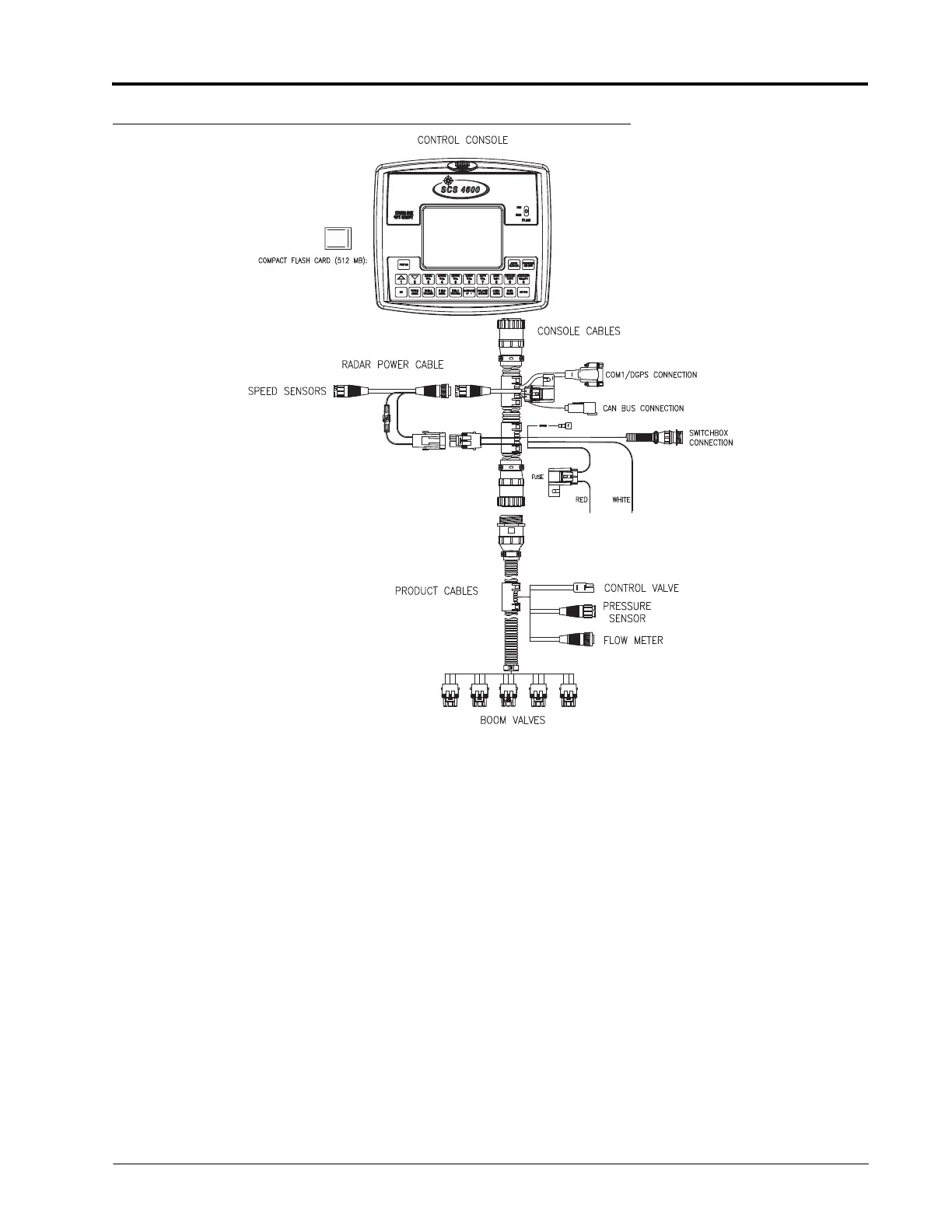

FIGURE 4.
SCS 4600 Console Connections
Note:
The SCS 4600 with part numbe
r 063-0172-343 featur
es a compact f
lash card slo
t for applica
tion
data transfer to a home or offi
ce computer
. The data
logging feature will
only be used when
connecting to an optional extern
al cons
ole for logging or mapping applications.
32
34
Table of Contents
Default Chapter
3
Table of Contents
3
Calibration Reference Sheet
7
Edit Mode
7
Unit Definitions and Conversions
8
Unit of Measure Definitions
8
Unit of Measure Conversions
8
Chapter 1 Important Safety Information
9
Safety Information
9
Hydraulic Safety
10
Electrical Safety
10
Chapter 2 Introduction
11
Introduction
11
Sprayer & Spreader Control Systems
11
System Components
12
SCS 4000/5000 Series Console Feature Overview
13
Care and Use
15
Technical Specifications
15
Updates
16
CAN Networking and CAN Data Menu
17
Chapter 3 CAN Networking and CAN Data Menu
19
Detecting CAN Nodes
25
Programming Canbus Nodes
26
CAN Troubleshooting
26
CAN Node Off-Line Errors
26
Chapter 4 Installation
29
Mount the SCS Console
30
Cable and Power Connections
30
Installation
29
Install the SCS Console
29
Chapter 5 Initial Startup & Console Programming
35
Initial Calibration Sequence
35
Reprogramming Initial Settings
39
Console Programming
40
Edit Mode
40
Calibration Keys
40
Function Keys
41
Self Test Mode
42
Decimal Shift
43
Chapter 6 Data Menu
45
Serial Submenu
45
Additional Serial Options
46
Scs 4000/4070/5000
46
Scs 4400/4600
46
Product Submenu
47
Page
49
Page
51
Console Submenu
53
CAN Submenu
54
Calibration Summary
55
Data Logger (4400 and 4600 Only)
55
Setup
55
SCS Alarm Definitions
57
Chapter 7 Console Calibration
59
Wheel Drive Speed Sensor
60
Speedometer Drive Speed Sensor
61
Liquid Applications
62
Boom Cal
62
Meter Cal
62
Valve Cal
63
Rate Cal
64
SCS Multi-Tier Features
64
Dual Loop Control Mode Settings
65
Flow Cal
65
System (Pressure) Gain
66
Granular Applications
66
Boom Cal
66
Spreader Constant
66
Verification of Spreader Constant
67
Product Density
67
Rate Cal
68
Spinner RPM
68
Additional Calibration Data
68
Entering Tank Volume
68
Zero Out" Display Information
68
Console Calibration
59
Speed Cal
59
Job Setup & Field Testing
69
Liquid Applications
69
Initial Job Setup
69
Field Test
70
Preventive Maintenance
70
Granular Applications
71
Initial Job Setup
71
Field Test
71
Preventive Maintenance
71
Chapter 8 Job Setup & Field Testing
71
Chapter 10 Testing Extension Cables
74
Chapter 9 Troubleshooting
75
Testing Extension Cables
77
Speed Sensor Cables
77
Testing the Speed Sensor Cable
77
Flow Meter/Encoder Cables
78
Testing the Flow Meter Cable
78
Connecting an SCS Console to a Raven Field Computer
79
Firmware Requirements
79
Operation Guidelines
79
Field Computer Set up
80
Viper Pro
80
Envizio Pro or Envizio Pro II
80
Chapter 11 Connecting an SCS Console to a Raven Field Computer
81
Cruizer or Cruizer II
82
Chapter 12 Flow Meter Maintenance & Adjustment Procedure
85
Chapter 13 Ratio Rate Feature
87
Ratio Rate Feature
87
Chapter 14 Remote Switch Option
89
Remote Switch Option
89
SCS 4000/5000 Series Firmware Update Procedure
91
Using a USB to Serial Adapter
91
USB to Serial Adapter Preparation
91
Serial Console Updater Utility
93
Chapter 15 SCS 4000/5000 Series Firmware Update Procedure
93
Hyperterminal
95
Serial Interface & Data String Formats
97
Remote Computer to SCS Console
97
Rate Change Request
97
SCS 4000/4070/5000 Console to Remote Computer
98
SCS 4400/4600 Console to Remote Computer
99
Chapter 16 Serial Interface & Data String Formats
99
