The LED indicator should be flashing while the pump is running. If the indicator light is not flashing, turn the
sensor body a few degrees until the LED flashes.
NOTE: The line on the sensor body should not be more than 45° off of vertical to ensure maximum
sensitivity.
Once the sensor assembly is properly set and the LED indicator is flashing, tighten the sensor lock nut to secure
the sensor body to the bracket.
CHECK VALVE ASSEMBLIES

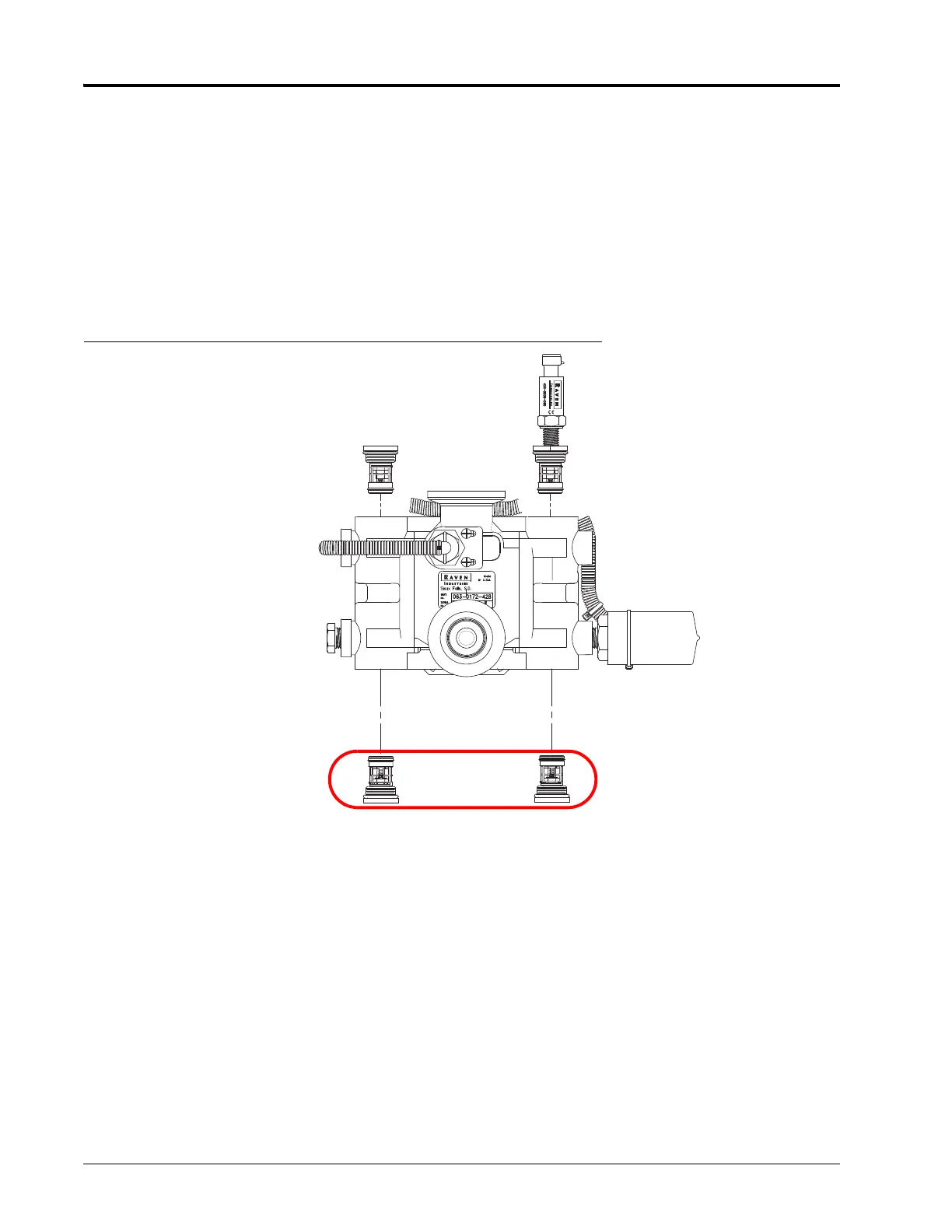

FIGURE 6. Injection Pump Valve Cartridge Replacement Parts
Intake Valves
(P/N 063-0173-677)
Discharge Valve with Transducer Port
(P/N 063-0173-310)
Discharge Valve
(P/N 063-0172-504)
Pump Inlet
Pump
Outlet
