Rawlings Pro Line - Machine Orientation Adjustments; Aiming Adjustments; Twist Angle for Spin Control

12 pages

To Next Page

To Previous Page

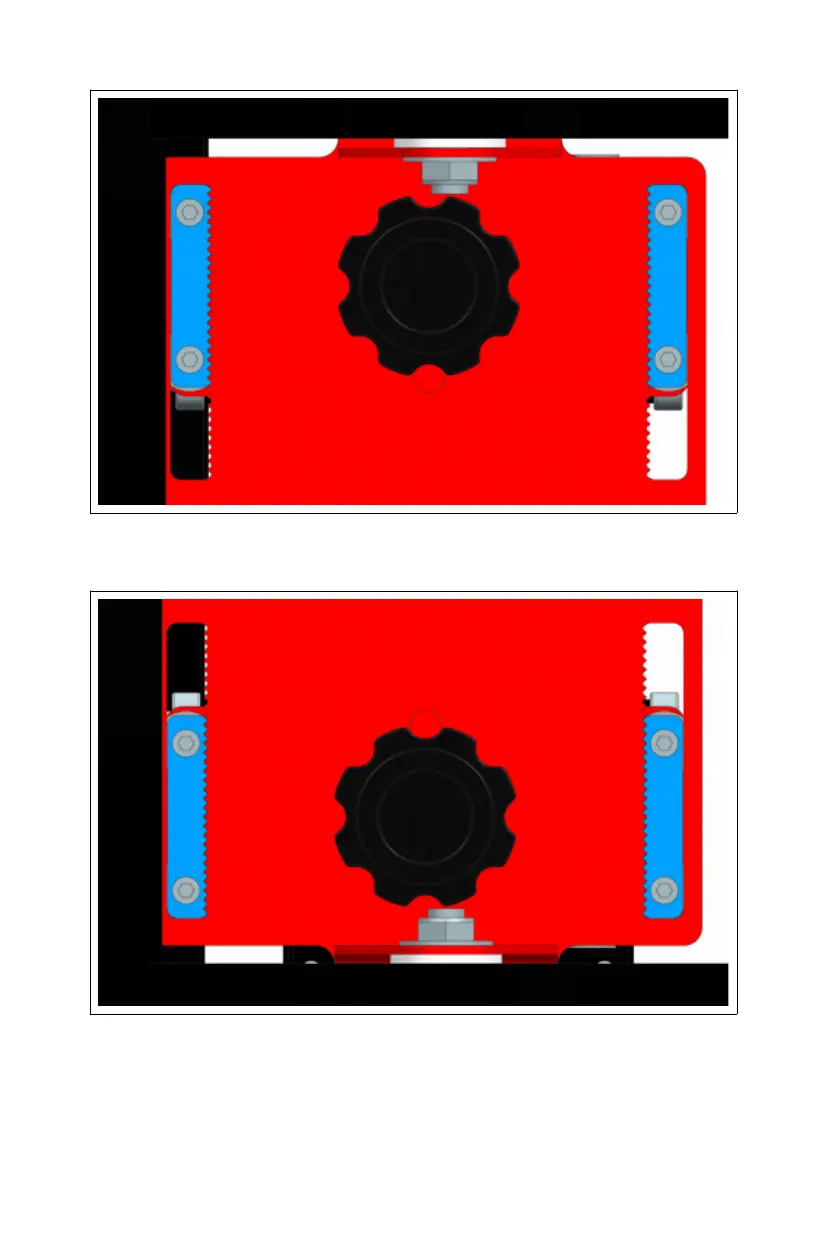

Figure 8: Typical top motor / wheel positioning for real softballs. Profiled

blocks are located at top position

Figure 9: Typical bottom motor / wheel positioning for real softballs.

Profiled blocks are located at bottom position

ADJUSTING MACHINE ORIENTATION The machine is

positioned using 3 different angle adjustments: horizontal, vertical, and

twist. The horizontal and vertical pin joints are used to aim the pitch while
