2.2 ) Control POD
The Control POD is the main power switching and logic control device. The
system settings are saved in non-volatile memory on the POD. This means that
even if power is disconnected from the system, the settings are saved and don't
need to be reset.
Reference Function Value (A)
F1 Fan 15A
F2 Window - Left 20A
F3 Horn 20A
F4 Aux 20A
F5 Lights 20A
F6 Unlock 15A
F7 Window - Right 20A
Table 2.2.1: On-Board Fuse Values
F3-G2 System Manual - Rev 7 Page 6 of 33

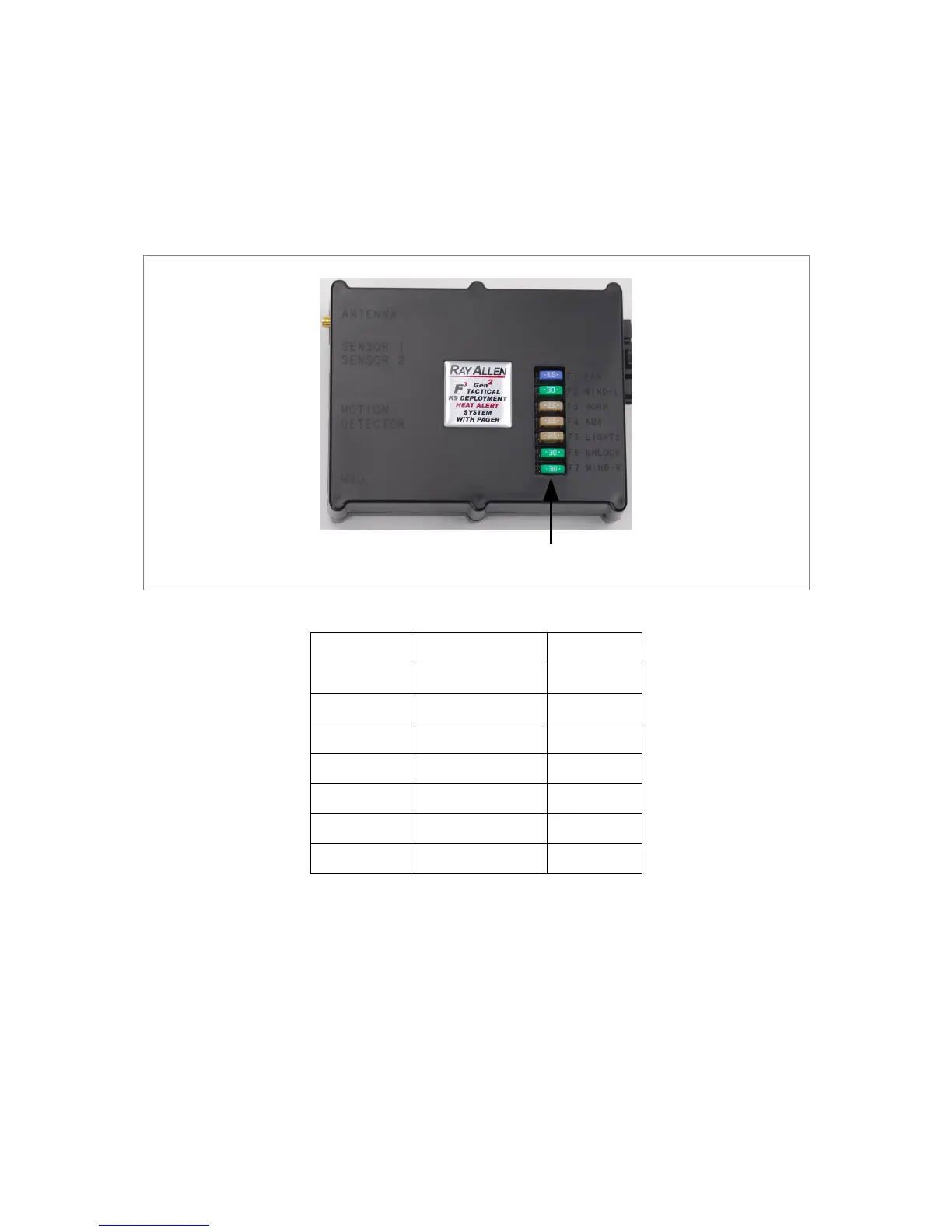

Drawing 2.2.1: Control POD Top
Antenna Jack
Motion Detector Plug
Temperature
Sensor Plugs
HUD Interface Jack
Power Plug
Vehicle Interface Plug
On-Board Fuses
