1. Safety instructions
1. Read this leaflet carefully before commencing to install the SPARTAN unit and
retain it for future use. Installation can only be carried out by suitably qualified
personnel.
2. Check the certification to ensure that the mains supply and the ambient
temperature present is suitable for the unit being installed.
3. If the SPARTAN unit is to be installed in areas of high vibration, please consult
with Raytec.
4. The SPARTAN unit housing is constructed from marine grade aluminium and
toughened glass. The end user must ensure that these materials are suitable
for the environment the SPARTAN unit will be installed in; Zone 1 and Zone 2
Hazardous areas.
5. Check certification nameplate on side of floodlight to ascertain type of threaded
cable entry on the luminaire. Select suitably certified ATEX/IEC Ex cable glands
and stopper plugs, these must be parallel thread, have a minium of 5 full thread
engagement and be of a medium/fine tolerance to ISO965-1 and ISO965-3. The
cable entry devices selected must maintain the IP rating of the luminaire
6. The incoming mains cable should not exceed a temperature rise of 20°C above
the ambient conditions; select suitable cable.
!

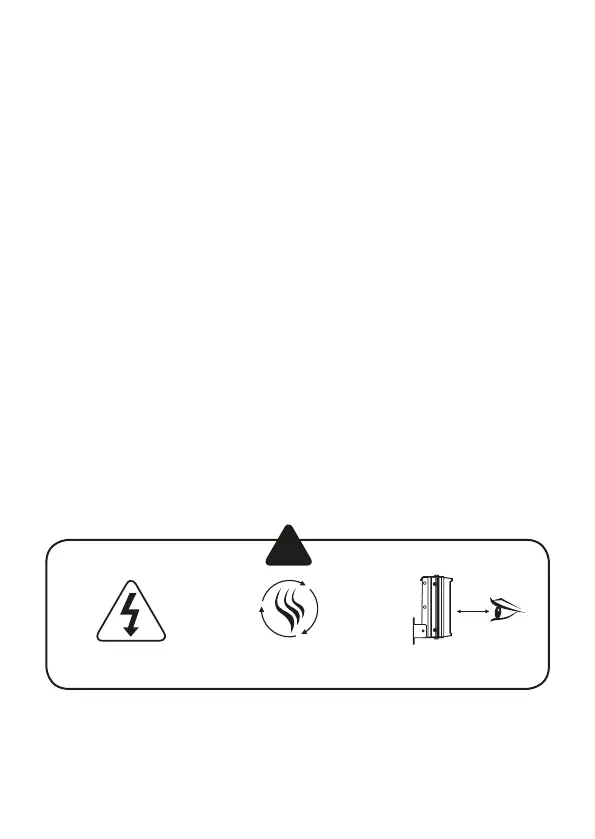

Install in a well
ventilated area
Do not continually
stare at lamp
Isolate mains before
removing cover
1.5m
