Owner manual

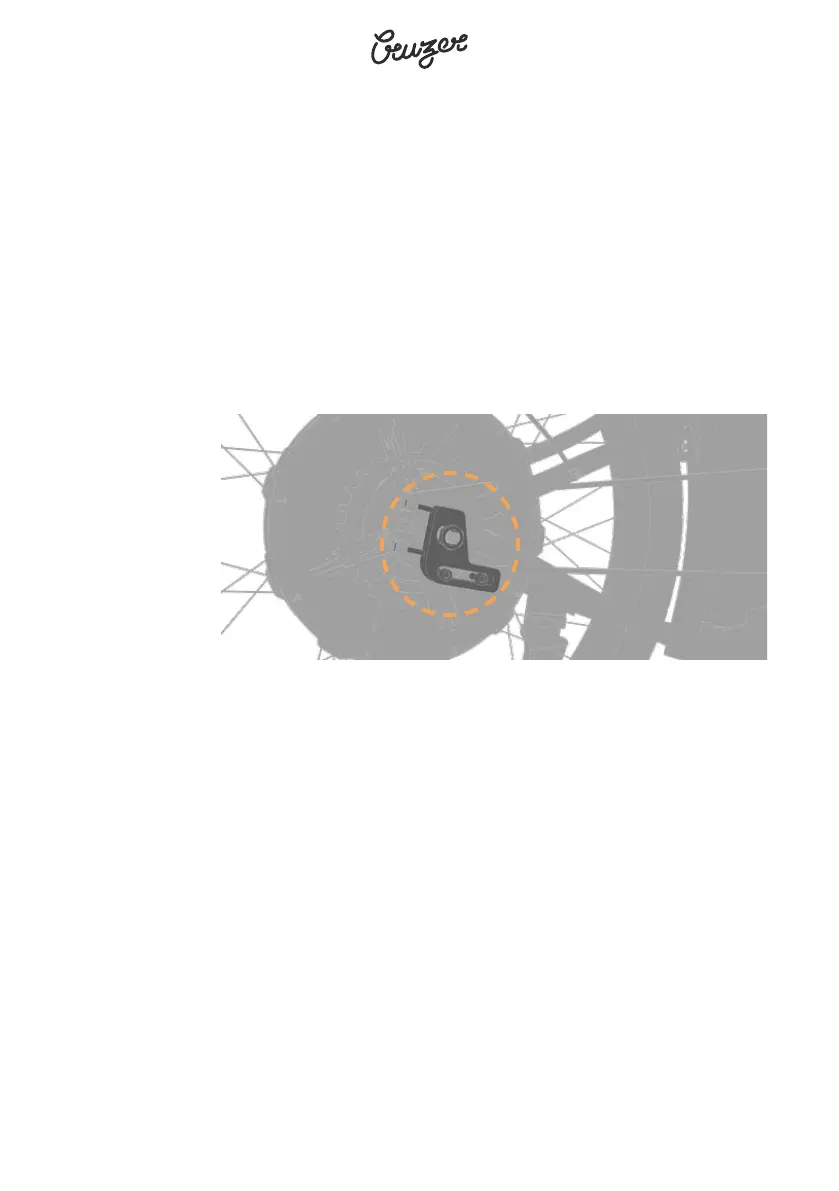

1. Release the chain tensioner. On each side of the rear
wheel, there is a chain tensioner holding the wheel to the
frame. Using an M5 allen key, remove the lateral screws, and
use a 21mm wrench to remove the flange nut of each side.
2. Adjust the tension. Once removed the lateral screws
and nuts, use an M4 allen key to adjust the tension screws
from the back. Tighten or loosen these screws, tensioning or
easing the chain and keeping the wheel in the center. It is
recommended to gradually tighten each side until the best
result is achieved. Do not over-tension the chain.
2. Fix the chain tensioner back. Once the proper tension
is obtained, retighten the side screws and nut.
